Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 4
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 3/3
Efficiency Efficiency 50/120 99.86/99.37
EfficiencyFit Efficiency Fit chi2/ndf: 0.53, # points: 61
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C4
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.53
NumberFitPoints # fit points 61
p0 p0 99.90
p1 p1 3.03e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.37

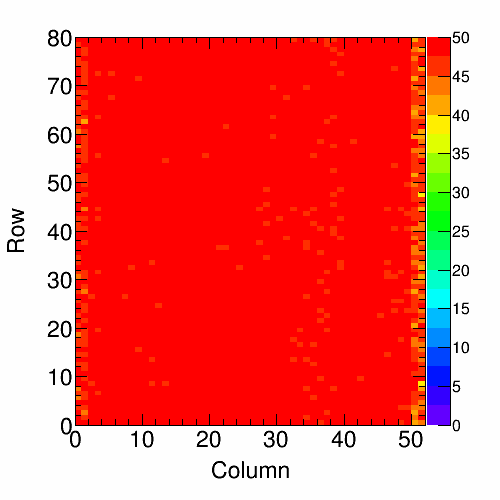

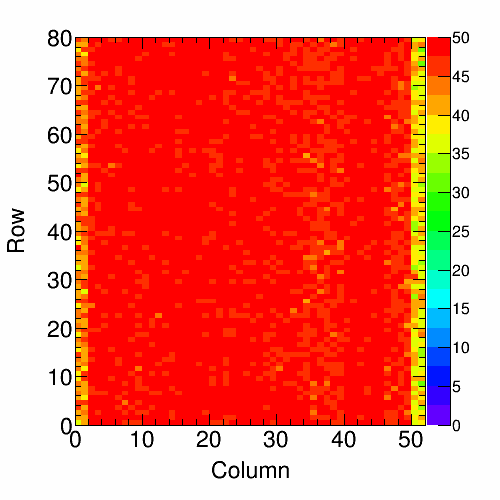

Efficiency Map 50: C4

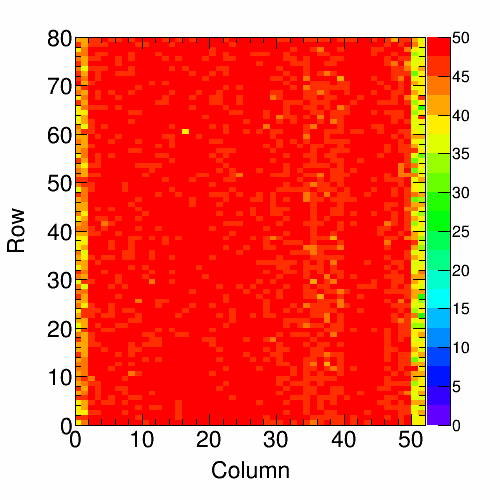

Efficiency Map 100: C4
Efficiency Map 150: C4
Efficiency Map 200: C4
Efficiency Map 250: C4
Efficiency Distr. 50: C4
Plot
N N 4160
mu μ 99.84
sigma σ 0.57
Efficiency Distr. 100: C4
Plot
N N 4160
mu μ 99.33
sigma σ 1.33
Efficiency Distr. 150: C4
Plot
N N 4160
mu μ 98.19
sigma σ 2.67
Efficiency Distr. 200: C4
Plot
N N 4160
mu μ 95.58
sigma σ 5.33
Efficiency Distr. 250: C4
Plot
N N 4160
mu μ 95.23
sigma σ 5.58

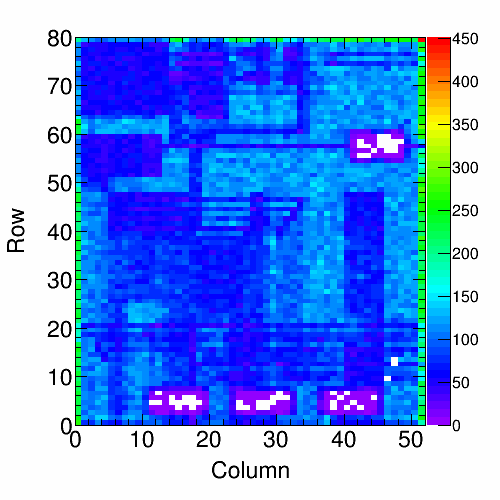

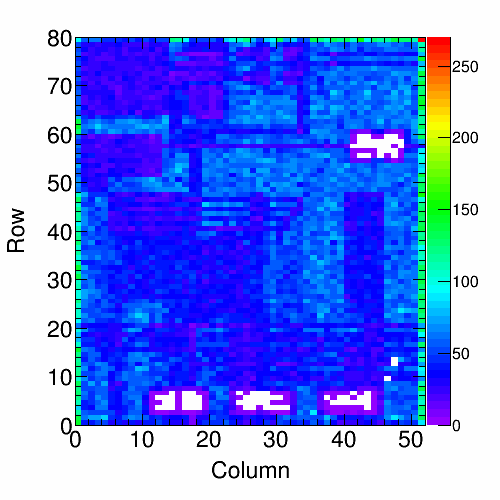

Background Map 50: C4
Plot
RealHitrate Real Hitrate 54.32 MHz/cm2

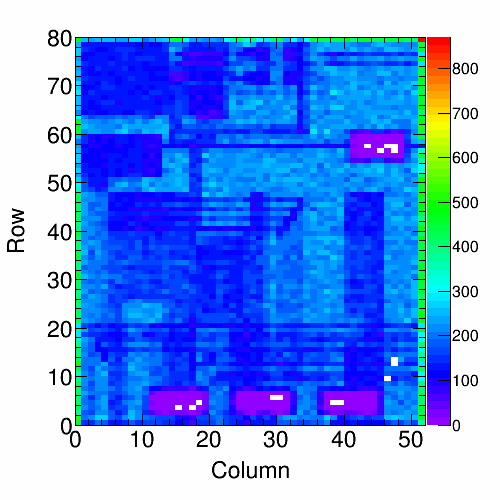

Background Map 100: C4
Plot
RealHitrate Real Hitrate 108.12 MHz/cm2

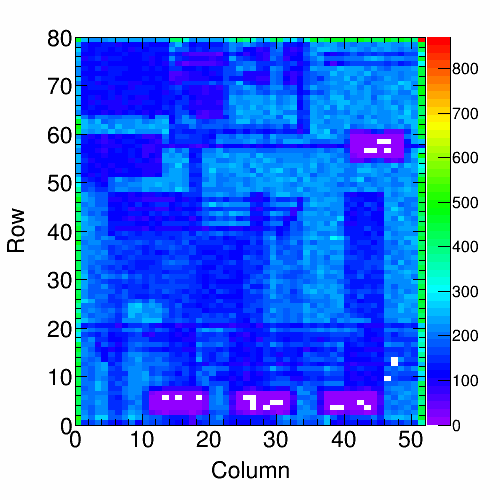

Background Map 150: C4
Plot
RealHitrate Real Hitrate 155.70 MHz/cm2

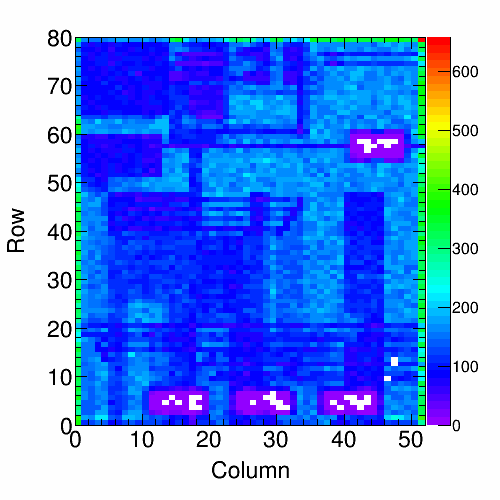

Background Map 200: C4
Plot
RealHitrate Real Hitrate 209.12 MHz/cm2
Background Map 250: C4
Plot
RealHitrate Real Hitrate 214.81 MHz/cm2
Retrim Hot Pix 150: C4
Masked Hot Pixels 150: C4
Masked Hot Pixels 50: C4

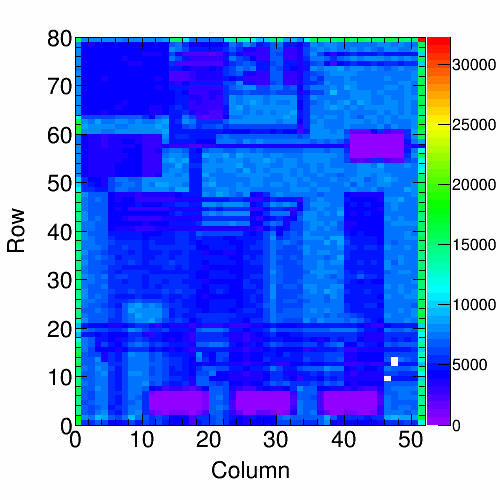

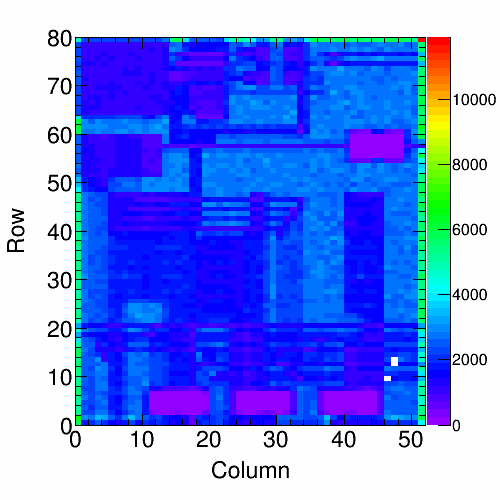

Hit Map 150: C4
Plot
RealHitrate Real Hitrate 151.54 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 3
BB Defects 150: C4
Hit Map 50: C4
Plot
RealHitrate Real Hitrate 52.23 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 3
BB Defects 50: C4
Col. Read. Unif. 150: C4
Plot
N N 21272876
mu μ 471387
sigma σ 138909.46
Col. Read. Unif. 50: C4
Plot
N N 7309344
mu μ 162501
sigma σ 51017.22
Read. Unif. over Time 150: C4
Plot
N N 24512105
mu μ 24835
sigma_th σ_th 157.59
Time unif. distribution 150: C4
Plot
chi2/ndf chi2/ndf 4.52
sigma σ 175.40
sigma_th σ_th 157.66
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C4
Plot
N N 8450074
mu μ 8561
sigma_th σ_th 92.53
Time unif. distribution 50: C4
Plot
chi2/ndf chi2/ndf 1.06
sigma σ 98.18
sigma_th σ_th 92.56
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C4

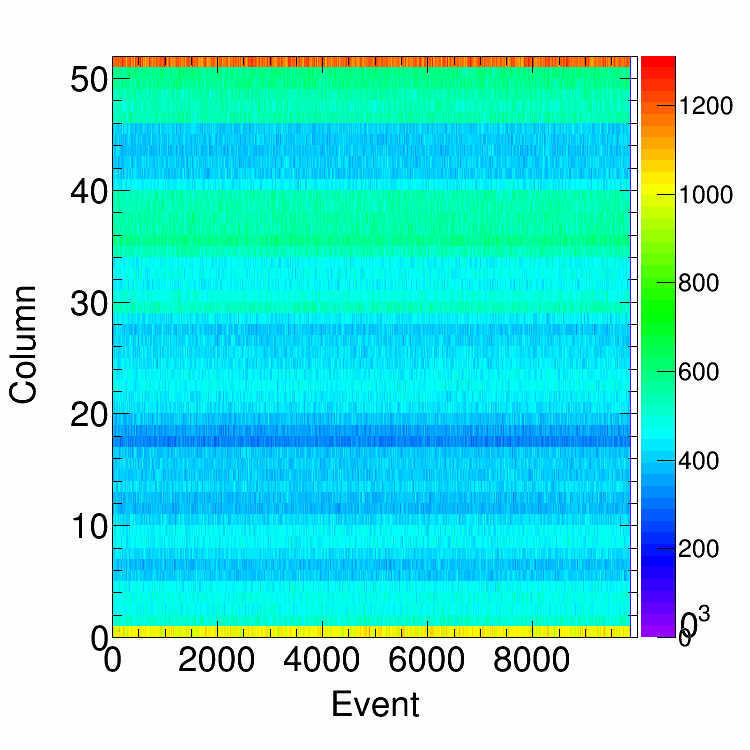

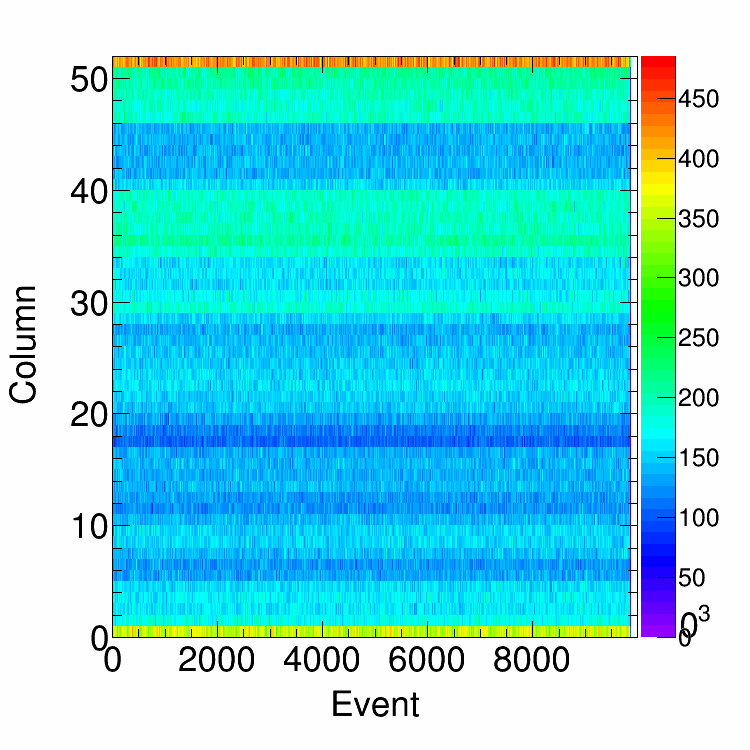

Col. Uniformity per Event: C4 150
Plot
mu μ 26.99
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C4 50
Plot
mu μ 27.40
sigma fit error of μ 2.24
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C4 100
Plot
N N 4160
mu μ 158.39
sigma RMS 16.78
threshold thr 2141.08
fit fit Gaussian
fit_peak μ fit 158.12
fit_sigma σ fit 16.30
MeasuredHitrate Measured hitrate: 108.2
Alive Map: C4
DC Efficiency Distribution: C4
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.36
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C4
