Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 3
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.85/99.01
EfficiencyFit Efficiency Fit chi2/ndf: 0.90, # points: 57
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C3
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.90
NumberFitPoints # fit points 57
p0 p0 99.92
p1 p1 5.23e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.01

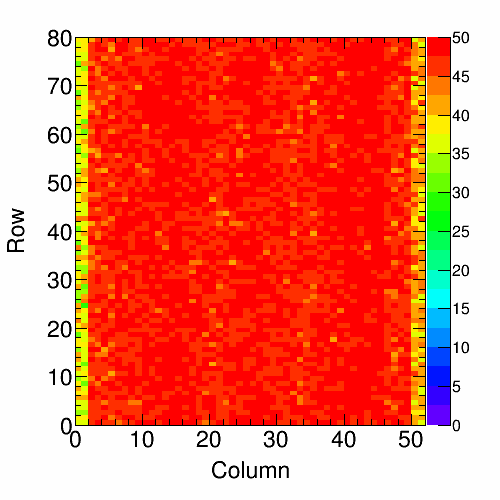

Efficiency Map 50: C3
Efficiency Map 100: C3
Efficiency Map 150: C3
Efficiency Map 200: C3
Efficiency Map 250: C3
Efficiency Distr. 50: C3
Plot
N N 4160
mu μ 99.81
sigma σ 0.62
Efficiency Distr. 100: C3
Plot
N N 4160
mu μ 99.12
sigma σ 1.54
Efficiency Distr. 150: C3
Plot
N N 4160
mu μ 97.50
sigma σ 3.26
Efficiency Distr. 200: C3
Plot
N N 4160
mu μ 94.37
sigma σ 5.77
Efficiency Distr. 250: C3
Plot
N N 4160
mu μ 93.99
sigma σ 5.92

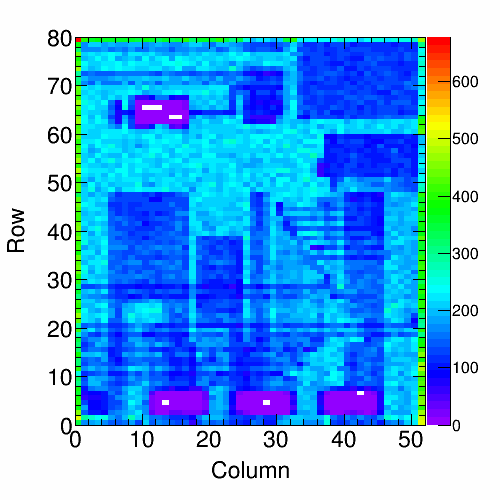

Background Map 50: C3
Plot
RealHitrate Real Hitrate 52.45 MHz/cm2

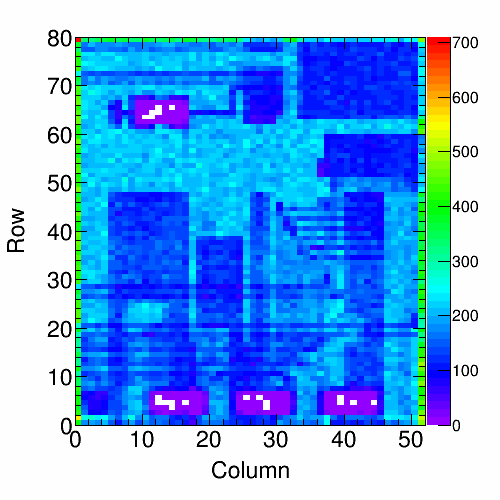

Background Map 100: C3
Plot
RealHitrate Real Hitrate 104.14 MHz/cm2

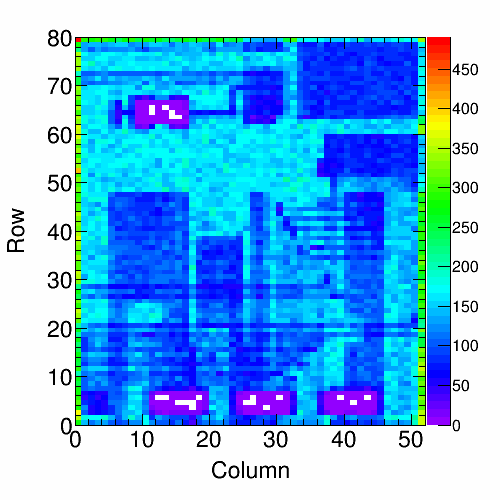

Background Map 150: C3
Plot
RealHitrate Real Hitrate 149.98 MHz/cm2
Background Map 200: C3
Plot
RealHitrate Real Hitrate 201.08 MHz/cm2
Background Map 250: C3
Plot
RealHitrate Real Hitrate 206.10 MHz/cm2

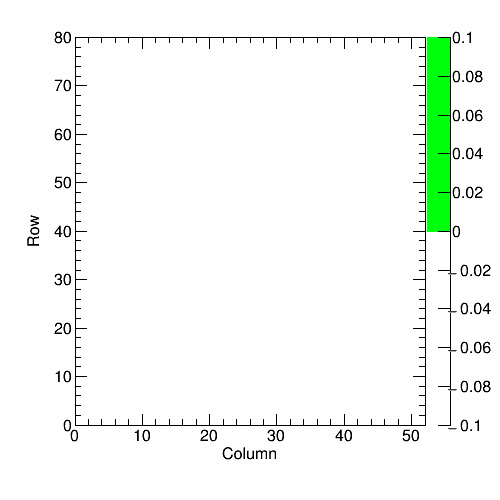

Retrim Hot Pix 150: C3
Masked Hot Pixels 150: C3
Masked Hot Pixels 50: C3

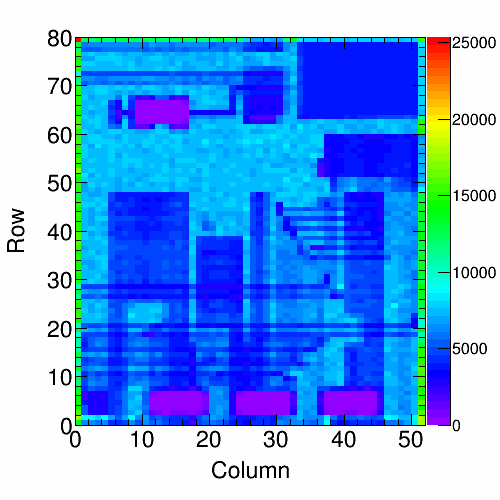

Hit Map 150: C3
Plot
RealHitrate Real Hitrate 146.01 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C3
Hit Map 50: C3
Plot
RealHitrate Real Hitrate 50.65 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C3
Col. Read. Unif. 150: C3
Plot
N N 20578223
mu μ 454202
sigma σ 130307.76
Col. Read. Unif. 50: C3
Plot
N N 7120700
mu μ 157608
sigma σ 48421.36
Read. Unif. over Time 150: C3
Plot
N N 23618490
mu μ 23930
sigma_th σ_th 154.69
Time unif. distribution 150: C3
Plot
chi2/ndf chi2/ndf 5.99
sigma σ 171.59
sigma_th σ_th 154.76
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C3
Plot
N N 8195615
mu μ 8304
sigma_th σ_th 91.12
Time unif. distribution 50: C3
Plot
chi2/ndf chi2/ndf 1.82
sigma σ 94.42
sigma_th σ_th 91.15
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C3

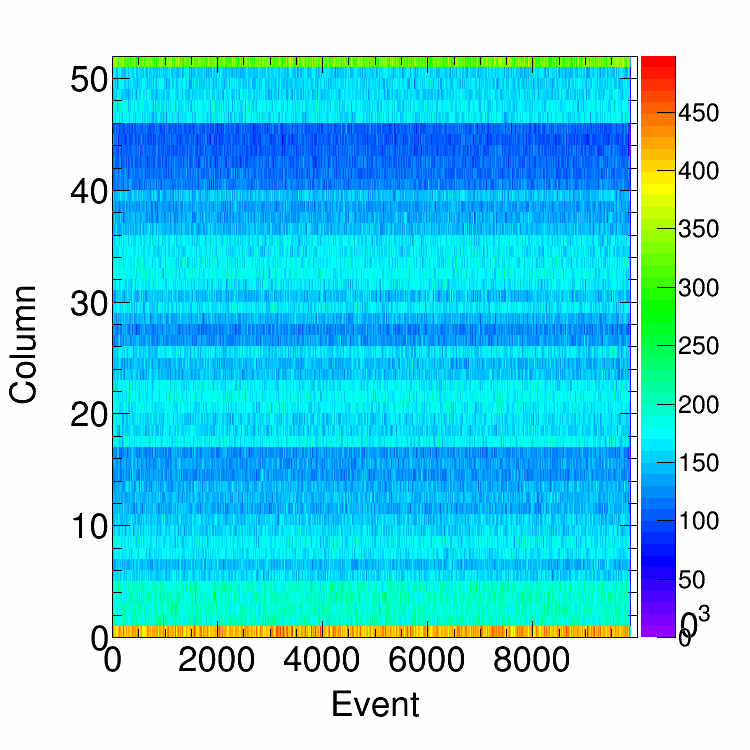

Col. Uniformity per Event: C3 150
Plot
mu μ 24.95
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C3 50
Plot
mu μ 24.59
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C3 100
Plot
N N 4160
mu μ 161.48
sigma RMS 15.36
threshold thr 2139.90
fit fit Gaussian
fit_peak μ fit 161.01
fit_sigma σ fit 14.67
MeasuredHitrate Measured hitrate: 103.8
Alive Map: C3
DC Efficiency Distribution: C3
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.84
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.04
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C3
