Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 2
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.85/99.35
EfficiencyFit Efficiency Fit chi2/ndf: 0.43, # points: 78
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C2
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.43
NumberFitPoints # fit points 78
p0 p0 99.89
p1 p1 3.17e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.35

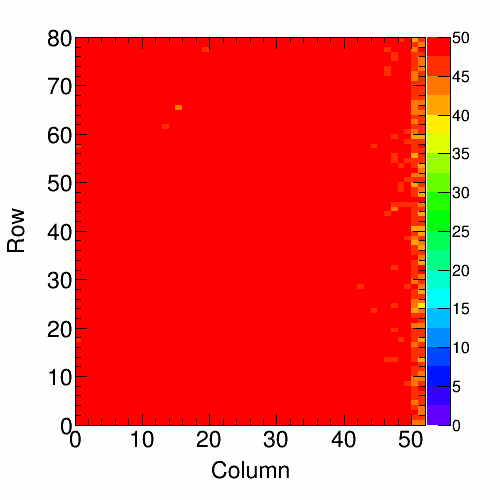

Efficiency Map 50: C2
Efficiency Map 100: C2

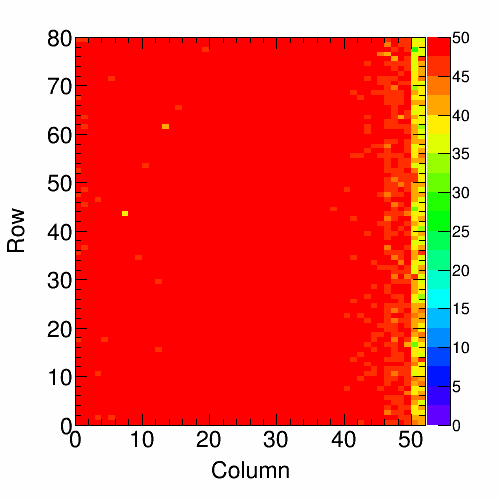

Efficiency Map 150: C2
Efficiency Map 200: C2

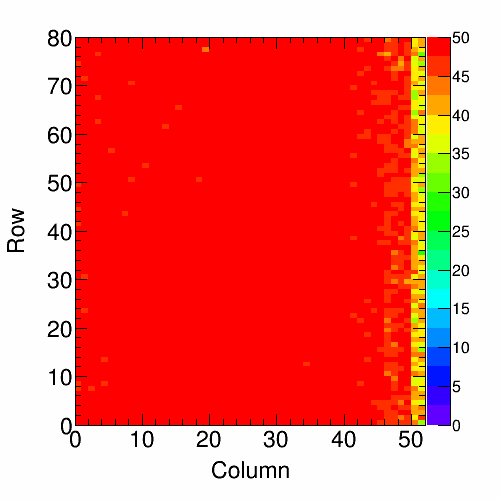

Efficiency Map 250: C2
Efficiency Distr. 50: C2
Plot
N N 4160
mu μ 99.91
sigma σ 0.47
Efficiency Distr. 100: C2
Plot
N N 4160
mu μ 99.69
sigma σ 0.99
Efficiency Distr. 150: C2
Plot
N N 4160
mu μ 99.15
sigma σ 2.28
Efficiency Distr. 200: C2
Plot
N N 4160
mu μ 98.14
sigma σ 4.58
Efficiency Distr. 250: C2
Plot
N N 4160
mu μ 98.01
sigma σ 4.66

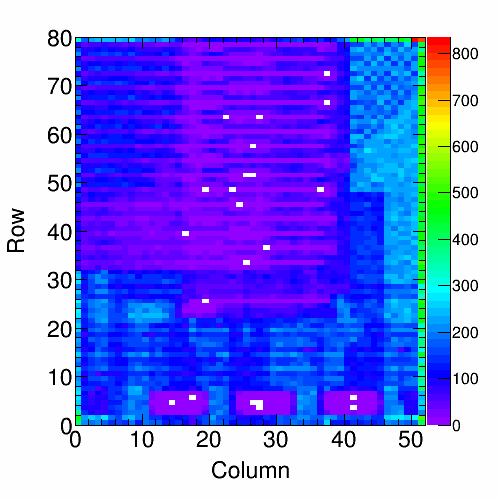

Background Map 50: C2
Plot
RealHitrate Real Hitrate 31.11 MHz/cm2
Background Map 100: C2
Plot
RealHitrate Real Hitrate 63.29 MHz/cm2
Background Map 150: C2
Plot
RealHitrate Real Hitrate 92.33 MHz/cm2
Background Map 200: C2
Plot
RealHitrate Real Hitrate 125.04 MHz/cm2

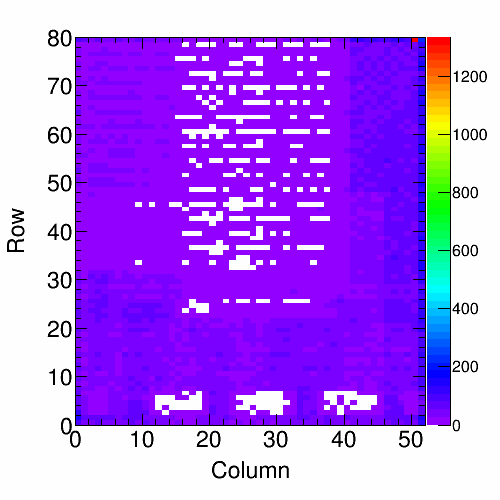

Background Map 250: C2
Plot
RealHitrate Real Hitrate 130.18 MHz/cm2

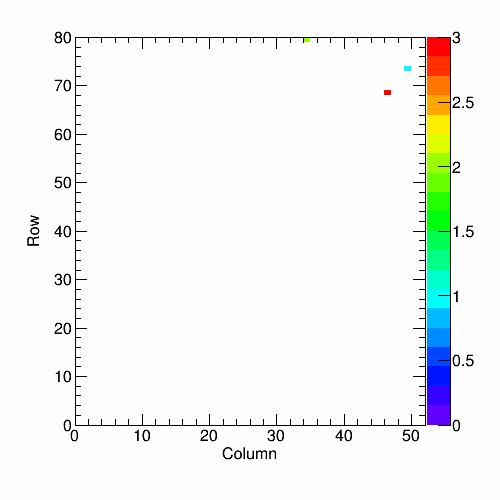

Retrim Hot Pix 150: C2
Masked Hot Pixels 150: C2
Masked Hot Pixels 50: C2

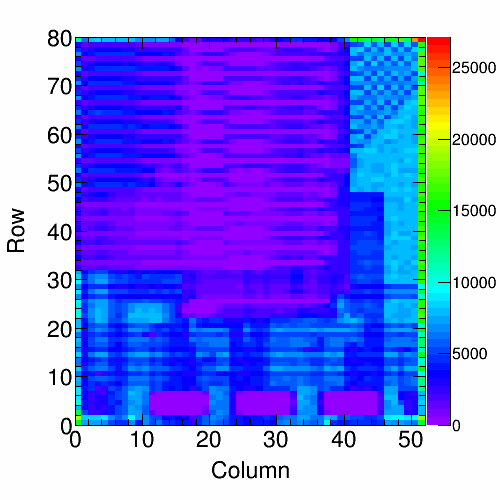

Hit Map 150: C2
Plot
RealHitrate Real Hitrate 90.71 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C2
Hit Map 50: C2
Plot
RealHitrate Real Hitrate 30.21 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C2
Col. Read. Unif. 150: C2
Plot
N N 12215900
mu μ 282175
sigma σ 186240.96
Col. Read. Unif. 50: C2
Plot
N N 4014288
mu μ 93982
sigma σ 69034.62
Read. Unif. over Time 150: C2
Plot
N N 14673100
mu μ 14866
sigma_th σ_th 121.93
Time unif. distribution 150: C2
Plot
chi2/ndf chi2/ndf 2.49
sigma σ 130.74
sigma_th σ_th 121.98
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C2
Plot
N N 4887068
mu μ 4951
sigma_th σ_th 70.37
Time unif. distribution 50: C2
Plot
chi2/ndf chi2/ndf 1.89
sigma σ 74.47
sigma_th σ_th 70.39
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C2

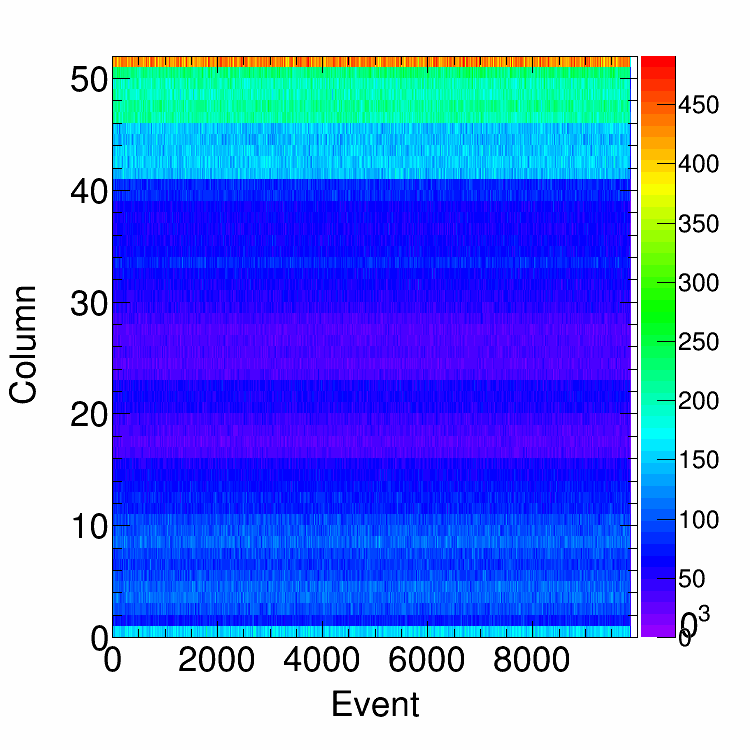

Col. Uniformity per Event: C2 150
Plot
mu μ 30.32
sigma fit error of μ 2.45
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C2 50
Plot
mu μ 31.08
sigma fit error of μ 2.45
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C2 100
Plot
N N 4160
mu μ 183.79
sigma RMS 17.81
threshold thr 2011.35
fit fit Gaussian
fit_peak μ fit 182.95
fit_sigma σ fit 16.35
MeasuredHitrate Measured hitrate: 63.1
Alive Map: C2
DC Efficiency Distribution: C2
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.24
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C2
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
