Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 14
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.86/99.12
EfficiencyFit Efficiency Fit chi2/ndf: 0.73, # points: 95
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C14
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.73
NumberFitPoints # fit points 95
p0 p0 99.92
p1 p1 4.63e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.12
Efficiency Map 50: C14
Efficiency Map 100: C14
Efficiency Map 150: C14
Efficiency Map 200: C14
Efficiency Map 250: C14
Efficiency Distr. 50: C14
Plot
N N 4160
mu μ 99.93
sigma σ 0.38
Efficiency Distr. 100: C14
Plot
N N 4160
mu μ 99.77
sigma σ 0.68
Efficiency Distr. 150: C14
Plot
N N 4160
mu μ 99.45
sigma σ 1.11
Efficiency Distr. 200: C14
Plot
N N 4160
mu μ 98.82
sigma σ 1.71
Efficiency Distr. 250: C14
Plot
N N 4160
mu μ 98.66
sigma σ 1.86

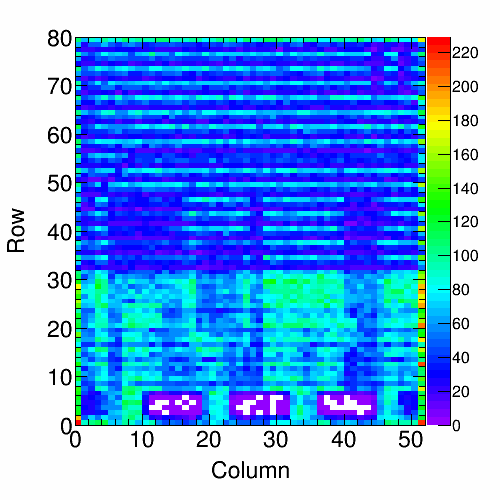

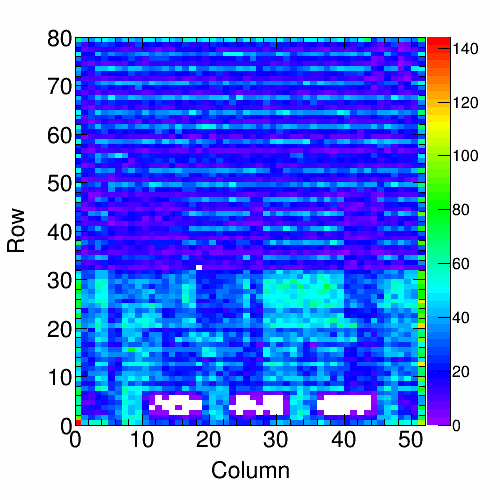

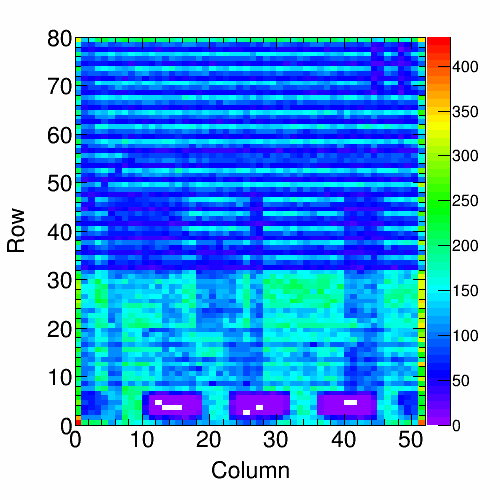

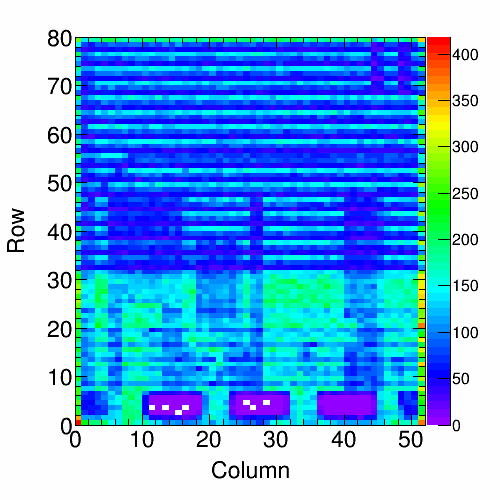

Background Map 50: C14
Plot
RealHitrate Real Hitrate 31.01 MHz/cm2
Background Map 100: C14
Plot
RealHitrate Real Hitrate 63.03 MHz/cm2
Background Map 150: C14
Plot
RealHitrate Real Hitrate 92.12 MHz/cm2
Background Map 200: C14
Plot
RealHitrate Real Hitrate 124.24 MHz/cm2
Background Map 250: C14
Plot
RealHitrate Real Hitrate 129.12 MHz/cm2
Retrim Hot Pix 150: C14
Masked Hot Pixels 150: C14
Masked Hot Pixels 50: C14

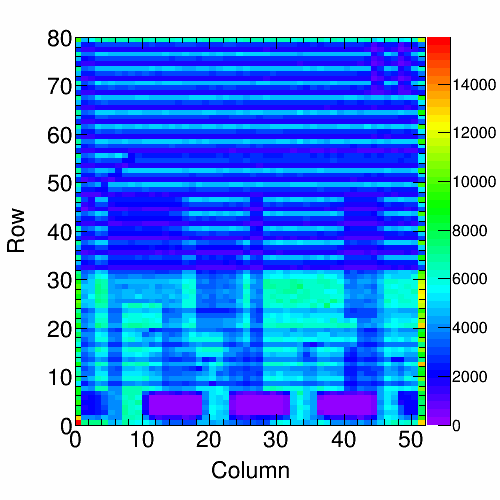

Hit Map 150: C14
Plot
RealHitrate Real Hitrate 89.39 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C14
Hit Map 50: C14
Plot
RealHitrate Real Hitrate 29.87 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C14
Col. Read. Unif. 150: C14
Plot
N N 12874260
mu μ 278075
sigma σ 61672.07
Col. Read. Unif. 50: C14
Plot
N N 4302201
mu μ 92936
sigma σ 21713.08
Read. Unif. over Time 150: C14
Plot
N N 14459916
mu μ 14650
sigma_th σ_th 121.04
Time unif. distribution 150: C14
Plot
chi2/ndf chi2/ndf 3.44
sigma σ 126.25
sigma_th σ_th 121.09
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C14
Plot
N N 4832680
mu μ 4896
sigma_th σ_th 69.97
Time unif. distribution 50: C14
Plot
chi2/ndf chi2/ndf 0.95
sigma σ 71.90
sigma_th σ_th 69.99
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C14

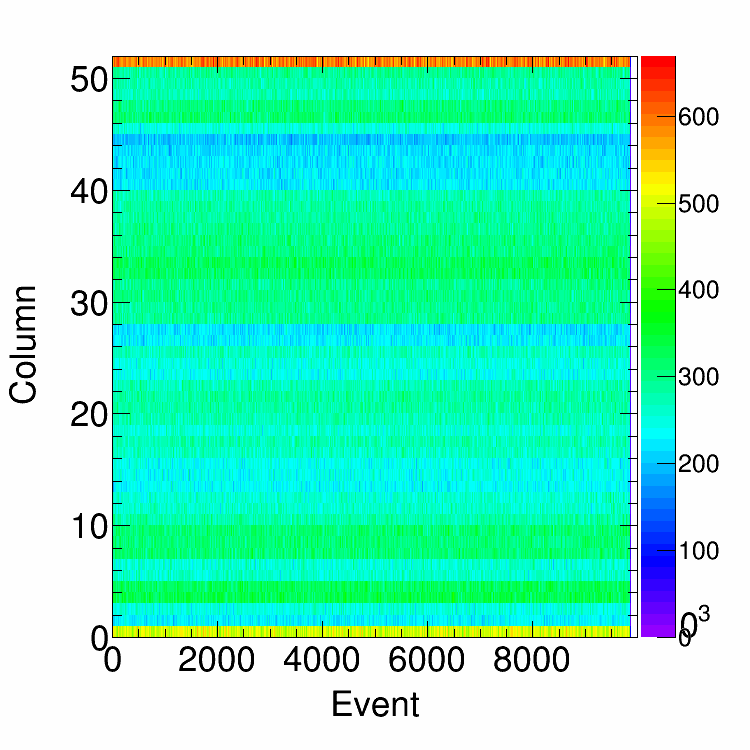

Col. Uniformity per Event: C14 150
Plot
mu μ 26.02
sigma fit error of μ 2.16
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

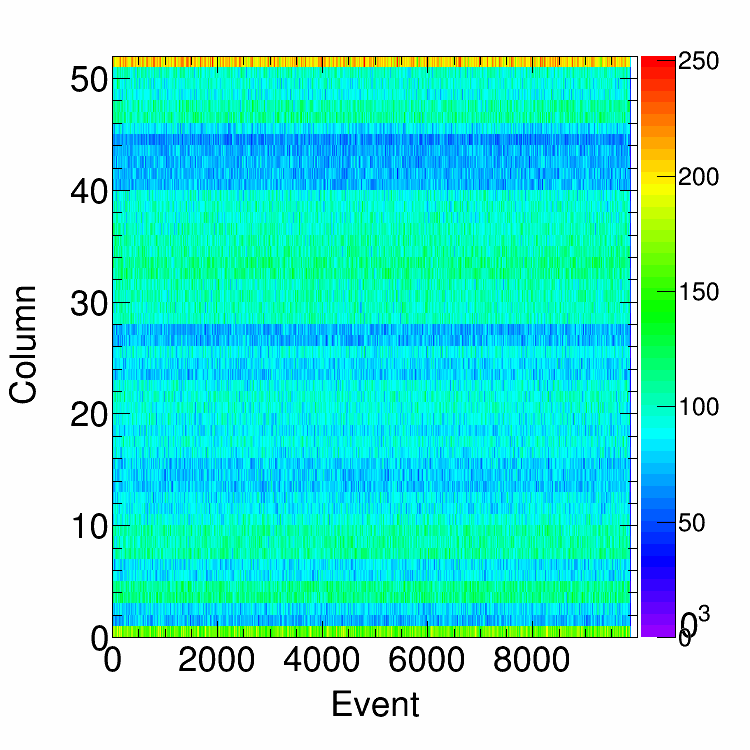

Col. Uniformity per Event: C14 50
Plot
mu μ 26.30
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C14 100
Plot
N N 4160
mu μ 162.95
sigma RMS 15.11
threshold thr 2002.84
fit fit Gaussian
fit_peak μ fit 162.73
fit_sigma σ fit 14.92
MeasuredHitrate Measured hitrate: 62.5
Alive Map: C14
DC Efficiency Distribution: C14
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.11
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C14
