Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 13
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.85/99.33
EfficiencyFit Efficiency Fit chi2/ndf: 0.37, # points: 73
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C13
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.37
NumberFitPoints # fit points 73
p0 p0 99.89
p1 p1 3.21e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.33
Efficiency Map 50: C13
Efficiency Map 100: C13
Efficiency Map 150: C13
Efficiency Map 200: C13
Efficiency Map 250: C13
Efficiency Distr. 50: C13
Plot
N N 4160
mu μ 99.93
sigma σ 0.40
Efficiency Distr. 100: C13
Plot
N N 4160
mu μ 99.72
sigma σ 0.90
Efficiency Distr. 150: C13
Plot
N N 4160
mu μ 99.33
sigma σ 1.67
Efficiency Distr. 200: C13
Plot
N N 4160
mu μ 98.40
sigma σ 3.67
Efficiency Distr. 250: C13
Plot
N N 4160
mu μ 98.33
sigma σ 3.81

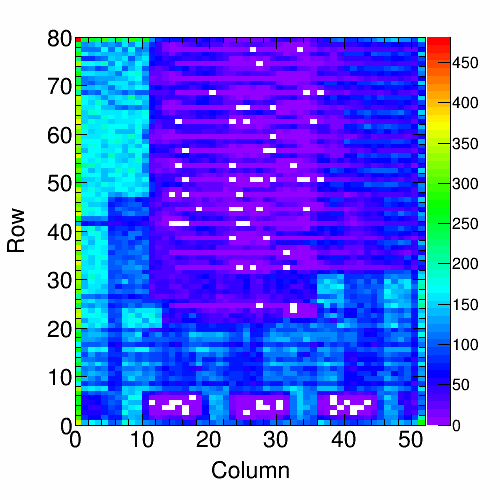

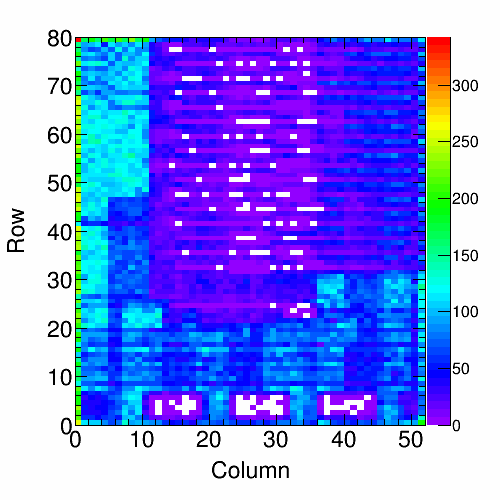

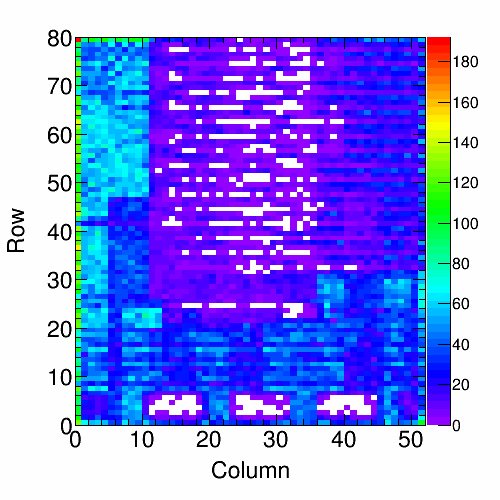

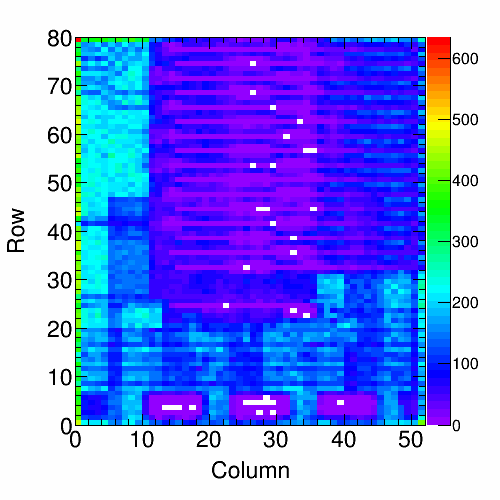

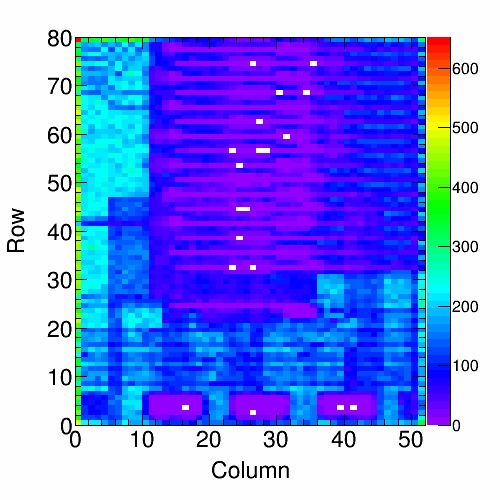

Background Map 50: C13
Plot
RealHitrate Real Hitrate 29.14 MHz/cm2
Background Map 100: C13
Plot
RealHitrate Real Hitrate 59.57 MHz/cm2
Background Map 150: C13
Plot
RealHitrate Real Hitrate 86.51 MHz/cm2
Background Map 200: C13
Plot
RealHitrate Real Hitrate 117.93 MHz/cm2
Background Map 250: C13
Plot
RealHitrate Real Hitrate 122.58 MHz/cm2
Retrim Hot Pix 150: C13
Masked Hot Pixels 150: C13
Masked Hot Pixels 50: C13

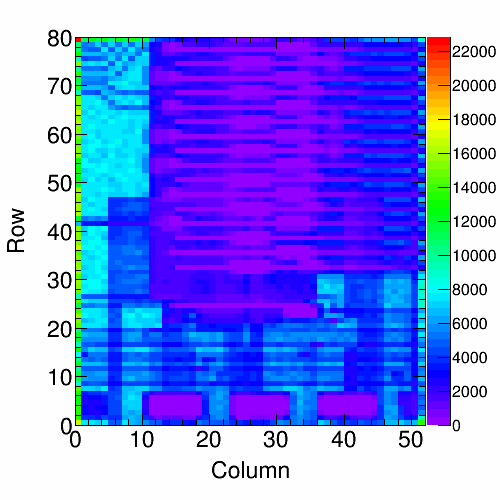

Hit Map 150: C13
Plot
RealHitrate Real Hitrate 84.63 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C13

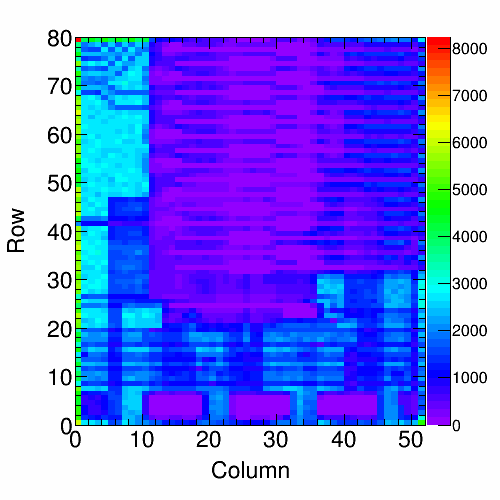

Hit Map 50: C13
Plot
RealHitrate Real Hitrate 28.12 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C13

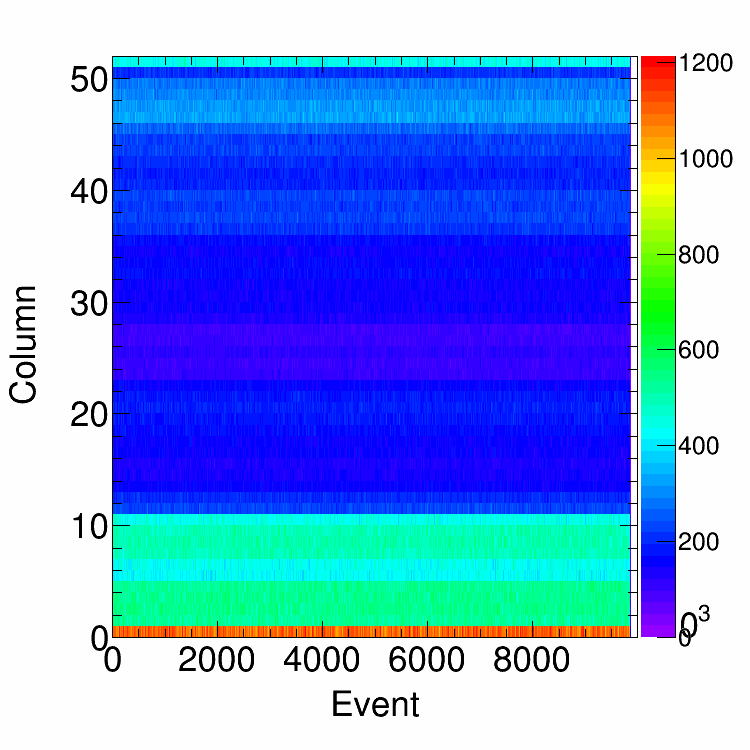

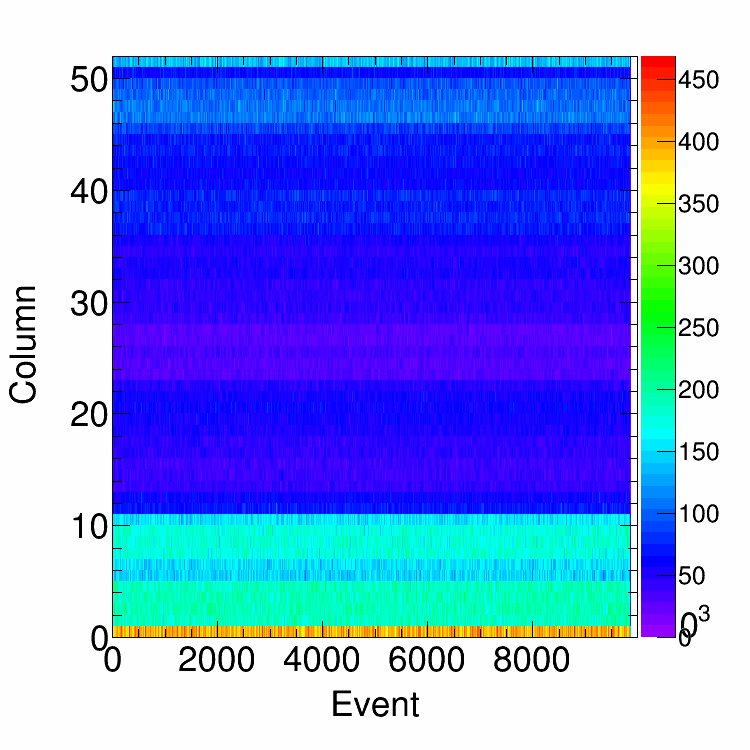

Col. Read. Unif. 150: C13
Plot
N N 11453411
mu μ 263272
sigma σ 176494.83
Col. Read. Unif. 50: C13
Plot
N N 3773094
mu μ 87495
sigma σ 65374.84
Read. Unif. over Time 150: C13
Plot
N N 13690161
mu μ 13870
sigma_th σ_th 117.77
Time unif. distribution 150: C13
Plot
chi2/ndf chi2/ndf 2.29
sigma σ 127.14
sigma_th σ_th 117.82
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C13
Plot
N N 4549726
mu μ 4610
sigma_th σ_th 67.89
Time unif. distribution 50: C13
Plot
chi2/ndf chi2/ndf 1.73
sigma σ 72.57
sigma_th σ_th 67.92
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C13
Col. Uniformity per Event: C13 150
Plot
mu μ 21.57
sigma fit error of μ 2.45
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C13 50
Plot
mu μ 21.57
sigma fit error of μ 2.48
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C13 100
Plot
N N 4160
mu μ 163.01
sigma RMS 15.68
threshold thr 2019.55
fit fit Gaussian
fit_peak μ fit 162.74
fit_sigma σ fit 15.25
MeasuredHitrate Measured hitrate: 59.0
Alive Map: C13
DC Efficiency Distribution: C13
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.19
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C13
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
