Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 11
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.87/99.33
EfficiencyFit Efficiency Fit chi2/ndf: 0.53, # points: 53
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C11
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.53
NumberFitPoints # fit points 53
p0 p0 99.92
p1 p1 3.41e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.33
Efficiency Map 50: C11
Efficiency Map 100: C11
Efficiency Map 150: C11
Efficiency Map 200: C11
Efficiency Map 250: C11
Efficiency Distr. 50: C11
Plot
N N 4160
mu μ 99.86
sigma σ 0.55
Efficiency Distr. 100: C11
Plot
N N 4160
mu μ 99.33
sigma σ 1.34
Efficiency Distr. 150: C11
Plot
N N 4160
mu μ 98.24
sigma σ 2.65
Efficiency Distr. 200: C11
Plot
N N 4160
mu μ 95.67
sigma σ 5.32
Efficiency Distr. 250: C11
Plot
N N 4160
mu μ 95.35
sigma σ 5.57

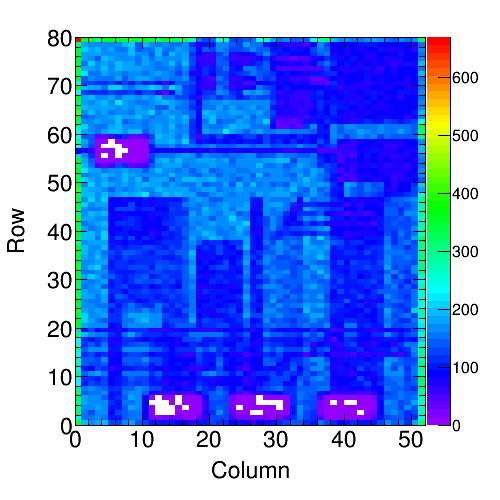

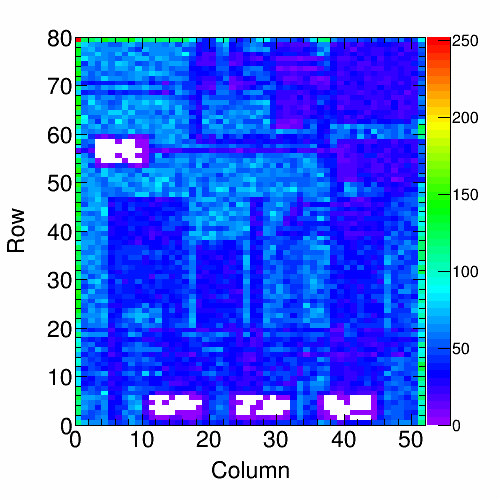

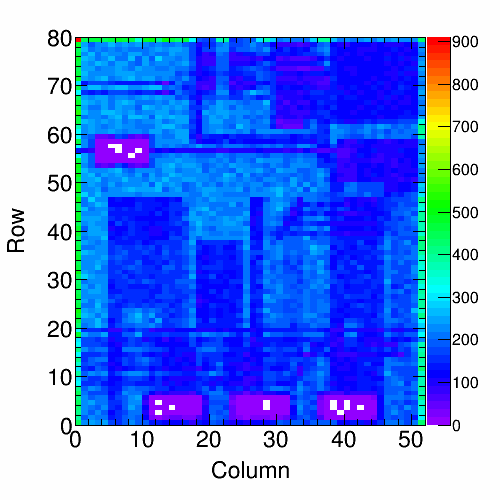

Background Map 50: C11
Plot
RealHitrate Real Hitrate 53.92 MHz/cm2
Background Map 100: C11
Plot
RealHitrate Real Hitrate 107.38 MHz/cm2
Background Map 150: C11
Plot
RealHitrate Real Hitrate 154.19 MHz/cm2
Background Map 200: C11
Plot
RealHitrate Real Hitrate 207.26 MHz/cm2
Background Map 250: C11
Plot
RealHitrate Real Hitrate 213.95 MHz/cm2
Retrim Hot Pix 150: C11
Masked Hot Pixels 150: C11
Masked Hot Pixels 50: C11

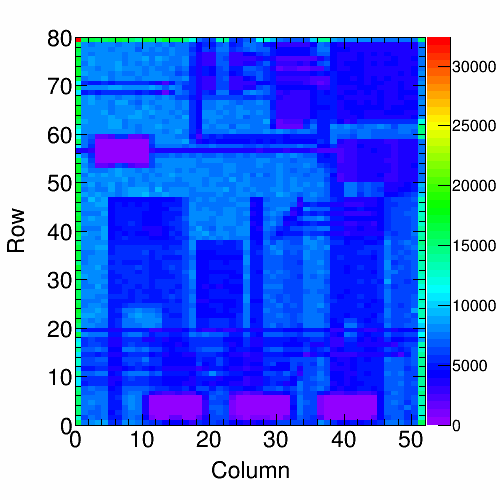

Hit Map 150: C11
Plot
RealHitrate Real Hitrate 150.52 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C11

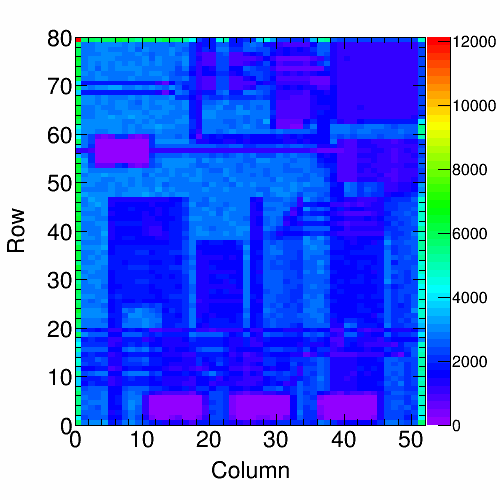

Hit Map 50: C11
Plot
RealHitrate Real Hitrate 52.31 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C11
Col. Read. Unif. 150: C11
Plot
N N 21166435
mu μ 468208
sigma σ 139277.79
Col. Read. Unif. 50: C11
Plot
N N 7337174
mu μ 162775
sigma σ 52100.33
Read. Unif. over Time 150: C11
Plot
N N 24346815
mu μ 24667
sigma_th σ_th 157.06
Time unif. distribution 150: C11
Plot
chi2/ndf chi2/ndf 3.05
sigma σ 170.07
sigma_th σ_th 157.13
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C11
Plot
N N 8464324
mu μ 8576
sigma_th σ_th 92.61
Time unif. distribution 50: C11
Plot
chi2/ndf chi2/ndf 2.11
sigma σ 98.07
sigma_th σ_th 92.63
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C11

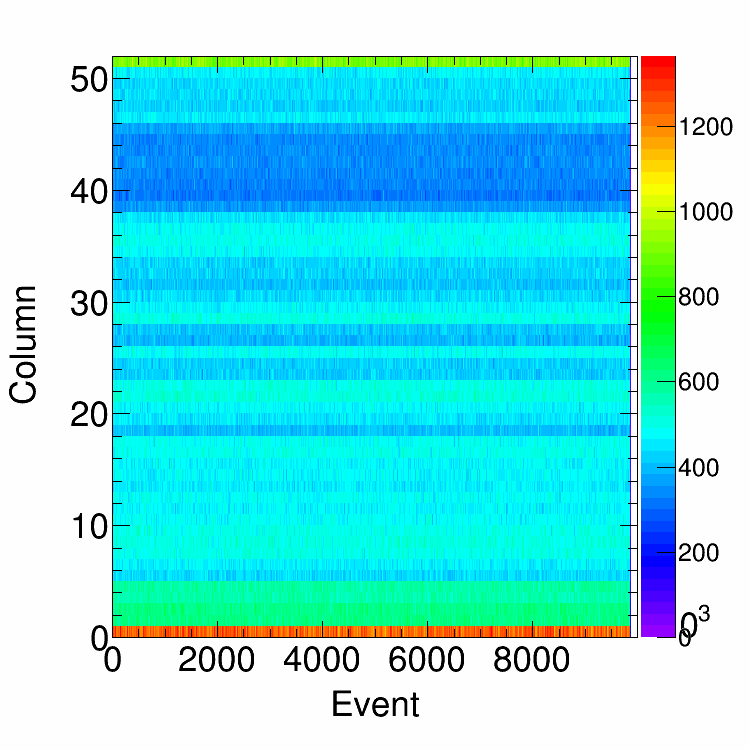

Col. Uniformity per Event: C11 150
Plot
mu μ 24.22
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C11 50
Plot
mu μ 24.07
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C11 100
Plot
N N 4160
mu μ 157.22
sigma RMS 15.59
threshold thr 2163.96
fit fit Gaussian
fit_peak μ fit 156.76
fit_sigma σ fit 14.95
MeasuredHitrate Measured hitrate: 107.4
Alive Map: C11
DC Efficiency Distribution: C11
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.32
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C11
