Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 10
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 1/1
Efficiency Efficiency 50/120 99.87/99.35
EfficiencyFit Efficiency Fit chi2/ndf: 0.44, # points: 45
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C10
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.44
NumberFitPoints # fit points 45
p0 p0 99.91
p1 p1 3.25e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.35

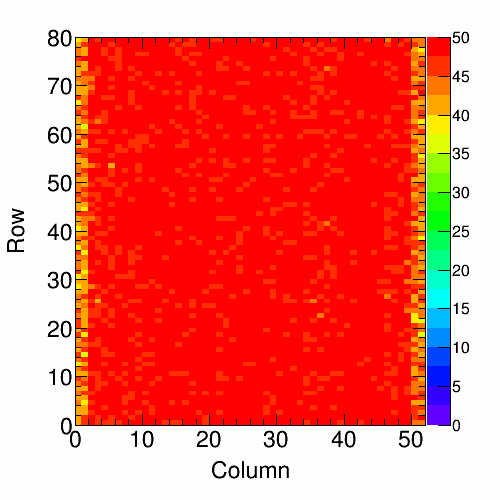

Efficiency Map 50: C10

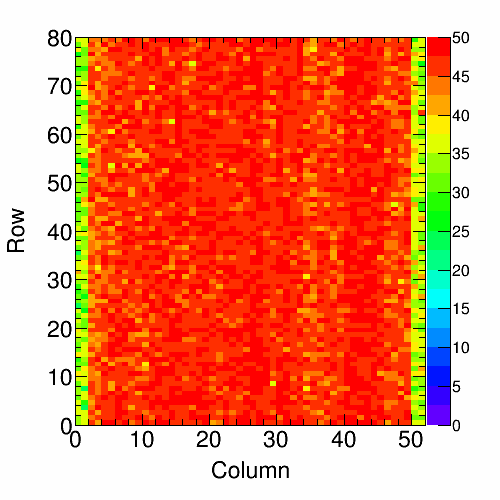

Efficiency Map 100: C10
Efficiency Map 150: C10
Efficiency Map 200: C10
Efficiency Map 250: C10
Efficiency Distr. 50: C10
Plot
N N 4160
mu μ 99.77
sigma σ 0.70
Efficiency Distr. 100: C10
Plot
N N 4160
mu μ 98.75
sigma σ 1.97
Efficiency Distr. 150: C10
Plot
N N 4160
mu μ 96.46
sigma σ 4.01
Efficiency Distr. 200: C10
Plot
N N 4160
mu μ 91.69
sigma σ 7.57
Efficiency Distr. 250: C10
Plot
N N 4160
mu μ 91.05
sigma σ 7.86

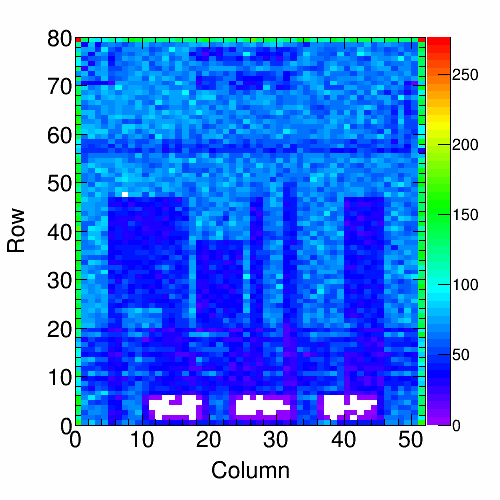

Background Map 50: C10
Plot
RealHitrate Real Hitrate 70.00 MHz/cm2

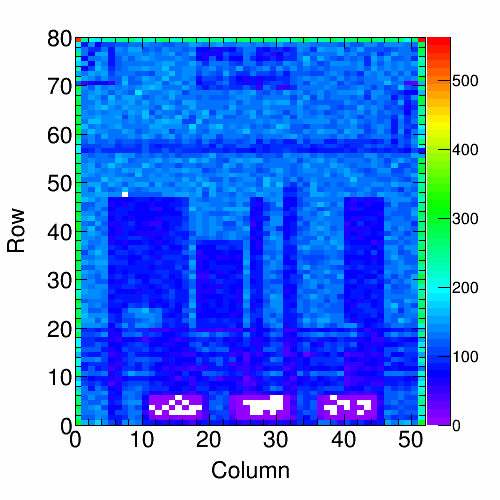

Background Map 100: C10
Plot
RealHitrate Real Hitrate 137.63 MHz/cm2

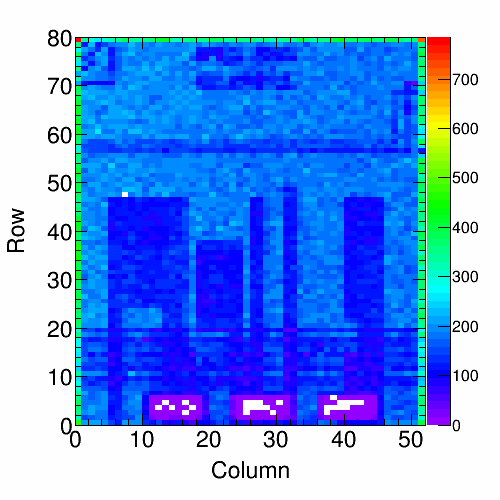

Background Map 150: C10
Plot
RealHitrate Real Hitrate 196.39 MHz/cm2
Background Map 200: C10
Plot
RealHitrate Real Hitrate 263.27 MHz/cm2
Background Map 250: C10
Plot
RealHitrate Real Hitrate 269.18 MHz/cm2
Retrim Hot Pix 150: C10
Masked Hot Pixels 150: C10
Masked Hot Pixels 50: C10

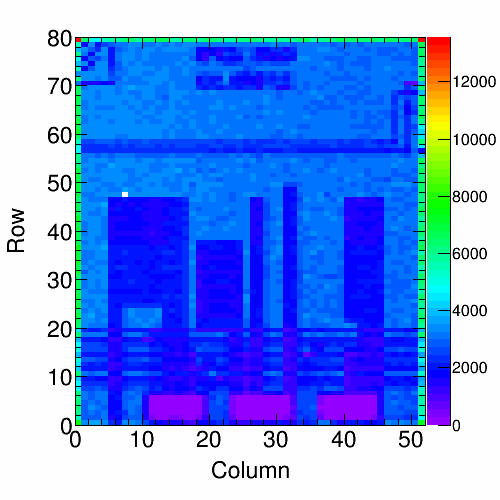

Hit Map 150: C10
Plot
RealHitrate Real Hitrate 192.17 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 150: C10
Hit Map 50: C10
Plot
RealHitrate Real Hitrate 68.17 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 50: C10
Col. Read. Unif. 150: C10
Plot
N N 27140533
mu μ 597792
sigma σ 158291.08
Col. Read. Unif. 50: C10
Plot
N N 9603707
mu μ 212094
sigma σ 58869.64
Read. Unif. over Time 150: C10
Plot
N N 31085176
mu μ 31495
sigma_th σ_th 177.47
Time unif. distribution 150: C10
Plot
chi2/ndf chi2/ndf 3.16
sigma σ 190.60
sigma_th σ_th 177.54
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C10
Plot
N N 11028910
mu μ 11174
sigma_th σ_th 105.71
Time unif. distribution 50: C10
Plot
chi2/ndf chi2/ndf 1.17
sigma σ 108.91
sigma_th σ_th 105.74
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C10

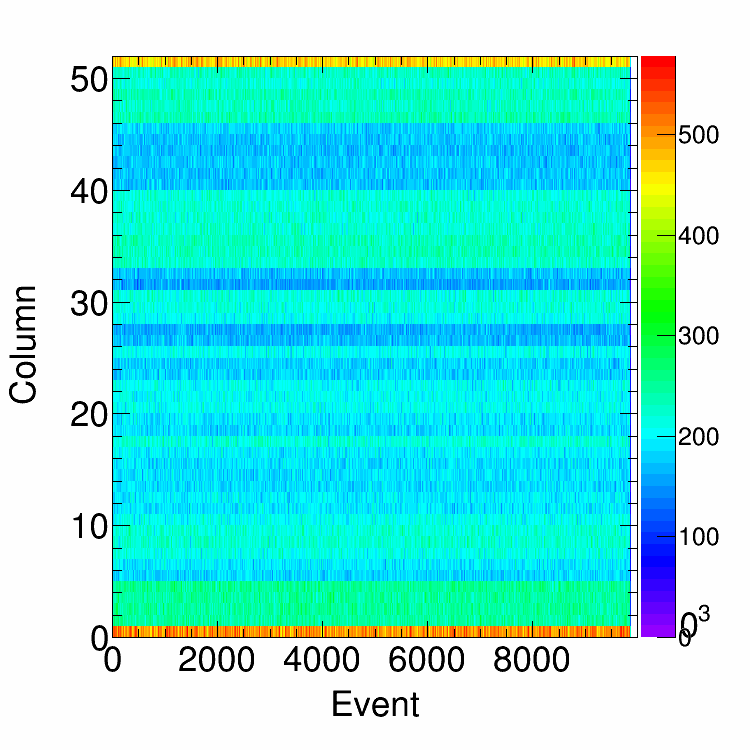

Col. Uniformity per Event: C10 150
Plot
mu μ 25.73
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C10 50
Plot
mu μ 25.83
sigma fit error of μ 2.25
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C10 100
Plot
N N 4160
mu μ 157.06
sigma RMS 17.12
threshold thr 2241.59
fit fit Gaussian
fit_peak μ fit 156.70
fit_sigma σ fit 16.53
MeasuredHitrate Measured hitrate: 136.5
Alive Map: C10
DC Efficiency Distribution: C10
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.31
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C10
