Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 1
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.87/99.27
EfficiencyFit Efficiency Fit chi2/ndf: 1.27, # points: 91
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C1
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 1.27
NumberFitPoints # fit points 91
p0 p0 99.91
p1 p1 3.73e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.27
Efficiency Map 50: C1
Efficiency Map 100: C1
Efficiency Map 150: C1
Efficiency Map 200: C1
Efficiency Map 250: C1
Efficiency Distr. 50: C1
Plot
N N 4160
mu μ 99.92
sigma σ 0.40
Efficiency Distr. 100: C1
Plot
N N 4160
mu μ 99.79
sigma σ 0.69
Efficiency Distr. 150: C1
Plot
N N 4160
mu μ 99.54
sigma σ 1.07
Efficiency Distr. 200: C1
Plot
N N 4160
mu μ 98.93
sigma σ 1.76
Efficiency Distr. 250: C1
Plot
N N 4160
mu μ 98.86
sigma σ 1.76

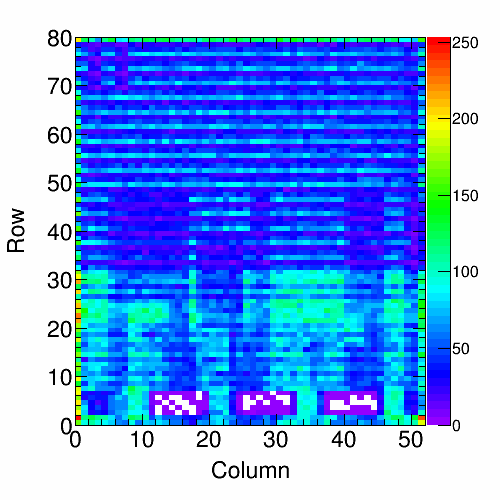

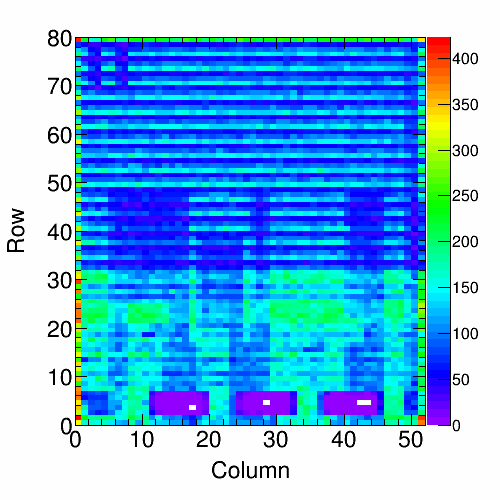

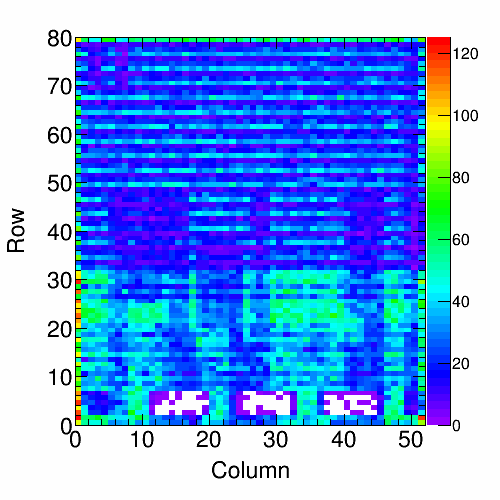

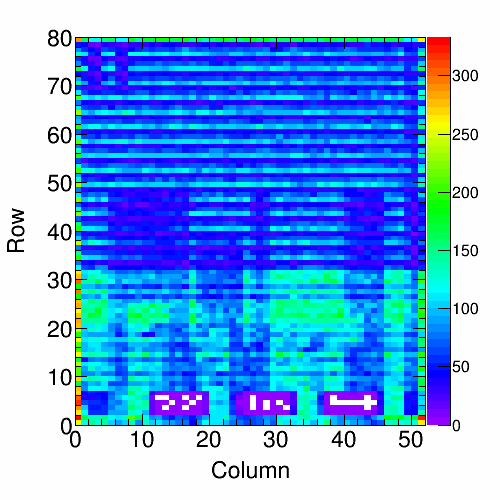

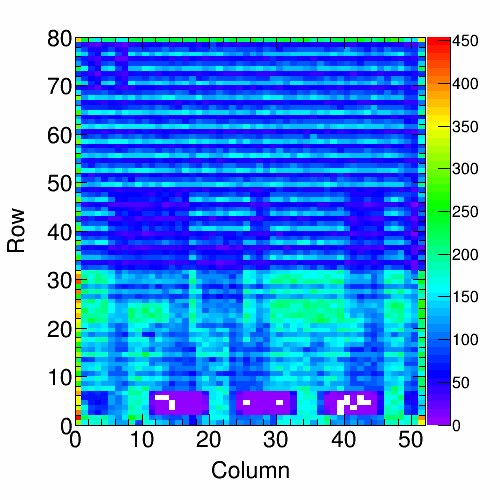

Background Map 50: C1
Plot
RealHitrate Real Hitrate 31.92 MHz/cm2
Background Map 100: C1
Plot
RealHitrate Real Hitrate 64.98 MHz/cm2
Background Map 150: C1
Plot
RealHitrate Real Hitrate 94.29 MHz/cm2
Background Map 200: C1
Plot
RealHitrate Real Hitrate 129.13 MHz/cm2
Background Map 250: C1
Plot
RealHitrate Real Hitrate 133.42 MHz/cm2
Retrim Hot Pix 150: C1
Masked Hot Pixels 150: C1
Masked Hot Pixels 50: C1

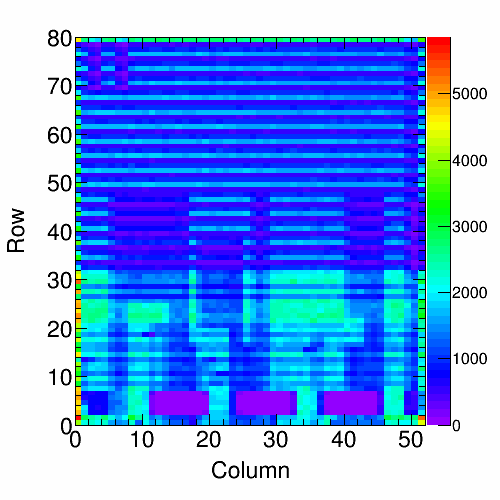

Hit Map 150: C1
Plot
RealHitrate Real Hitrate 92.61 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C1
Hit Map 50: C1
Plot
RealHitrate Real Hitrate 30.84 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C1
Col. Read. Unif. 150: C1
Plot
N N 13359505
mu μ 288083
sigma σ 67269.52
Col. Read. Unif. 50: C1
Plot
N N 4447637
mu μ 95959
sigma σ 24027.35
Read. Unif. over Time 150: C1
Plot
N N 14980304
mu μ 15178
sigma_th σ_th 123.20
Time unif. distribution 150: C1
Plot
chi2/ndf chi2/ndf 2.04
sigma σ 130.92
sigma_th σ_th 123.25
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C1
Plot
N N 4989864
mu μ 5056
sigma_th σ_th 71.10
Time unif. distribution 50: C1
Plot
chi2/ndf chi2/ndf 0.52
sigma σ 70.44
sigma_th σ_th 71.12
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C1

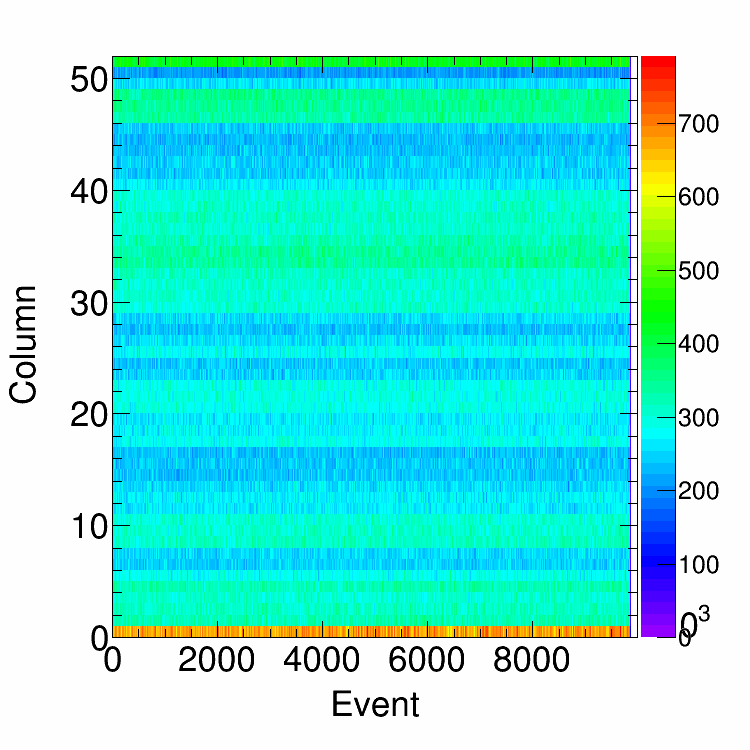

Col. Uniformity per Event: C1 150
Plot
mu μ 25.64
sigma fit error of μ 2.18
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C1 50
Plot
mu μ 25.31
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C1 100
Plot
N N 4160
mu μ 175.28
sigma RMS 16.33
threshold thr 2016.06
fit fit Gaussian
fit_peak μ fit 175.03
fit_sigma σ fit 15.98
MeasuredHitrate Measured hitrate: 64.8
Alive Map: C1
DC Efficiency Distribution: C1
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.26
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C1
