Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 0
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.86/99.31
EfficiencyFit Efficiency Fit chi2/ndf: 0.72, # points: 96
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C0
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.72
NumberFitPoints # fit points 96
p0 p0 99.90
p1 p1 3.44e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.31
Efficiency Map 50: C0
Efficiency Map 100: C0
Efficiency Map 150: C0
Efficiency Map 200: C0
Efficiency Map 250: C0
Efficiency Distr. 50: C0
Plot
N N 4160
mu μ 99.93
sigma σ 0.37
Efficiency Distr. 100: C0
Plot
N N 4160
mu μ 99.80
sigma σ 0.65
Efficiency Distr. 150: C0
Plot
N N 4160
mu μ 99.56
sigma σ 0.98
Efficiency Distr. 200: C0
Plot
N N 4160
mu μ 99.07
sigma σ 1.56
Efficiency Distr. 250: C0
Plot
N N 4160
mu μ 99.04
sigma σ 1.57

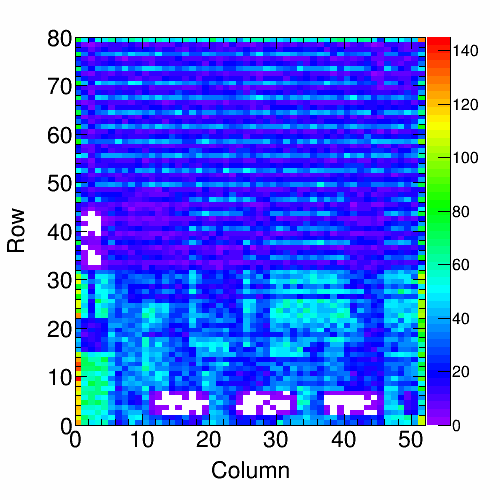

Background Map 50: C0
Plot
RealHitrate Real Hitrate 30.69 MHz/cm2

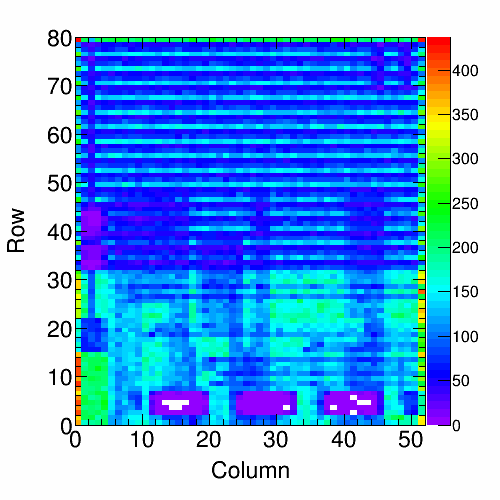

Background Map 100: C0
Plot
RealHitrate Real Hitrate 62.20 MHz/cm2

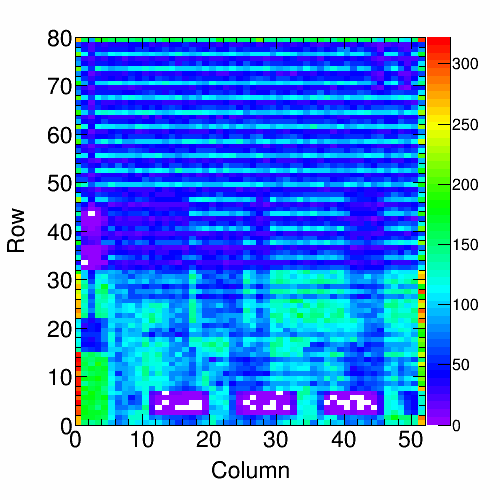

Background Map 150: C0
Plot
RealHitrate Real Hitrate 89.95 MHz/cm2

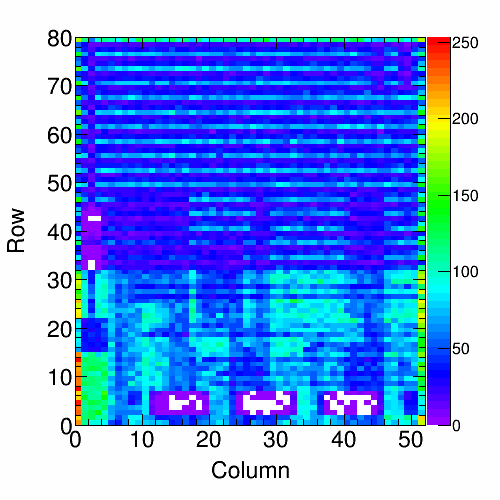

Background Map 200: C0
Plot
RealHitrate Real Hitrate 122.22 MHz/cm2
Background Map 250: C0
Plot
RealHitrate Real Hitrate 125.21 MHz/cm2
Retrim Hot Pix 150: C0
Masked Hot Pixels 150: C0
Masked Hot Pixels 50: C0

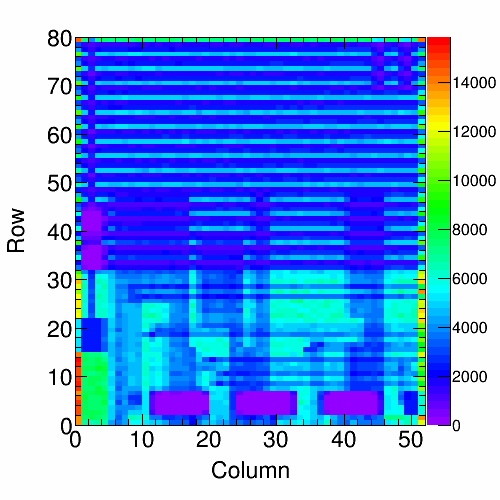

Hit Map 150: C0
Plot
RealHitrate Real Hitrate 88.49 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C0
Hit Map 50: C0
Plot
RealHitrate Real Hitrate 29.86 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C0
Col. Read. Unif. 150: C0
Plot
N N 12496723
mu μ 275273
sigma σ 74715.39
Col. Read. Unif. 50: C0
Plot
N N 4200059
mu μ 92912
sigma σ 27102.49
Read. Unif. over Time 150: C0
Plot
N N 14314205
mu μ 14503
sigma_th σ_th 120.43
Time unif. distribution 150: C0
Plot
chi2/ndf chi2/ndf 1.93
sigma σ 129.58
sigma_th σ_th 120.48
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C0
Plot
N N 4831443
mu μ 4895
sigma_th σ_th 69.96
Time unif. distribution 50: C0
Plot
chi2/ndf chi2/ndf 1.83
sigma σ 74.23
sigma_th σ_th 69.99
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C0

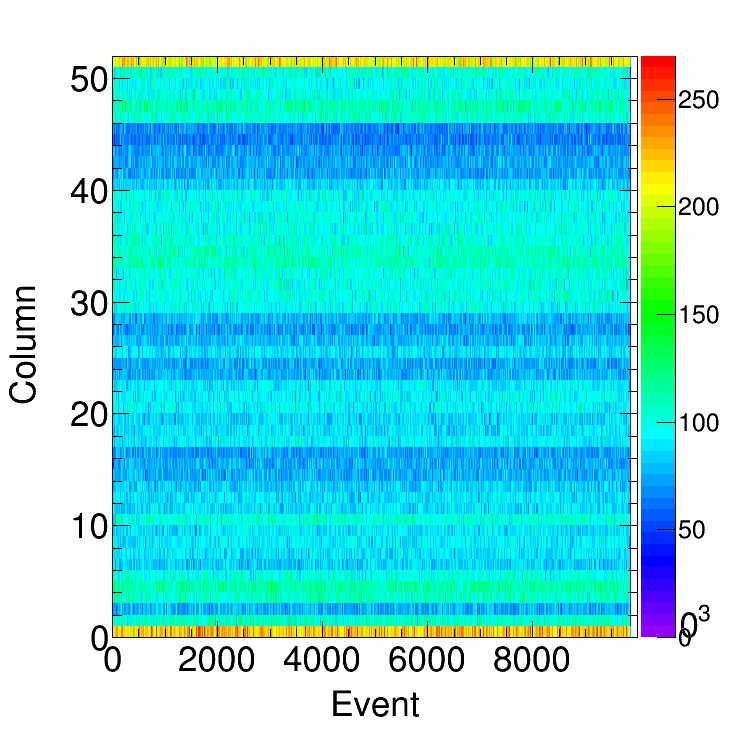

Col. Uniformity per Event: C0 150
Plot
mu μ 25.86
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C0 50
Plot
mu μ 26.18
sigma fit error of μ 2.24
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C0 100
Plot
N N 4160
mu μ 166.64
sigma RMS 15.54
threshold thr 2013.28
fit fit Gaussian
fit_peak μ fit 166.48
fit_sigma σ fit 15.17
MeasuredHitrate Measured hitrate: 61.8
Alive Map: C0
DC Efficiency Distribution: C0
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.29
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C0
