Test Date: 2015-07-24 15:32
Analysis date: 2016-05-25 22:47
Analysis date: 2016-05-25 22:47

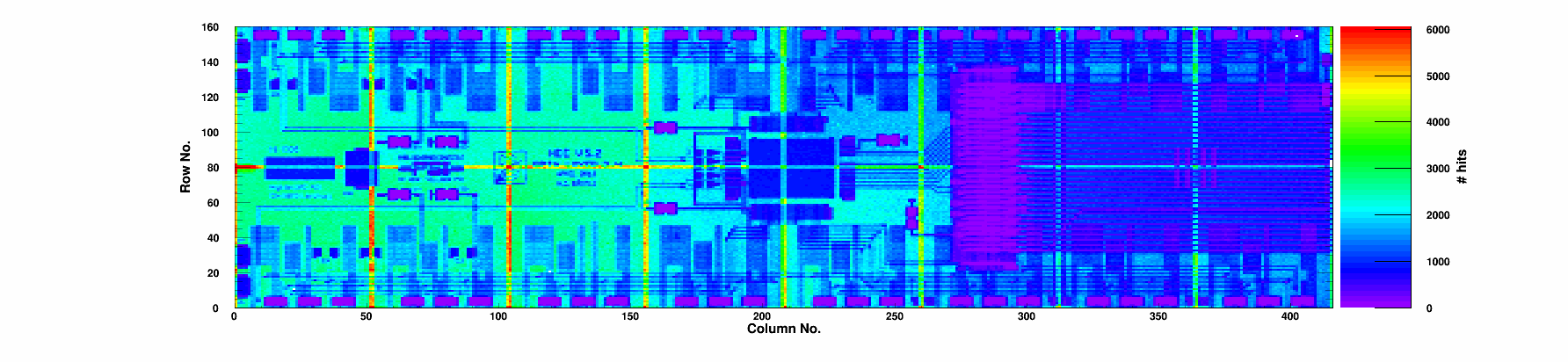

M2043 XRayHRQualification
Summary
| Module | Module | M2043 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 7 | |
| BumpBondingDefects | Bump Bonding Defects | 5 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

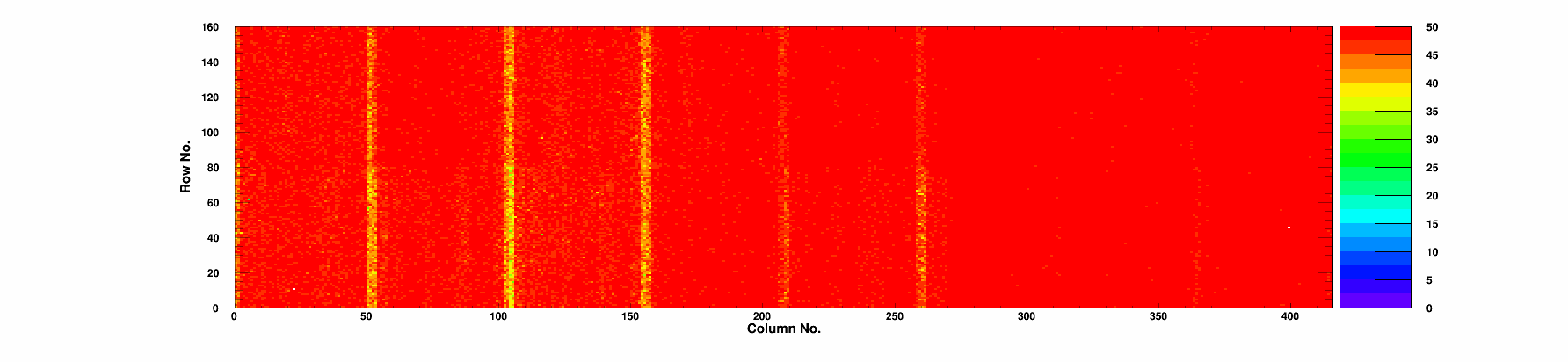

| Efficiency | Efficiency 50/120 | 99.87/99.27 | % |

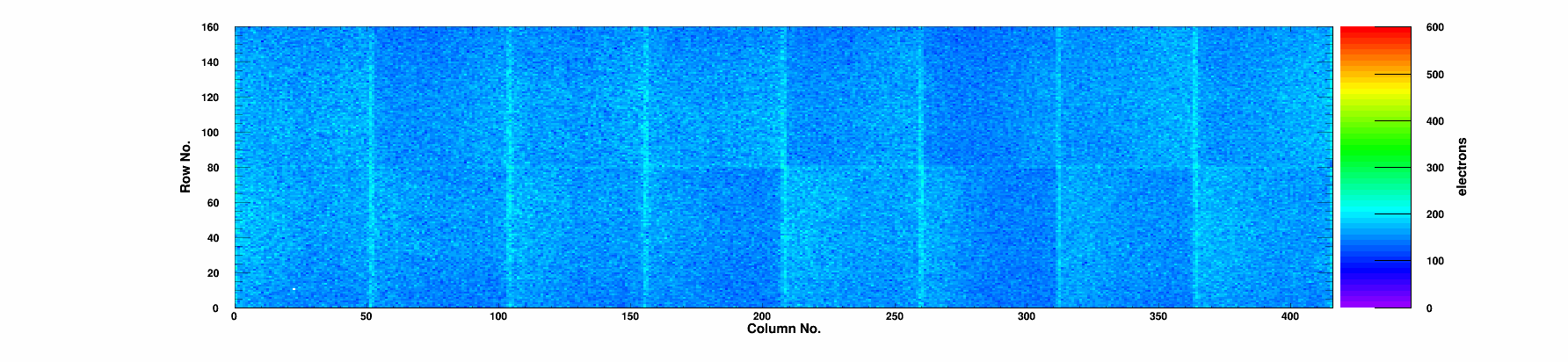

| Noise | Mean Noise | 158 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
4 | 0 | 99.88 | 99.20 | 0.36 | 63.1 | 4 | 20.9 | 0/0 | 0 | 1959 | 161 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.06 | 0.35 | 69.9 | 0 | 23.0 | 0/0 | 0 | 1964 | 161 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.35 | 0.27 | 55.9 | 0 | 17.9 | 0/0 | 0 | 1930 | 148 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.36 | 0.62 | 99.4 | 0 | 33.5 | 0/0 | 0 | 2049 | 155 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.89 | 99.33 | 0.75 | 122.5 | 0 | 42.2 | 0/0 | 0 | 2107 | 160 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.35 | 0.54 | 150.9 | 0 | 52.9 | 0/0 | 0 | 2159 | 160 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.39 | 0.41 | 127.1 | 0 | 43.7 | 0/0 | 0 | 2109 | 154 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.89 | 99.36 | 0.66 | 147.0 | 0 | 50.5 | 0/0 | 0 | 2155 | 162 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.88 | 99.32 | 0.55 | 154.2 | 0 | 53.3 | 0/0 | 0 | 2137 | 162 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.35 | 0.55 | 149.3 | 0 | 51.8 | 0/0 | 0 | 2129 | 156 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.88 | 99.33 | 0.47 | 161.7 | 1 | 56.8 | 0/0 | 0 | 2180 | 159 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.36 | 0.6 | 117.7 | 0 | 39.9 | 0/0 | 0 | 2096 | 152 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.31 | 0.55 | 120.5 | 0 | 41.2 | 0/0 | 0 | 2087 | 164 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.02 | 0.42 | 65.5 | 0 | 21.4 | 0/0 | 0 | 1983 | 151 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.87 | 99.26 | 0.36 | 69.6 | 0 | 22.8 | 0/0 | 0 | 1967 | 157 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.83 | 99.02 | 0.88 | 71.5 | 0 | 23.7 | 0/0 | 0 | 1973 | 162 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-07-24 | |
| TestTime | Test Time | 15:32 | |
| TestDuration | Duration | 1:24:19 | |
| pXar | pXar version | v2.2.5+46~gdbe75a1 | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 5 | |
| nWarnings | # Warnings | 4 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 2 | |
| channel_3_count | Channel 3 | 7 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 3 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
