Test Date: 2015-07-13 11:39
Analysis date: 2016-05-25 22:29
X-ray Calibration - Spectrum
Slope |
avrg Slope |
45.7229333333 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
avrgSlope |
avrg Slope |
45.7229333333 |
|
medianSlope |
median Slope |
45.139 |
|
minSlope |
min Slope |
42.045 |
|
maxSlope |
max Slope |
50.937 |
|
Offset of Spectrum Vcal Calibration
avrgOffset |
avrg Offset |
31.8301875 |
|
medianOffset |
median Offset |
7.751 |
|
minOffset |
min Offset |
-124.745 |
|
maxOffset |
max Offset |
281.111 |
|
Chi2 of Spectrum Vcal Calibration
avrgchi2 |
avrg chi2 |
7.89886666667 |
|
medianchi2 |
median chi2 |
2.703 |
|
minchi2 |
min chi2 |
0.001 |
|
maxchi2 |
max chi2 |
32.831 |
|
Vcal Calibration Module - Spectrum
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
0
|
44.1 e- / Vcal
|
0.1 e- / Vcal
|
119.9 e-
|
8.4 e-
|
1
|
50.6 e- / Vcal
|
0.2 e- / Vcal
|
22.7 e-
|
19.9 e-
|
2
|
44.9 e- / Vcal
|
0.2 e- / Vcal
|
16.5 e-
|
20.3 e-
|
3
|
45.2 e- / Vcal
|
0.1 e- / Vcal
|
281.1 e-
|
15.0 e-
|
4
|
49.8 e- / Vcal
|
0.1 e- / Vcal
|
-97.3 e-
|
7.4 e-
|
5
|
45.1 e- / Vcal
|
0.1 e- / Vcal
|
-124.7 e-
|
6.9 e-
|
6
|
47.1 e- / Vcal
|
0.1 e- / Vcal
|
173.7 e-
|
15.4 e-
|
7
|
50.9 e- / Vcal
|
0.2 e- / Vcal
|
45.7 e-
|
18.7 e-
|
8
|
48.6 e- / Vcal
|
0.1 e- / Vcal
|
61.5 e-
|
14.3 e-
|
9
|
47.0 e- / Vcal
|
0.1 e- / Vcal
|
-22.7 e-
|
7.7 e-
|
10
|
42.4 e- / Vcal
|
0.1 e- / Vcal
|
-22.9 e-
|
14.3 e-
|
11
|
42.5 e- / Vcal
|
0.1 e- / Vcal
|
-16.5 e-
|
16.5 e-
|
12
|
-1.0 e- / Vcal
|
-1.0 e- / Vcal
|
-1.0 e-
|
-1.0 e-
|
13
|
42.9 e- / Vcal
|
0.1 e- / Vcal
|
-53.6 e-
|
17.5 e-
|
14
|
42.0 e- / Vcal
|
0.1 e- / Vcal
|
-29.9 e-
|
17.5 e-
|
15
|
42.7 e- / Vcal
|
0.1 e- / Vcal
|
156.8 e-
|
17.3 e-
|
Average
|
45.7 e- / Vcal
|
|
34.0 e-
|
|
Median
|
50.9 e- / Vcal
|
|
45.7 e-
|
|
Overview
Xray Module Spectrum - Zn
Overview

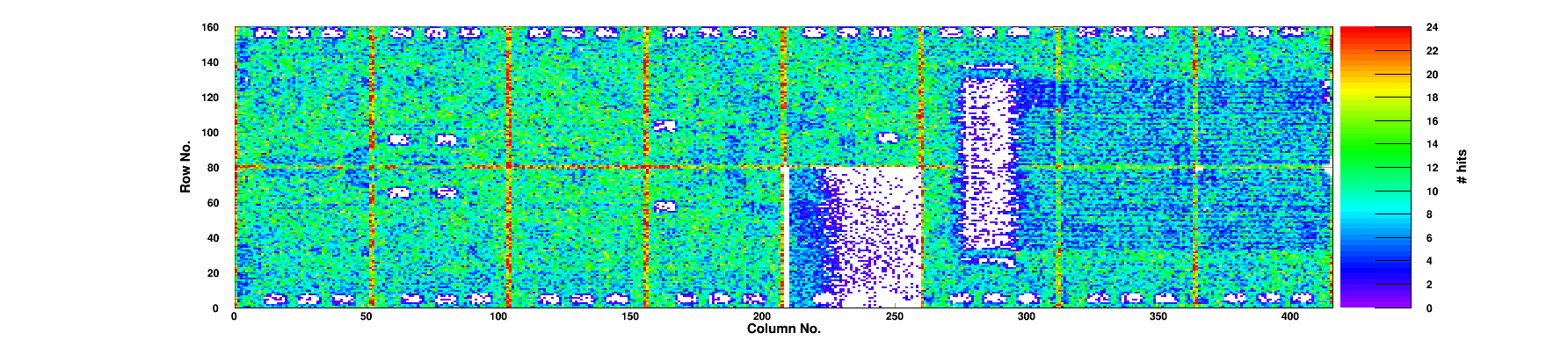

Xray Module Spectrum - Mo
Overview

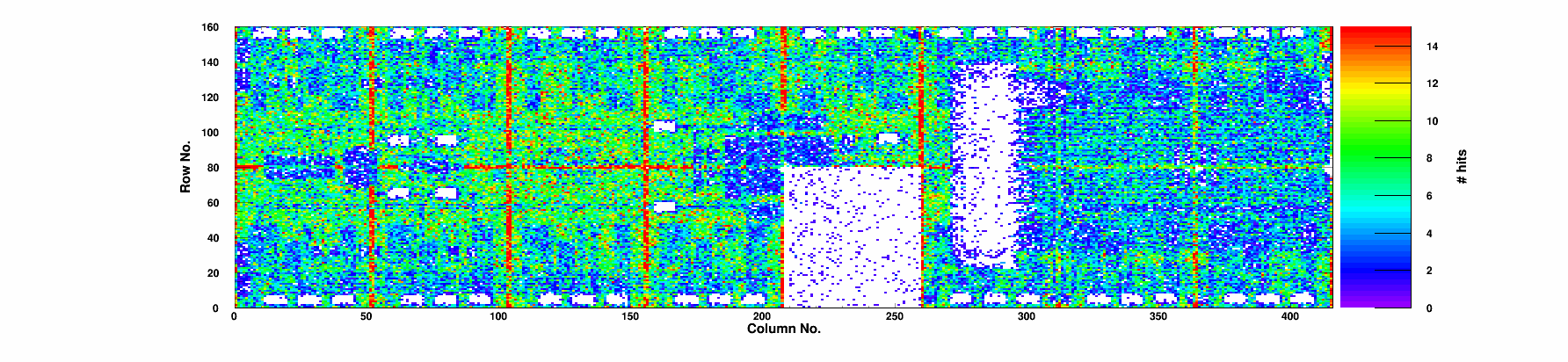

Xray Module Spectrum - Ag
Overview

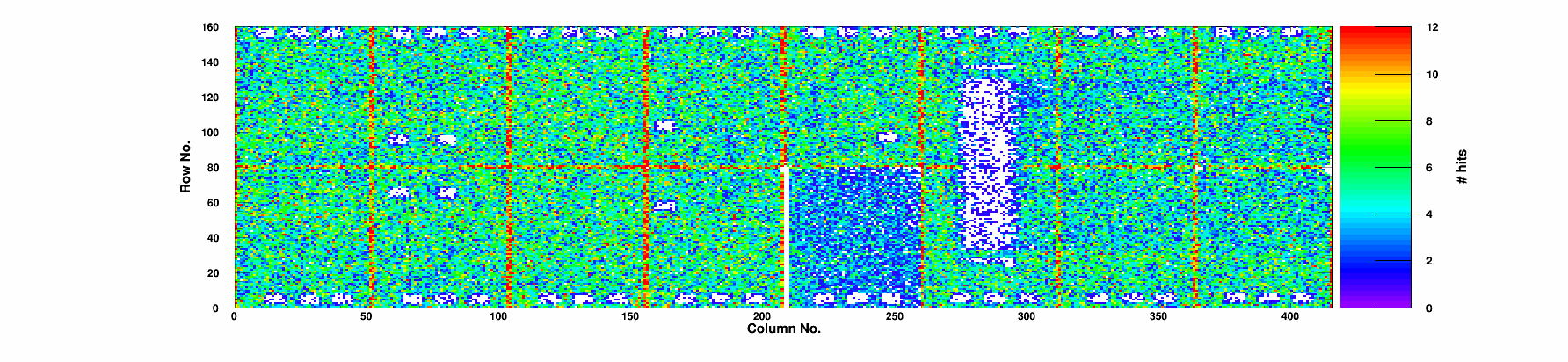

Xray Module Spectrum - Sn
Overview
Hits distribution Zn inner/edge/corner
Hits distribution Mo inner/edge/corner
Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
