Test Date: 2015-07-10 10:45
Analysis date: 2016-05-25 22:17
Analysis date: 2016-05-25 22:17
M2038 XRayHRQualification
Summary
| Module | Module | M2038 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 44 | |
| BumpBondingDefects | Bump Bonding Defects | 42 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

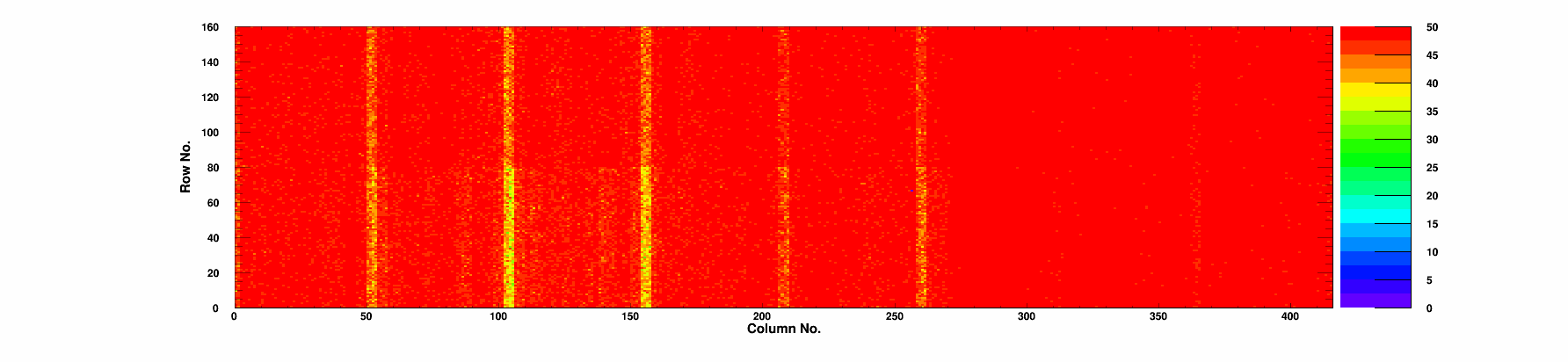

| Efficiency | Efficiency 50/120 | 99.87/99.24 | % |
| Noise | Mean Noise | 159 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
11 | 0 | 99.84 | 98.95 | 0.54 | 69.6 | 11 | 23.6 | 0/0 | 0 | 1969 | 161 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.87 | 99.21 | 0.52 | 74.1 | 1 | 24.9 | 0/0 | 0 | 1956 | 163 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.39 | 0.35 | 60.9 | 0 | 20.1 | 0/0 | 0 | 1924 | 146 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.83 | 99.02 | 1.34 | 98.2 | 1 | 33.1 | 0/0 | 0 | 1999 | 153 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.35 | 0.43 | 117.9 | 0 | 40.7 | 0/0 | 0 | 2069 | 157 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.35 | 0.48 | 133.1 | 0 | 46.6 | 0/0 | 0 | 2084 | 153 | 0 |
|
Chip 6
|
A
|
3 | 0 | 99.88 | 99.33 | 0.7 | 129.1 | 3 | 44.6 | 0/0 | 0 | 2075 | 159 | 0 |
|
Chip 7
|
A
|
4 | 0 | 99.88 | 99.30 | 0.68 | 121.0 | 4 | 41.1 | 0/0 | 0 | 2045 | 154 | 0 |
|
Chip 8
|
A
|
2 | 0 | 99.89 | 99.32 | 0.45 | 131.0 | 2 | 44.8 | 0/0 | 0 | 2066 | 160 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.89 | 99.34 | 0.44 | 151.9 | 1 | 52.5 | 0/0 | 0 | 2136 | 160 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.36 | 0.52 | 168.6 | 0 | 59.1 | 0/0 | 0 | 2156 | 166 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.89 | 99.30 | 0.47 | 134.6 | 1 | 46.5 | 0/0 | 0 | 2088 | 156 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.88 | 99.36 | 0.55 | 126.5 | 1 | 43.6 | 0/0 | 0 | 2074 | 175 | 1 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.02 | 0.54 | 68.1 | 0 | 22.4 | 0/0 | 0 | 1925 | 157 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.87 | 99.27 | 0.48 | 79.2 | 1 | 26.5 | 0/0 | 0 | 1953 | 167 | 0 |
|
Chip 15
|
A
|
16 | 0 | 99.86 | 98.94 | 0.56 | 75.8 | 16 | 25.7 | 0/0 | 0 | 1934 | 163 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-07-10 | |
| TestTime | Test Time | 10:45 | |
| TestDuration | Duration | 1:58:24 | |
| pXar | pXar version | v2.2.5+45~gbf85984 | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 3 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
