Module | Module | M2034 | |
Grade | Grade | B | |
ElectricalGrade | Electrical Grade | A | |
IVGrade | IV Grade | B | |
ManualGrade | Manual Grade | None | |
PixelDefects | Pixel Defects - A/B/C | 32 - 16/0/0 | |
DeadPixels | Dead Pixels | 1 | |
AddressProblems | Address Problems | 0 | |
ThresholdDefects | Threshold Defects | 4 | |
MaskDefects | Mask Defects | 0 | |
DeadBumps | Dead Bumps | 27 | |
NoisyPixels | Noise Defects | 0 | |
TrimProblems | Trim Problems | 0 | |
PHGainDefects | PH Gain Defects | 0 | |
PHPar1Defects | PH Parameter1 Defects | 0 |
TestCenter | Test Center | ETH | |
TestDate | Test Date | 2015-09-21 | |
TestTime | Test Time | 09:54 | |
TestDuration | Duration | 1:26:56 | |
TempC | Temparature | 17 | °C |
TBM1 | TBM1 | ok, 0xf0 0xed | |
TBM2 | TBM2 | ok, 0x00 0xed | |
PxarVersion | pXar | prod-11 | |
DTB_FW | DTB FW | 4.4 | |
ModuleIa | Module Ia | 382.7 | mA |
Noise | Noise | 136.24 | e |
NoiseROCs | Noise grades | 16/0/0 | |

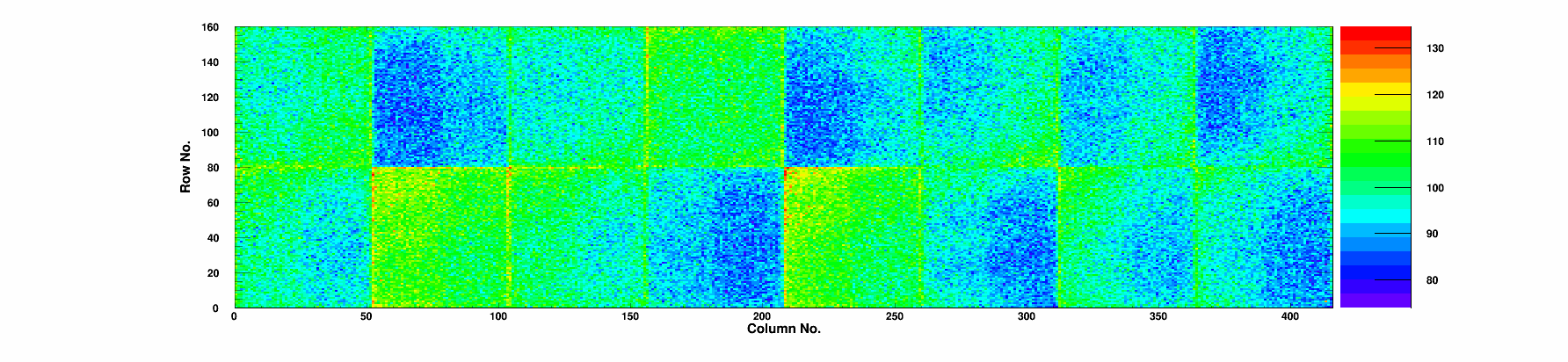

VcalThrWidth | Vcal Thr. Width | 46.97 | e |
VcalThrWidthROCs | Vcal Thr. W. grades | 16/0/0 | |
RelGainWidth | Rel. Gain Width | 0.04 | % |
RelGainWidthROCs | Rel. Gain W. grades | 16/0/0 | |
PedestalSpread | Pedestal Spread | 1184.62 | e |
PedestalSpreadROCs | Ped. Spread grades | 16/0/0 | |
Parameter1 | Parameter1 | 0.71 | |
Parameter1ROCs | Par1 grades | 16/0/0 | |
CurrentAtVoltage150V | I(150 V) | 2.68 | μA |
CurrentVariation | I(150 V) / I(100 V) | 1.26 |
Duration | Duration | 1:26:56 | |
MinCurrent | min. Current | 0.37 | A |
MaxCurrent | max. Current | 0.478 | A |
Duration | Duration | 1:26:56 | |
MinCurrent | min. Current | 0.075 | A |
MaxCurrent | max. Current | 0.387 | A |
ModuleIa | Module Ia | 382.7 | mA |
Temperature | Temp. while test | 17.00 +/- 0.07 | °C |
Duration | Duration of test | 1:28:05 |
ROC | Grade | Total | Dead | Mask | Bumps | Trim(Bits) | Address | Noise | Thresh | Gain | Ped | Par1 | Mean noise | Thr [e-] | Thr width | Rel gain width | Ped spread |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chip 0 |
A
|
3
|
0
|
0
|
3
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
134.77
|
1752 |
46
|
0.032
|
1074
|
Chip 1 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
136.87
|
1750 |
45
|
0.031
|
1004
|
Chip 2 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
146.64
|
1754 |
49
|
0.037
|
1186
|
Chip 3 |
A
|
2
|
0
|
0
|
1
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
137.25
|
1750 |
48
|
0.035
|
1285
|
Chip 4 |
A
|
2
|
1
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
140.26
|
1751 |
46
|
0.050
|
1286
|
Chip 5 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
138.63
|
1750 |
46
|
0.034
|
1062
|
Chip 6 |
A
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
141.49
|
1752 |
50
|
0.042
|
1301
|
Chip 7 |
A
|
2
|
0
|
0
|
1
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
141.55
|
1748 |
45
|
0.037
|
1244
|
Chip 8 |
A
|
2
|
0
|
0
|
2
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
140.22
|
1750 |
49
|
0.037
|
1158
|
Chip 9 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
131.71
|
1749 |
50
|
0.034
|
1229
|
Chip 10 |
A
|
1
|
0
|
0
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
134.60
|
1750 |
49
|
0.039
|
1410
|
Chip 11 |
A
|
3
|
0
|
0
|
3
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
133.49
|
1751 |
45
|
0.036
|
1026
|
Chip 12 |
A
|
2
|
0
|
0
|
2
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
130.52
|
1751 |
46
|
0.040
|
1284
|
Chip 13 |
A
|
4
|
0
|
0
|
4
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
128.78
|
1752 |
46
|
0.030
|
1294
|
Chip 14 |
A
|
1
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
0
|
0
|
132.26
|
1752 |
46
|
0.032
|
975
|
Chip 15 |
A
|
8
|
0
|
0
|
8
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
130.79
|
1750 |
47
|
0.028
|
1137
|
ModifiedGrading | Modified Grading | True | |
GradingParameters_leakageCurrentRatioB | leakageCurrentRatioB | 20 => -111 |
nTBMs | n | 1 | |
TBMType | Type | tbm09c | |
Core0a_basea | Core 0a base a | 0xed | |
Core0a_basee | Core 0a base e | 0xf0 | |
Core0b_basea | Core 0b base a | 0xed | |
Core0b_basee | Core 0b base e | 0x00 | |
RocDelay_Ch0 | Roc Delay Ch0 | 5 | |
RocDelay_Ch1 | Roc Delay Ch1 | 5 | |
RocDelay_Ch2 | Roc Delay Ch2 | 5 | |
RocDelay_Ch3 | Roc Delay Ch3 | 5 | |
Phase400 | Phase 400 | 4 | |
Phase160 | Phase 160 | 7 |
nCriticals | # Criticals | 0 | |
nErrors | # Errors | 0 | |
nWarnings | # Warnings | 0 | |
channel_0_count | Channel 0 | 0 | |
channel_1_count | Channel 1 | 0 | |
channel_2_count | Channel 2 | 0 | |
channel_3_count | Channel 3 | 0 |
