Test Date: 2015-07-10 14:30
Analysis date: 2016-05-25 21:43
Analysis date: 2016-05-25 21:43
M2033 XRayHRQualification
Summary
| Module | Module | M2033 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 50 | |
| BumpBondingDefects | Bump Bonding Defects | 49 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

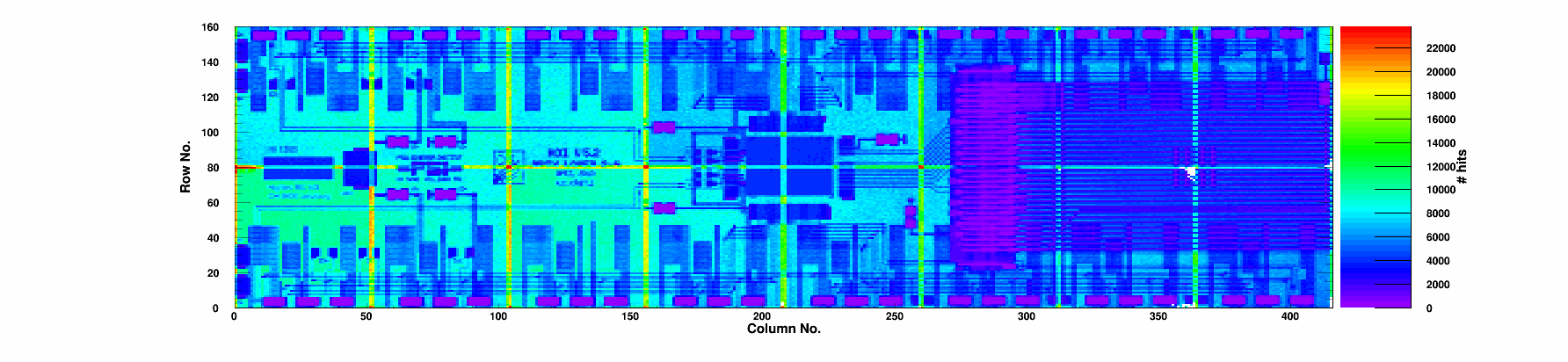

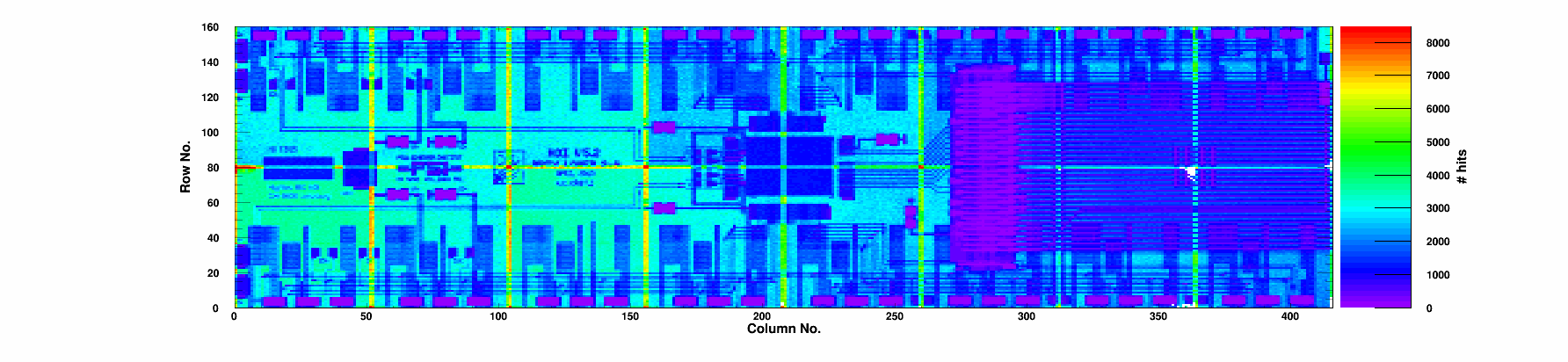

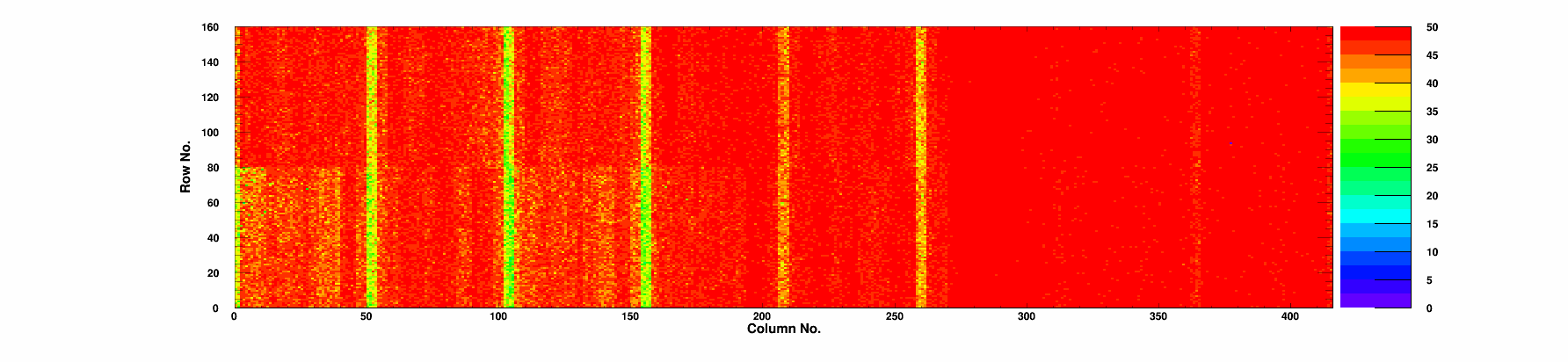

| Efficiency | Efficiency 50/120 | 99.87/99.31 | % |
| Noise | Mean Noise | 159 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
7 | 0 | 99.88 | 99.24 | 1.52 | 96.3 | 6 | 33.0 | 0/0 | 0 | 1985 | 157 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.32 | 0.77 | 97.5 | 0 | 32.9 | 0/0 | 0 | 1931 | 151 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.25 | 0.75 | 83.5 | 0 | 27.5 | 0/0 | 0 | 1902 | 151 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.34 | 0.38 | 149.1 | 0 | 51.9 | 0/0 | 0 | 2009 | 162 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.36 | 0.6 | 142.3 | 0 | 48.4 | 0/0 | 0 | 2005 | 150 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.41 | 0.52 | 184.9 | 0 | 65.2 | 0/0 | 0 | 2106 | 157 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.37 | 0.43 | 176.8 | 0 | 61.7 | 0/0 | 0 | 2069 | 158 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.43 | 0.33 | 173.2 | 0 | 60.4 | 0/0 | 0 | 2064 | 155 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.26 | 1.2 | 201.7 | 0 | 69.2 | 0/0 | 0 | 2124 | 177 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.29 | 0.83 | 178.1 | 0 | 61.8 | 0/0 | 0 | 2102 | 159 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.32 | 0.49 | 209.4 | 0 | 73.7 | 0/0 | 0 | 2179 | 165 | 0 |
|
Chip 11
|
A
|
2 | 0 | 99.87 | 99.30 | 0.61 | 163.9 | 2 | 56.4 | 0/0 | 0 | 2069 | 159 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.87 | 99.32 | 0.39 | 147.8 | 1 | 51.0 | 0/0 | 0 | 2063 | 163 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.28 | 0.4 | 87.8 | 0 | 29.4 | 0/0 | 0 | 1931 | 153 | 0 |
|
Chip 14
|
A
|
32 | 0 | 99.85 | 99.31 | 0.71 | 103.6 | 32 | 35.3 | 0/0 | 0 | 1964 | 173 | 0 |
|
Chip 15
|
A
|
8 | 0 | 99.85 | 99.23 | 1.09 | 98.1 | 8 | 33.8 | 0/0 | 0 | 1947 | 160 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-07-10 | |
| TestTime | Test Time | 14:30 | |
| TestDuration | Duration | 1:56:48 | |
| pXar | pXar version | v2.2.5+45~gbf85984 | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 2 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
