Test Date: 2015-07-07 08:06
Analysis date: 2016-05-25 21:25
M2030 XRayHRQualification
Chips

Overview

Summary
Module Module M2030
Grade Grade B
ManualGrade Manual Grade None
ROCGrades ROC Grades A/B/C 11/5/0
PixelDefects Total Pixel Defects 567
BumpBondingDefects Bump Bonding Defects 561
NoisyPixels Noisy Pixels 4
HotPixelDefects Hot Pixels 2
ROCsWithReadoutProblems ROCs with r/o problems 0
ROCsWithUniformityProblems ROCs with unif problems 0
Efficiency Efficiency 50/120 99.86/99.27 %
Noise Mean Noise 159 e-
Summary ROCs
ROC Grade Def DC Eff 50 Eff 120 Eff chi2 Rate "50" Rate "150" BB def R/O Unif. Thr [e-] "100" Noise "100" Noisy pix
Chip 0
B
 60 0 99.83 99.04 0.82 29.4 86.0 59 0/0 0 1930 154 1
Chip 1
A
 28 0 99.86 99.23 0.84 31.2 92.2 28 0/0 0 2002 155 0
Chip 2
A
 10 0 99.84 99.04 0.9 28.2 84.3 10 0/0 0 1976 151 0
Chip 3
A
 27 0 99.85 99.32 0.63 59.3 168.8 27 0/0 0 2188 159 0
Chip 4
A
 17 0 99.87 99.29 1.13 55.7 158.5 17 0/0 0 2180 154 0
Chip 5
A
 4 0 99.89 99.31 0.38 76.3 214.8 4 0/0 0 2260 154 0
Chip 6
A
 37 0 99.85 99.29 0.95 67.9 191.8 37 0/0 0 2241 156 0
Chip 7
B
 67 0 99.86 99.35 0.75 74.3 211.9 66 0/0 0 2278 161 0
Chip 8
B
 43 0 99.87 99.37 0.59 75.6 216.3 39 0/0 0 2156 162 3
Chip 9
A
 28 0 99.87 99.27 0.99 74.9 213.7 28 0/0 0 2246 159 0
Chip 10
A
 27 0 99.83 99.21 0.97 74.2 208.8 27 0/0 0 2236 163 0
Chip 11
A
 37 0 99.89 99.35 0.5 60.5 172.5 37 0/0 0 2168 163 0
Chip 12
A
 18 0 99.86 99.30 0.45 59.8 170.6 18 0/0 0 2197 166 0
Chip 13
A
 21 0 99.87 99.28 0.38 34.3 102.0 21 0/0 0 2037 172 0
Chip 14
B
 92 0 99.87 99.31 0.73 33.0 97.5 92 0/0 0 2006 166 0
Chip 15
B
 51 0 99.87 99.33 0.57 30.6 89.5 51 0/0 0 1982 155 0
Efficiency at 50 MHz/cm2
Efficiency at 120 MHz/cm2
BB defects 50
BB defects 150
Noise 100

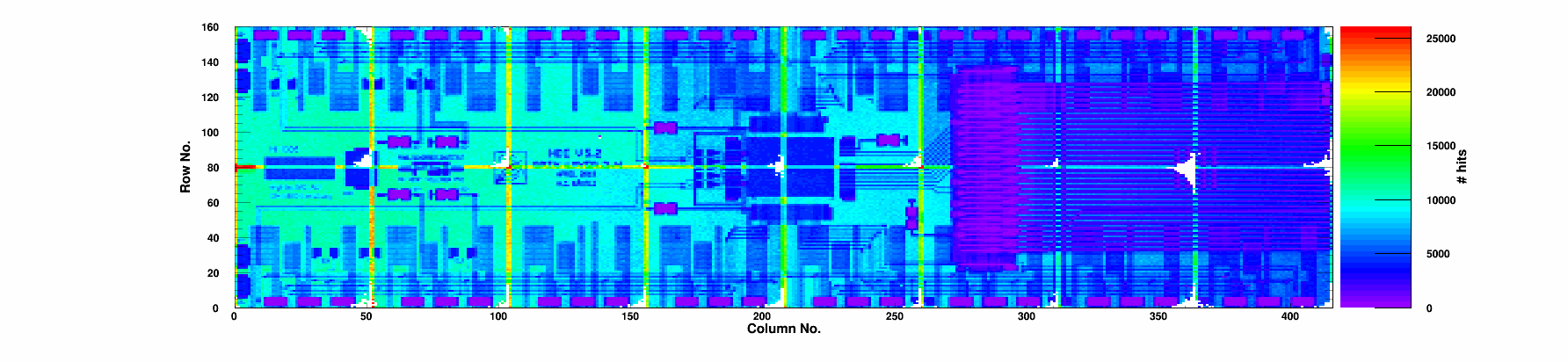

Hit Map 50
Hits distribution 50 inner/edge/corner

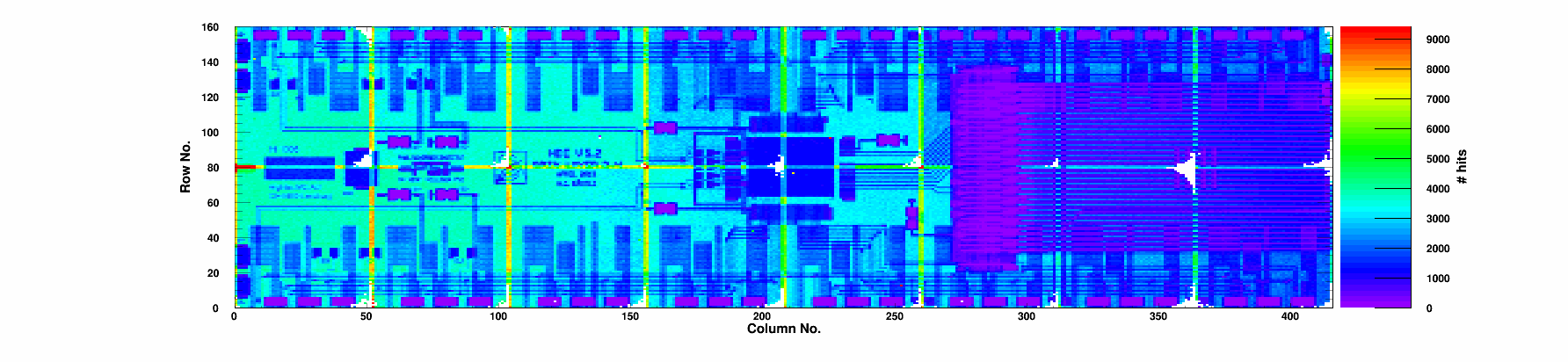

Hit Map 150
Hits distribution 150 inner/edge/corner

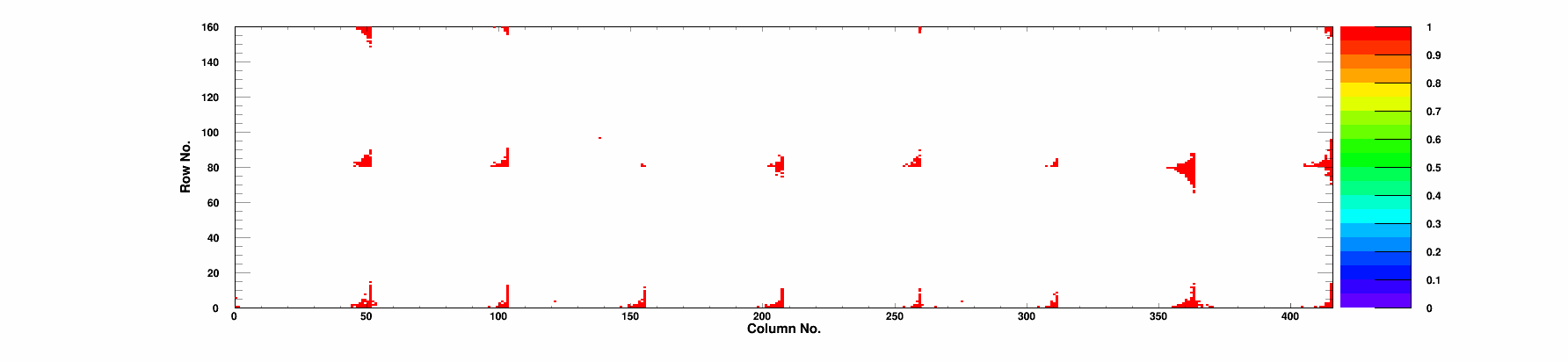

Bump Bonding Defects 50
BB defects 50
Bump Bonding Defects 150
BB defects 150
Masked Hot Pixels 50
Hot pixels 50
Masked Hot Pixels 150
Hot pixels 150

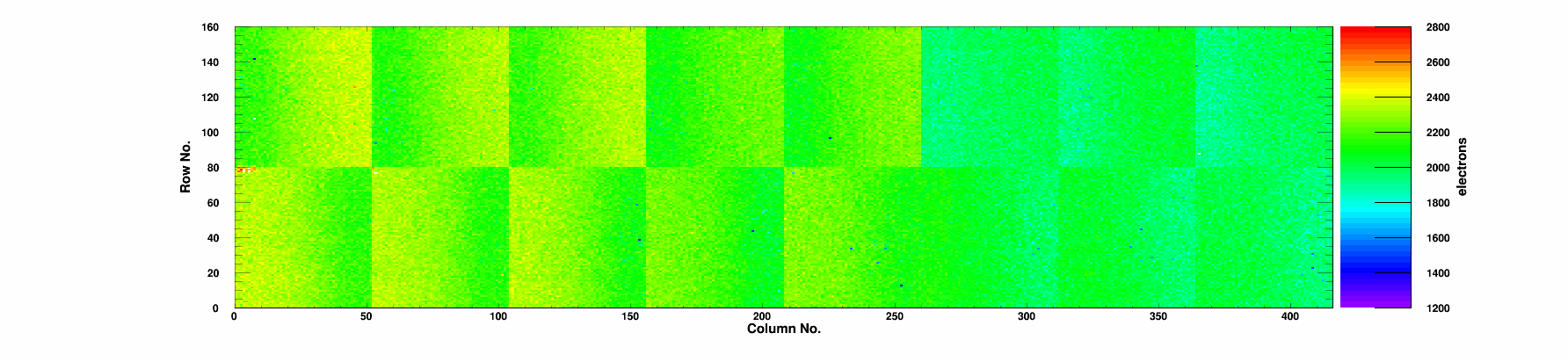

Threshold 100
Threshold distribution 100
Noise 100
Noise distribution 100
Pixel Alive Map
Dead/inefficient pixels
HR Efficiency Map 50
Efficiency distribution 50
HR Efficiency Map 100
Efficiency distribution 100
HR Efficiency Map 150
Efficiency distribution 150
HR Efficiency Map 200
Efficiency distribution 200
HR Efficiency Map 250
Efficiency distribution 250
Retrimmed Hot Pixels 0
Retri Hot Pix 0
Setup
TestCenter Test Center ETHZ
TestDate Test Date 2015-07-07
TestTime Test Time 08:06
TestDuration Duration 0:24:50
pXar pXar version v2.2.5+45~gbf85984
DTB_FW DTB FW 4.0
Errors
nCriticals # Criticals 0
nErrors # Errors 4
nWarnings # Warnings 1
channel_0_count Channel 0 0
channel_1_count Channel 1 0
channel_2_count Channel 2 0
channel_3_count Channel 3 0
message_eventid_count Event ID mismatch 2
message_tokenchain_count Token Chain Length 2
message_readback_count Readback start marker 1
Logfile

Overview

MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
