Test Date: 2015-08-21 17:53
Analysis date: 2016-05-25 20:58
Analysis date: 2016-05-25 20:58
M2025 XRayHRQualification
Summary
| Module | Module | M2025 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 26 | |
| BumpBondingDefects | Bump Bonding Defects | 25 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

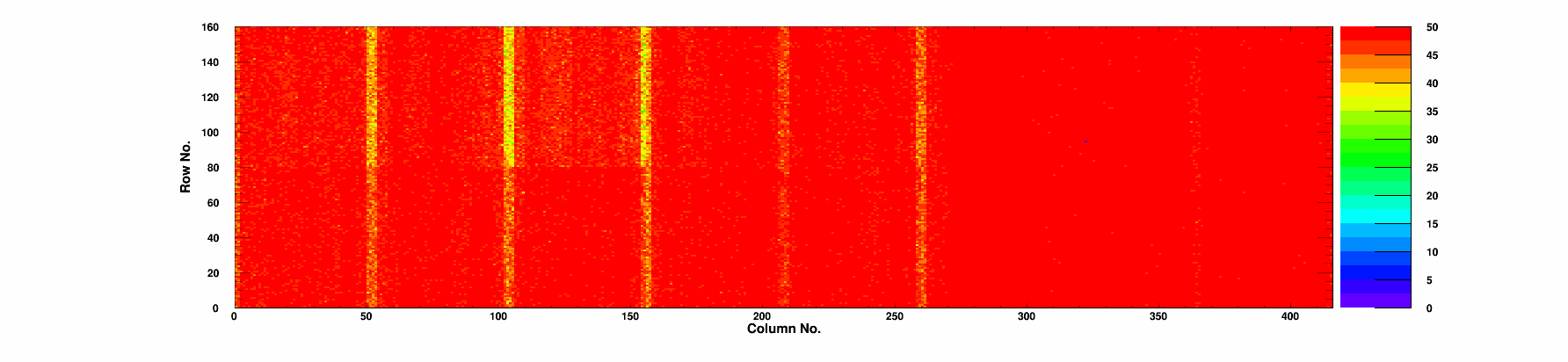

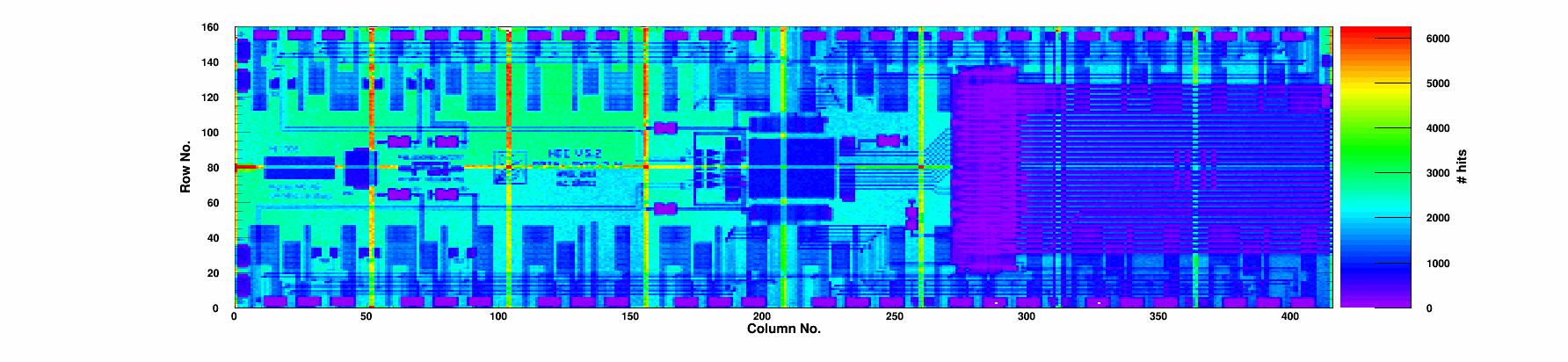

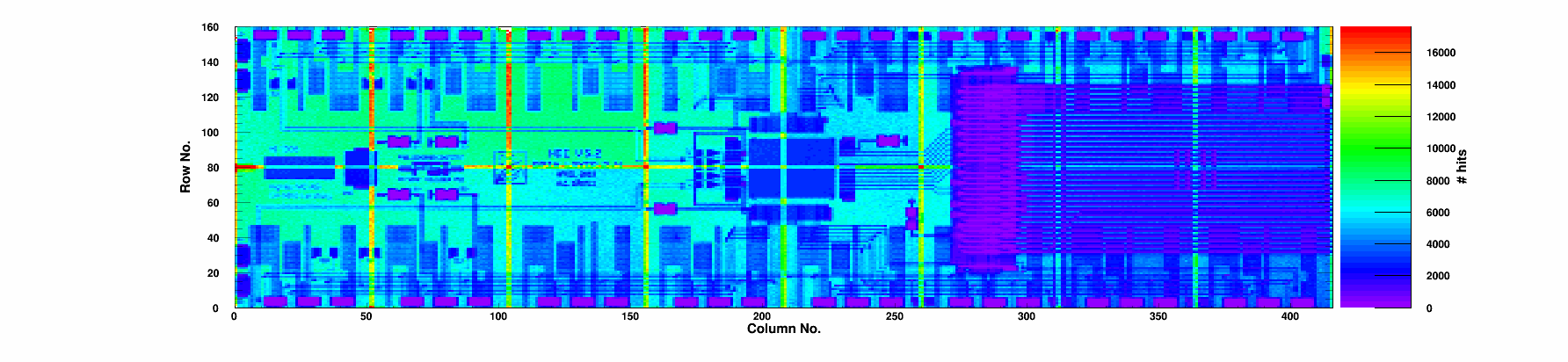

| Efficiency | Efficiency 50/120 | 99.86/99.25 | % |
| Noise | Mean Noise | 161 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.22 | 0.59 | 81.4 | 0 | 27.6 | 0/0 | 0 | 1946 | 174 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.86 | 99.24 | 0.92 | 80.0 | 0 | 26.8 | 0/0 | 0 | 1963 | 168 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 99.30 | 0.6 | 76.4 | 0 | 25.4 | 0/0 | 0 | 1905 | 171 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.83 | 99.03 | 0.94 | 112.5 | 0 | 38.5 | 0/0 | 0 | 2025 | 150 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.36 | 0.41 | 136.7 | 0 | 47.4 | 0/0 | 0 | 2081 | 160 | 0 |
|
Chip 5
|
A
|
5 | 0 | 99.88 | 99.30 | 0.38 | 174.8 | 5 | 61.0 | 0/0 | 0 | 2154 | 172 | 0 |
|
Chip 6
|
A
|
10 | 0 | 99.87 | 99.31 | 1.1 | 152.9 | 10 | 53.0 | 0/0 | 0 | 2091 | 164 | 0 |
|
Chip 7
|
A
|
9 | 0 | 99.85 | 99.34 | 0.5 | 153.9 | 9 | 52.9 | 0/0 | 0 | 2098 | 161 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.87 | 99.38 | 0.39 | 141.1 | 1 | 48.5 | 0/0 | 0 | 2087 | 159 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.35 | 0.57 | 133.4 | 0 | 46.0 | 0/0 | 0 | 2087 | 161 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.89 | 99.39 | 0.43 | 130.1 | 0 | 45.3 | 0/0 | 0 | 2076 | 162 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.34 | 0.54 | 121.9 | 0 | 42.0 | 0/0 | 0 | 2073 | 157 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.32 | 0.87 | 115.3 | 0 | 39.4 | 0/0 | 0 | 2042 | 160 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.29 | 0.62 | 67.0 | 0 | 22.2 | 0/0 | 0 | 1937 | 160 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 98.99 | 0.28 | 62.0 | 0 | 20.3 | 0/0 | 0 | 1922 | 151 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 98.92 | 0.64 | 65.9 | 0 | 22.0 | 0/0 | 0 | 1913 | 150 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-21 | |
| TestTime | Test Time | 17:53 | |
| TestDuration | Duration | 1:26:58 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 3 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 3 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_tokenchain_count | Token Chain Length | 1 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
