Test Date: 2016-11-14 14:49
Analysis date: 2016-11-14 15:36
Analysis date: 2016-11-14 15:36

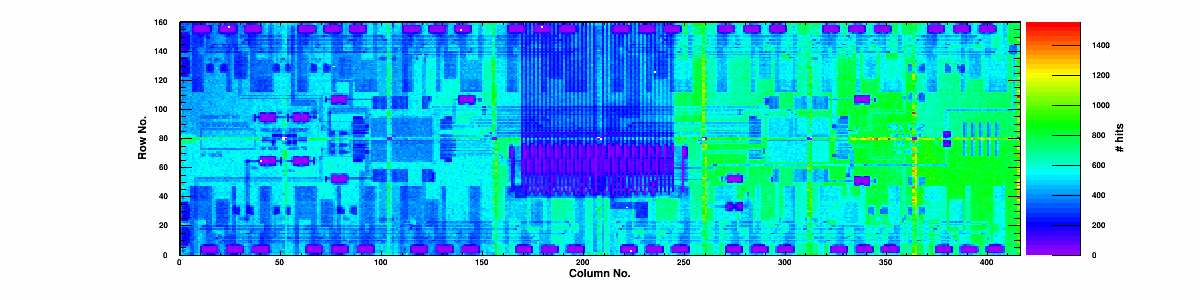

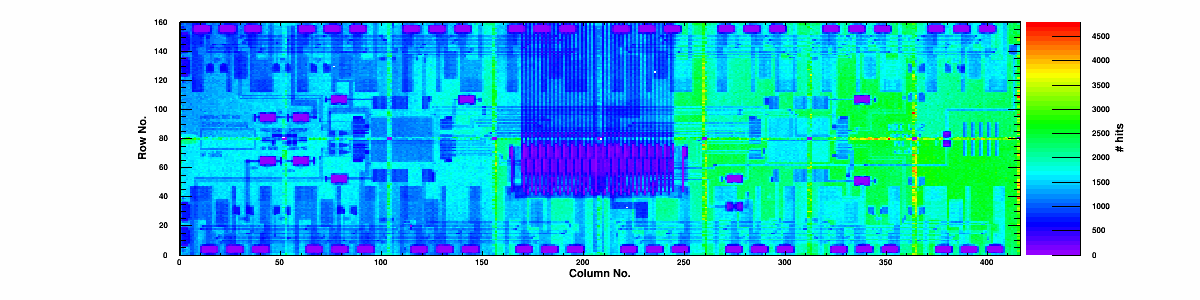

M1140 XRayHRQualification
Summary
| Module | Module | M1140 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 3 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.55 | % |
| Noise | Mean Noise | 360 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.83 | 99.60 | 0.28 | 224.3 | 0 | 73.0 | 0/0 | 0 | 3742 | 349 | 1025 |
|
Chip 1
|
A
|
0 | 0 | 99.81 | 99.58 | 0.32 | 235.7 | 0 | 77.3 | 0/0 | 0 | 3641 | 376 | 1399 |
|
Chip 2
|
A
|
0 | 0 | 99.83 | 99.60 | 0.33 | 209.9 | 0 | 68.6 | 0/0 | 0 | 3634 | 356 | 1147 |
|
Chip 3
|
A
|
1 | 0 | 99.81 | 99.59 | 0.28 | 160.9 | 1 | 53.2 | 0/0 | 0 | 3697 | 348 | 1008 |
|
Chip 4
|
A
|
0 | 0 | 99.80 | 99.44 | 0.3 | 126.6 | 0 | 42.0 | 0/0 | 0 | 3773 | 316 | 631 |
|
Chip 5
|
A
|
0 | 0 | 99.81 | 99.55 | 0.26 | 170.6 | 0 | 56.4 | 0/0 | 0 | 3725 | 359 | 1214 |
|
Chip 6
|
A
|
1 | 0 | 99.81 | 99.69 | 0.25 | 150.9 | 0 | 50.1 | 0/0 | 0 | 3718 | 355 | 1072 |
|
Chip 7
|
A
|
0 | 0 | 99.82 | 99.43 | 0.24 | 141.7 | 0 | 47.1 | 0/0 | 0 | 3748 | 343 | 918 |
|
Chip 8
|
A
|
0 | 0 | 99.82 | 99.48 | 0.33 | 159.9 | 0 | 52.5 | 0/0 | 0 | 3701 | 367 | 1319 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.46 | 0.29 | 158.8 | 0 | 52.8 | 0/0 | 0 | 3685 | 378 | 1454 |
|
Chip 10
|
A
|
0 | 0 | 99.81 | 99.54 | 0.26 | 164.9 | 0 | 54.3 | 0/0 | 0 | 3470 | 348 | 968 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.49 | 0.2 | 140.5 | 0 | 46.8 | 0/0 | 0 | 3722 | 350 | 1096 |
|
Chip 12
|
A
|
1 | 0 | 99.82 | 99.60 | 0.22 | 145.8 | 1 | 48.5 | 0/0 | 0 | 3699 | 358 | 1130 |
|
Chip 13
|
A
|
0 | 0 | 99.81 | 99.54 | 0.32 | 222.2 | 0 | 73.3 | 0/0 | 0 | 3640 | 383 | 1542 |
|
Chip 14
|
A
|
0 | 0 | 99.81 | 99.57 | 0.31 | 236.0 | 0 | 77.5 | 0/0 | 0 | 3651 | 376 | 1391 |
|
Chip 15
|
A
|
0 | 0 | 99.84 | 99.57 | 0.31 | 276.0 | 0 | 90.2 | 0/0 | 0 | 3643 | 390 | 1618 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-14 | |
| TestTime | Test Time | 14:49 | |
| TestDuration | Duration | 0:38:7 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
v1.1.1-1-g54fa876 on branch master
