Test Date: 2016-11-14 14:08
Analysis date: 2016-11-14 14:57
Analysis date: 2016-11-14 14:57
M1136 XRayHRQualification
Summary
| Module | Module | M1136 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 1 | |
| BumpBondingDefects | Bump Bonding Defects | 1 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.83/99.58 | % |
| Noise | Mean Noise | 367 | e- |

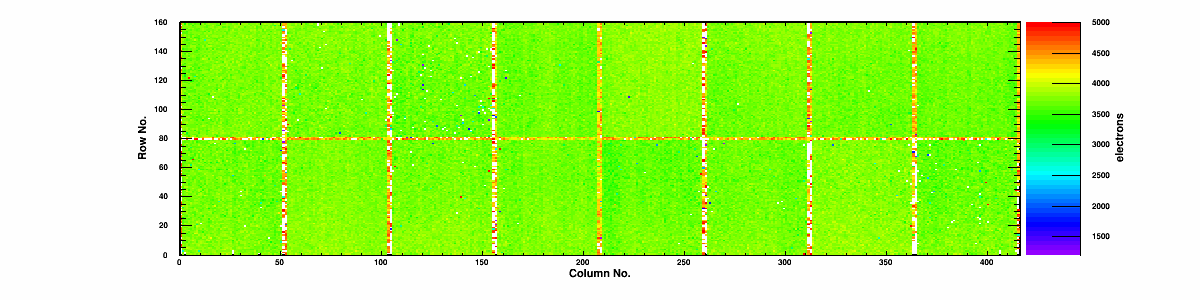

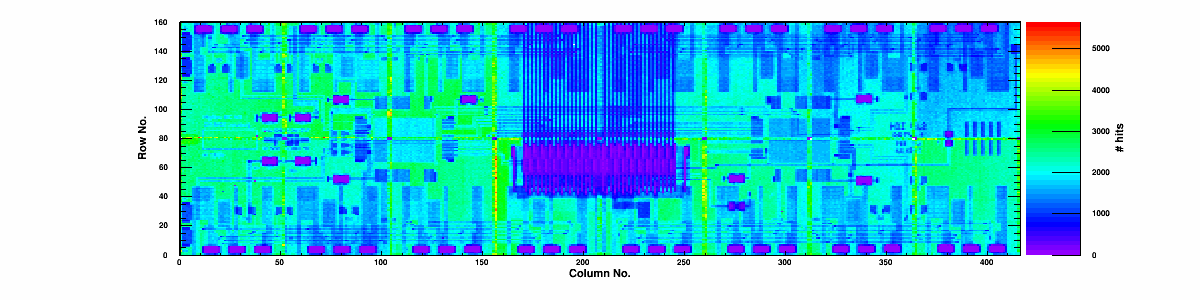

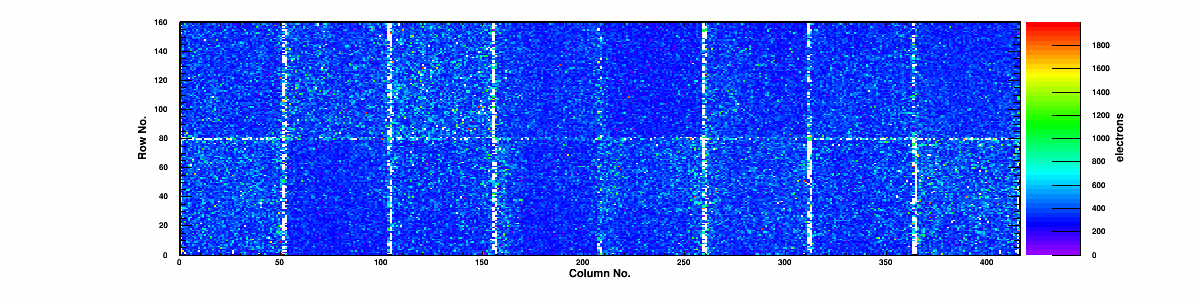

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.83 | 99.55 | 0.19 | 180.0 | 0 | 60.1 | 0/0 | 0 | 3708 | 350 | 988 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 99.57 | 0.29 | 195.2 | 0 | 65.8 | 0/0 | 0 | 3698 | 359 | 1157 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.64 | 0.24 | 212.1 | 0 | 69.5 | 0/0 | 0 | 3707 | 351 | 1058 |
|
Chip 3
|
A
|
0 | 0 | 99.85 | 99.59 | 0.1 | 158.6 | 0 | 53.1 | 0/0 | 0 | 3741 | 318 | 659 |
|
Chip 4
|
A
|
1 | 0 | 99.81 | 99.56 | 0.23 | 163.6 | 1 | 54.2 | 0/0 | 0 | 3699 | 354 | 1075 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.60 | 0.44 | 264.6 | 0 | 87.8 | 0/0 | 0 | 3544 | 412 | 1901 |
|
Chip 6
|
A
|
0 | 0 | 99.83 | 99.55 | 0.23 | 249.7 | 0 | 81.8 | 0/0 | 0 | 3666 | 387 | 1531 |
|
Chip 7
|
A
|
0 | 0 | 99.81 | 99.57 | 0.3 | 257.0 | 0 | 86.0 | 0/0 | 0 | 3693 | 365 | 1288 |
|
Chip 8
|
A
|
0 | 0 | 99.83 | 99.57 | 0.42 | 259.1 | 0 | 84.6 | 0/0 | 0 | 3388 | 393 | 1655 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.66 | 0.26 | 208.4 | 0 | 69.2 | 0/0 | 0 | 3753 | 335 | 819 |
|
Chip 10
|
A
|
0 | 0 | 99.83 | 99.60 | 0.34 | 251.0 | 0 | 82.0 | 0/0 | 0 | 3656 | 364 | 1242 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.54 | 0.22 | 187.0 | 0 | 61.7 | 0/0 | 0 | 3690 | 345 | 1003 |
|
Chip 12
|
A
|
0 | 0 | 99.84 | 99.56 | 0.21 | 173.9 | 0 | 57.4 | 0/0 | 0 | 3639 | 382 | 1487 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.56 | 0.25 | 240.9 | 0 | 79.5 | 0/0 | 0 | 3661 | 380 | 1465 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.57 | 0.24 | 222.6 | 0 | 73.6 | 0/0 | 0 | 3697 | 365 | 1258 |
|
Chip 15
|
A
|
0 | 0 | 99.81 | 99.57 | 0.33 | 262.2 | 0 | 86.8 | 0/0 | 0 | 3570 | 404 | 1771 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-14 | |
| TestTime | Test Time | 14:08 | |
| TestDuration | Duration | 0:37:10 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
v1.1.1-1-g54fa876 on branch master
