Test Date: 2016-11-14 13:22
Analysis date: 2016-11-14 14:11
Analysis date: 2016-11-14 14:11
M1135 XRayHRQualification
Summary
| Module | Module | M1135 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 1 | |
| BumpBondingDefects | Bump Bonding Defects | 0 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.60 | % |

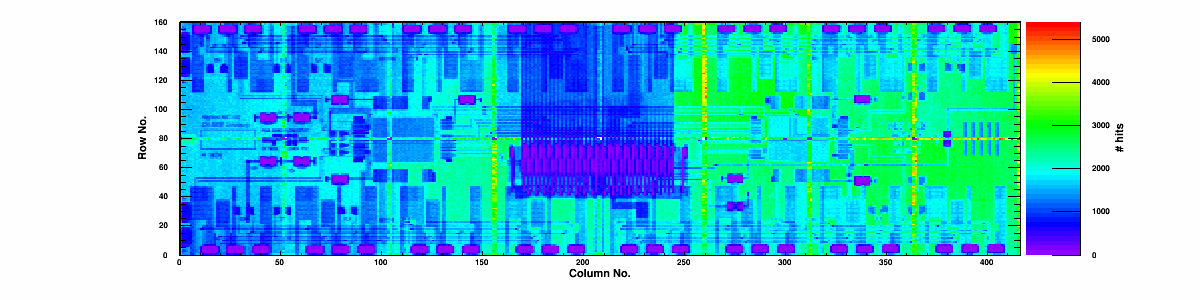

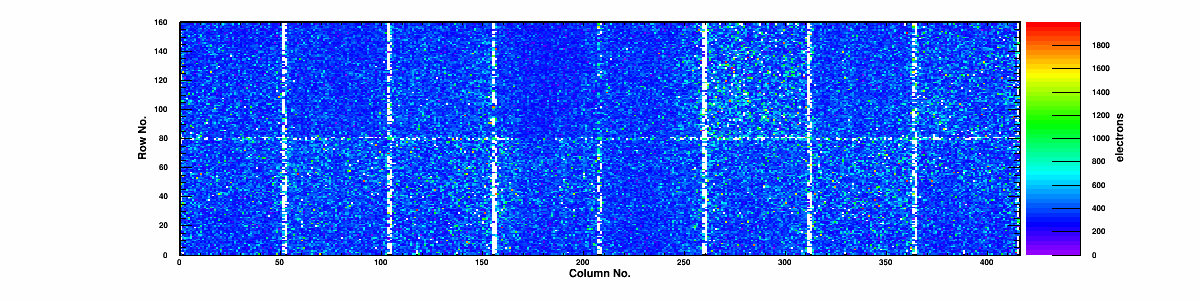

| Noise | Mean Noise | 382 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.81 | 99.55 | 0.29 | 263.6 | 0 | 86.9 | 0/0 | 0 | 3649 | 399 | 1764 |
|
Chip 1
|
A
|
0 | 0 | 99.81 | 99.62 | 0.34 | 245.5 | 0 | 81.7 | 0/0 | 0 | 3633 | 380 | 1497 |
|
Chip 2
|
A
|
1 | 0 | 99.82 | 99.57 | 0.36 | 281.0 | 0 | 92.8 | 0/0 | 0 | 3364 | 426 | 2090 |
|
Chip 3
|
A
|
0 | 0 | 99.82 | 99.55 | 0.27 | 187.2 | 0 | 63.0 | 0/0 | 0 | 3665 | 368 | 1278 |
|
Chip 4
|
A
|
0 | 0 | 99.82 | 99.76 | 0.2 | 131.1 | 0 | 44.2 | 0/0 | 0 | 3736 | 338 | 875 |
|
Chip 5
|
A
|
0 | 0 | 99.81 | 99.67 | 0.24 | 195.9 | 0 | 65.0 | 0/0 | 0 | 3610 | 382 | 1503 |
|
Chip 6
|
A
|
0 | 0 | 99.79 | 99.62 | 0.23 | 159.9 | 0 | 53.8 | 0/0 | 0 | 3644 | 354 | 1082 |
|
Chip 7
|
A
|
0 | 0 | 99.82 | 99.63 | 0.21 | 173.9 | 0 | 57.5 | 0/0 | 0 | 3438 | 364 | 1244 |
|
Chip 8
|
A
|
0 | 0 | 99.82 | 99.83 | 0.21 | 167.0 | 0 | 56.0 | 0/0 | 0 | 3675 | 375 | 1442 |
|
Chip 9
|
A
|
0 | 0 | 99.83 | 99.38 | 0.24 | 174.9 | 0 | 58.4 | 0/0 | 0 | 3593 | 395 | 1662 |
|
Chip 10
|
A
|
0 | 0 | 99.81 | 99.64 | 0.26 | 220.8 | 0 | 72.8 | 0/0 | 0 | 3570 | 397 | 1746 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.54 | 0.28 | 161.5 | 0 | 54.1 | 0/0 | 0 | 3595 | 387 | 1580 |
|
Chip 12
|
A
|
0 | 0 | 99.81 | 99.53 | 0.23 | 155.4 | 0 | 52.4 | 0/0 | 0 | 3631 | 368 | 1287 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.59 | 0.24 | 236.8 | 0 | 78.4 | 0/0 | 0 | 3594 | 395 | 1680 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.60 | 0.4 | 260.7 | 0 | 86.1 | 0/0 | 0 | 3579 | 405 | 1849 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 99.57 | 0.35 | 287.4 | 0 | 96.2 | 0/0 | 0 | 3658 | 378 | 1473 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-14 | |
| TestTime | Test Time | 13:22 | |
| TestDuration | Duration | 0:38:23 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 13 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
