Test Date: 2016-11-07 13:44
Analysis date: 2016-11-07 16:01
Analysis date: 2016-11-07 16:01
M1122 XRayHRQualification
Summary
| Module | Module | M1122 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 3 | |
| BumpBondingDefects | Bump Bonding Defects | 3 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.81/99.56 | % |
| Noise | Mean Noise | 344 | e- |

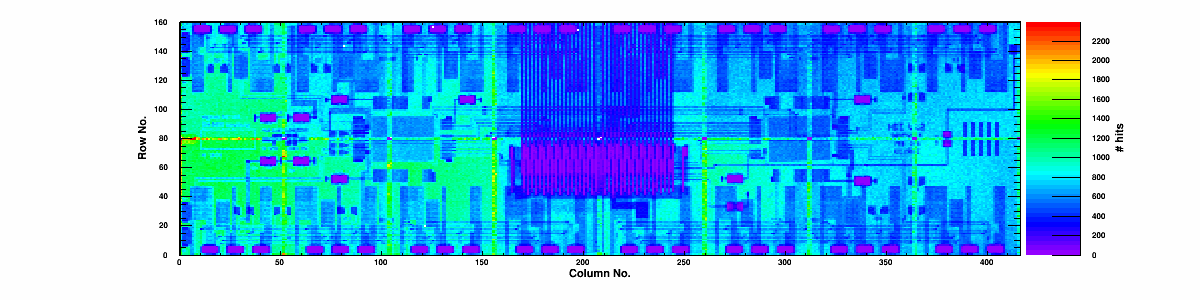

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.81 | 99.56 | 0.3 | 226.3 | 0 | 76.4 | 0/0 | 0 | 3731 | 341 | 964 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 99.60 | 0.2 | 205.7 | 0 | 69.4 | 0/0 | 0 | 3544 | 332 | 866 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.61 | 0.24 | 212.1 | 0 | 71.6 | 0/0 | 0 | 3743 | 338 | 891 |
|
Chip 3
|
A
|
1 | 0 | 99.80 | 99.49 | 0.29 | 168.8 | 1 | 56.5 | 0/0 | 0 | 3789 | 307 | 490 |
|
Chip 4
|
A
|
1 | 0 | 99.82 | 99.66 | 0.24 | 165.4 | 1 | 55.2 | 0/0 | 0 | 3790 | 314 | 596 |
|
Chip 5
|
A
|
1 | 0 | 99.81 | 99.57 | 0.29 | 253.3 | 1 | 85.1 | 0/0 | 0 | 3724 | 357 | 1197 |
|
Chip 6
|
A
|
0 | 0 | 99.83 | 99.58 | 0.23 | 231.9 | 0 | 76.9 | 0/0 | 0 | 3785 | 335 | 884 |
|
Chip 7
|
A
|
0 | 0 | 99.78 | 99.50 | 0.44 | 298.2 | 0 | 101.9 | 0/0 | 0 | 3708 | 372 | 1432 |
|
Chip 8
|
A
|
0 | 0 | 99.80 | 99.55 | 0.49 | 353.0 | 0 | 116.7 | 0/0 | 0 | 3760 | 382 | 1527 |
|
Chip 9
|
A
|
0 | 0 | 99.81 | 99.57 | 0.43 | 292.3 | 0 | 96.8 | 0/0 | 0 | 3744 | 376 | 1492 |
|
Chip 10
|
A
|
0 | 0 | 99.81 | 99.55 | 0.28 | 317.8 | 0 | 103.8 | 0/0 | 0 | 3733 | 367 | 1393 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.49 | 0.2 | 167.5 | 0 | 56.8 | 0/0 | 0 | 3850 | 299 | 429 |
|
Chip 12
|
A
|
0 | 0 | 99.82 | 99.61 | 0.26 | 177.9 | 0 | 59.7 | 0/0 | 0 | 3800 | 321 | 659 |
|
Chip 13
|
A
|
0 | 0 | 99.82 | 99.57 | 0.28 | 273.2 | 0 | 89.0 | 0/0 | 0 | 3743 | 364 | 1257 |
|
Chip 14
|
A
|
0 | 0 | 99.81 | 99.50 | 0.36 | 233.8 | 0 | 77.3 | 0/0 | 0 | 3723 | 353 | 1130 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 99.58 | 0.28 | 248.3 | 0 | 83.0 | 0/0 | 0 | 3650 | 338 | 937 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-07 | |
| TestTime | Test Time | 13:44 | |
| TestDuration | Duration | 0:59:5 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 39 | |
| nWarnings | # Warnings | 6 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_readback_count | Readback start marker | 4 |
