Test Date: 2016-11-08 16:03
Analysis date: 2016-11-08 16:55
Analysis date: 2016-11-08 16:55
M1121 XRayHRQualification
Summary
| Module | Module | M1121 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 6 | |
| BumpBondingDefects | Bump Bonding Defects | 6 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.81/99.57 | % |

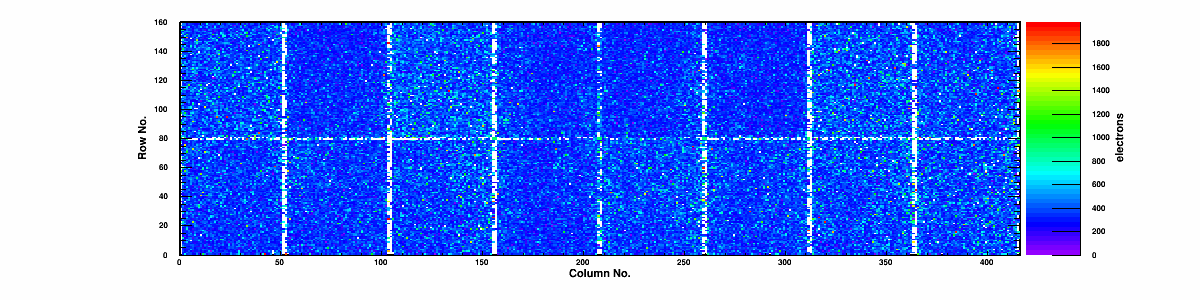

| Noise | Mean Noise | 369 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.80 | 99.51 | 0.49 | 295.5 | 0 | 98.2 | 0/0 | 0 | 3726 | 379 | 1509 |
|
Chip 1
|
A
|
0 | 0 | 99.80 | 99.55 | 0.31 | 267.4 | 0 | 86.6 | 0/0 | 0 | 3634 | 401 | 1758 |
|
Chip 2
|
A
|
1 | 0 | 99.83 | 99.60 | 0.22 | 231.4 | 1 | 76.5 | 0/0 | 0 | 3763 | 329 | 800 |
|
Chip 3
|
A
|
0 | 0 | 99.79 | 99.53 | 0.22 | 156.4 | 0 | 52.2 | 0/0 | 0 | 3767 | 340 | 935 |
|
Chip 4
|
A
|
0 | 0 | 99.81 | 99.68 | 0.25 | 152.8 | 0 | 51.4 | 0/0 | 0 | 3789 | 343 | 978 |
|
Chip 5
|
A
|
1 | 0 | 99.80 | 99.64 | 0.28 | 201.3 | 1 | 67.0 | 0/0 | 0 | 3630 | 412 | 1931 |
|
Chip 6
|
A
|
4 | 0 | 99.81 | 99.63 | 0.27 | 169.4 | 4 | 56.0 | 0/0 | 0 | 3776 | 338 | 910 |
|
Chip 7
|
A
|
0 | 0 | 99.81 | 99.44 | 0.17 | 191.0 | 0 | 62.3 | 0/0 | 0 | 3705 | 388 | 1618 |
|
Chip 8
|
A
|
0 | 0 | 99.80 | 99.69 | 0.32 | 180.9 | 0 | 60.0 | 0/0 | 0 | 3450 | 361 | 1197 |
|
Chip 9
|
A
|
0 | 0 | 99.80 | 99.70 | 0.26 | 184.3 | 0 | 61.6 | 0/0 | 0 | 3724 | 357 | 1179 |
|
Chip 10
|
A
|
0 | 0 | 99.81 | 99.56 | 0.3 | 209.8 | 0 | 69.4 | 0/0 | 0 | 3651 | 377 | 1429 |
|
Chip 11
|
A
|
0 | 0 | 99.81 | 99.53 | 0.21 | 152.5 | 0 | 51.0 | 0/0 | 0 | 3740 | 346 | 1023 |
|
Chip 12
|
A
|
0 | 0 | 99.78 | 99.55 | 0.29 | 161.2 | 0 | 54.3 | 0/0 | 0 | 3704 | 387 | 1585 |
|
Chip 13
|
A
|
0 | 0 | 99.81 | 99.54 | 0.33 | 225.6 | 0 | 75.8 | 0/0 | 0 | 3688 | 369 | 1306 |
|
Chip 14
|
A
|
0 | 0 | 99.81 | 99.51 | 0.28 | 243.1 | 0 | 80.8 | 0/0 | 0 | 3661 | 385 | 1592 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 99.52 | 0.39 | 251.8 | 0 | 82.1 | 0/0 | 0 | 3693 | 390 | 1600 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-08 | |
| TestTime | Test Time | 16:03 | |
| TestDuration | Duration | 0:38:38 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 13 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
v1.1.1-1-g54fa876 on branch master
