Test Date: 2016-11-07 10:14
Analysis date: 2016-11-07 11:02
Analysis date: 2016-11-07 11:02
M1119 XRayHRQualification
Summary
| Module | Module | M1119 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 7 | |
| BumpBondingDefects | Bump Bonding Defects | 6 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 1 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.81/99.54 | % |

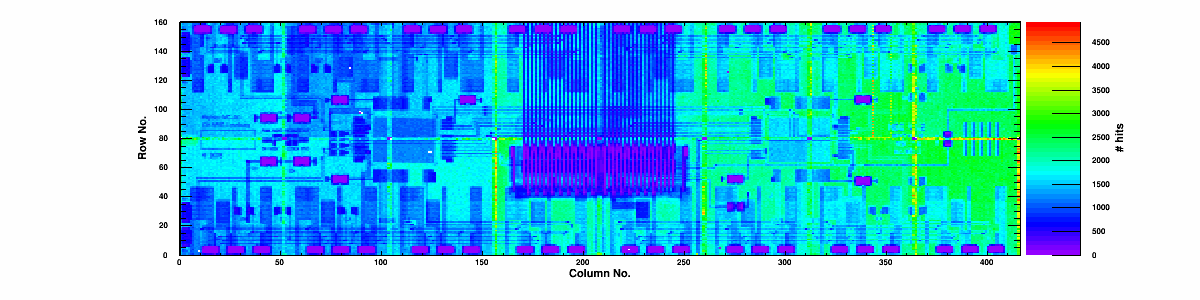

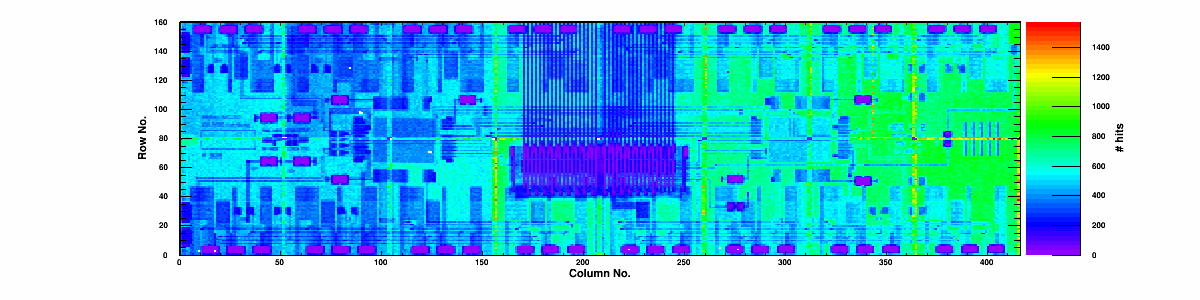

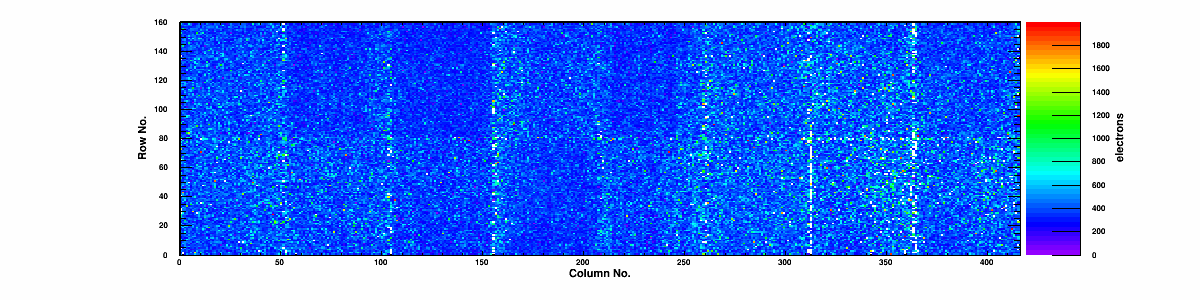

| Noise | Mean Noise | 395 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.80 | 99.51 | 0.47 | 245.1 | 0 | 78.7 | 0/0 | 0 | 3595 | 389 | 1628 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 99.51 | 0.47 | 244.1 | 0 | 77.9 | 0/0 | 0 | 3541 | 428 | 2138 |
|
Chip 2
|
A
|
0 | 0 | 99.81 | 99.57 | 0.42 | 221.7 | 0 | 71.3 | 0/0 | 0 | 3502 | 416 | 2006 |
|
Chip 3
|
A
|
0 | 0 | 99.80 | 99.61 | 0.35 | 141.4 | 0 | 45.9 | 0/0 | 0 | 3619 | 361 | 1192 |
|
Chip 4
|
A
|
0 | 0 | 99.82 | 99.51 | 0.24 | 150.1 | 0 | 49.0 | 0/0 | 0 | 3627 | 391 | 1663 |
|
Chip 5
|
A
|
0 | 0 | 99.81 | 99.65 | 0.28 | 154.8 | 0 | 50.2 | 0/0 | 0 | 3225 | 340 | 807 |
|
Chip 6
|
A
|
3 | 0 | 99.82 | 99.34 | 0.27 | 133.3 | 2 | 43.3 | 0/0 | 0 | 3668 | 357 | 1106 |
|
Chip 7
|
A
|
0 | 0 | 99.79 | 99.66 | 0.31 | 159.6 | 0 | 51.9 | 0/0 | 0 | 3552 | 397 | 1696 |
|
Chip 8
|
A
|
1 | 0 | 99.80 | 99.54 | 0.33 | 162.1 | 1 | 51.6 | 0/0 | 0 | 3556 | 410 | 1948 |
|
Chip 9
|
A
|
0 | 0 | 99.80 | 99.57 | 0.22 | 150.4 | 0 | 48.1 | 0/0 | 0 | 3625 | 402 | 1830 |
|
Chip 10
|
A
|
2 | 0 | 99.81 | 99.54 | 0.28 | 173.1 | 2 | 56.5 | 0/0 | 0 | 3661 | 372 | 1386 |
|
Chip 11
|
A
|
0 | 0 | 99.78 | 99.55 | 0.21 | 152.4 | 0 | 50.0 | 0/0 | 0 | 3536 | 370 | 1293 |
|
Chip 12
|
A
|
1 | 0 | 99.82 | 99.51 | 0.23 | 136.3 | 1 | 45.1 | 0/0 | 0 | 3589 | 403 | 1838 |
|
Chip 13
|
A
|
0 | 0 | 99.80 | 99.55 | 0.31 | 203.2 | 0 | 66.0 | 0/0 | 0 | 3513 | 429 | 2165 |
|
Chip 14
|
A
|
0 | 0 | 99.81 | 99.51 | 0.31 | 228.1 | 0 | 72.5 | 0/0 | 0 | 3408 | 436 | 2236 |
|
Chip 15
|
A
|
0 | 0 | 99.81 | 99.54 | 0.4 | 270.1 | 0 | 86.6 | 0/0 | 0 | 3488 | 421 | 2086 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-07 | |
| TestTime | Test Time | 10:14 | |
| TestDuration | Duration | 0:38:33 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-18-g6921b8e on branch L1Xray
