Test Date: 2016-11-08 10:22
Analysis date: 2016-11-08 11:39
Analysis date: 2016-11-08 11:39
M1118 XRayHRQualification
Summary
| Module | Module | M1118 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 4 | |
| BumpBondingDefects | Bump Bonding Defects | 3 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.81/99.53 | % |
| Noise | Mean Noise | 402 | e- |
Summary ROCs

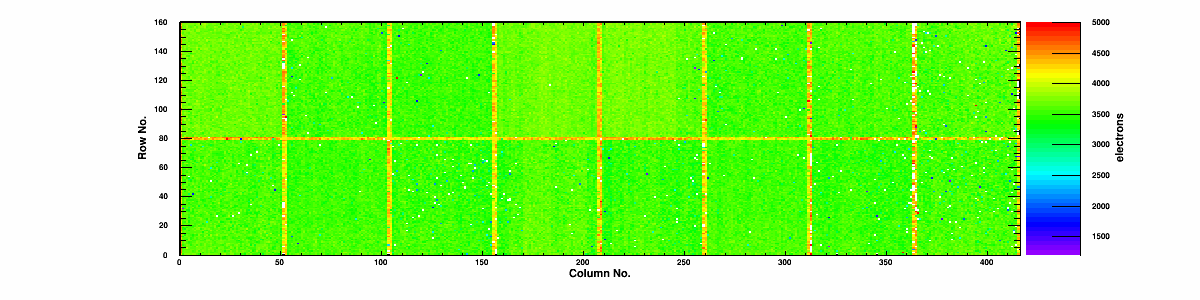

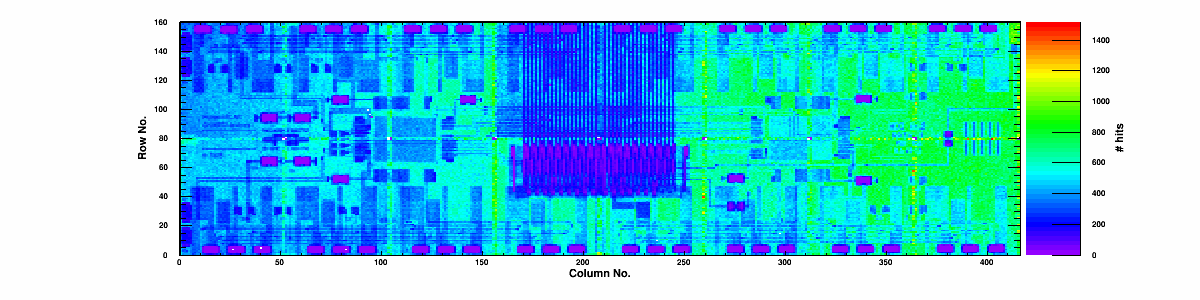

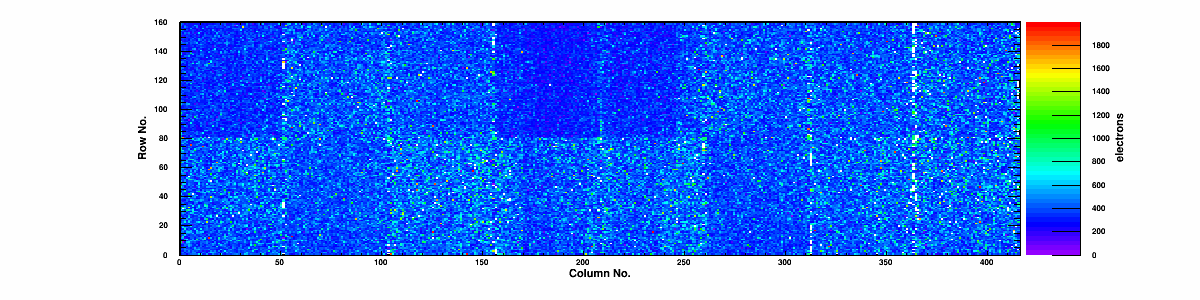

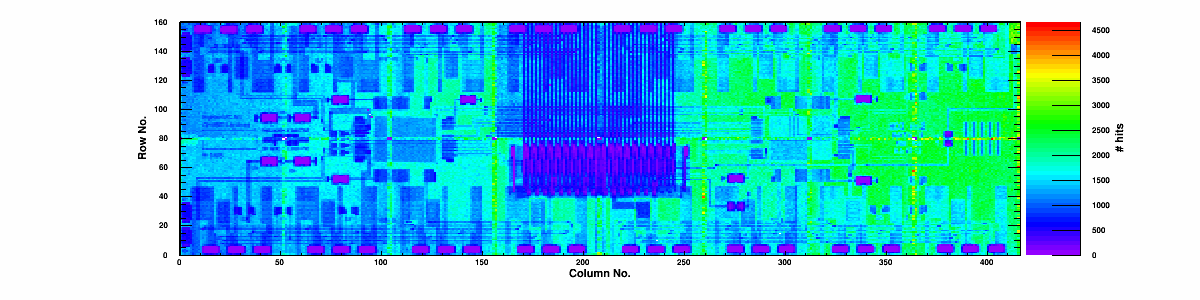

| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.82 | 99.57 | 0.32 | 246.2 | 0 | 78.3 | 0/0 | 0 | 3554 | 420 | 2041 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 99.54 | 0.32 | 221.5 | 0 | 71.1 | 0/0 | 0 | 3551 | 406 | 1858 |
|
Chip 2
|
A
|
0 | 0 | 99.81 | 99.53 | 0.31 | 224.5 | 0 | 72.2 | 0/0 | 0 | 3548 | 408 | 1936 |
|
Chip 3
|
A
|
0 | 0 | 99.80 | 99.58 | 0.31 | 134.4 | 0 | 44.3 | 0/0 | 0 | 3700 | 346 | 1006 |
|
Chip 4
|
A
|
1 | 0 | 99.84 | 99.59 | 0.23 | 113.1 | 0 | 37.4 | 0/0 | 0 | 3707 | 311 | 519 |
|
Chip 5
|
A
|
0 | 0 | 99.81 | 99.57 | 0.29 | 185.6 | 0 | 60.2 | 0/0 | 0 | 3532 | 399 | 1786 |
|
Chip 6
|
A
|
1 | 0 | 99.80 | 99.43 | 0.23 | 149.9 | 1 | 49.1 | 0/0 | 0 | 3549 | 412 | 1984 |
|
Chip 7
|
A
|
0 | 0 | 99.81 | 99.66 | 0.25 | 135.0 | 0 | 44.0 | 0/0 | 0 | 3700 | 349 | 979 |
|
Chip 8
|
A
|
0 | 0 | 99.78 | 99.48 | 0.31 | 143.9 | 0 | 47.2 | 0/0 | 0 | 3573 | 422 | 2073 |
|
Chip 9
|
A
|
0 | 0 | 99.81 | 99.60 | 0.28 | 149.9 | 0 | 49.1 | 0/0 | 0 | 3553 | 402 | 1839 |
|
Chip 10
|
A
|
0 | 0 | 99.80 | 99.52 | 0.18 | 171.1 | 0 | 56.1 | 0/0 | 0 | 3475 | 450 | 2503 |
|
Chip 11
|
A
|
0 | 0 | 99.81 | 99.50 | 0.24 | 139.0 | 0 | 45.5 | 0/0 | 0 | 3569 | 414 | 2003 |
|
Chip 12
|
A
|
1 | 0 | 99.79 | 99.49 | 0.26 | 146.6 | 1 | 47.8 | 0/0 | 0 | 3498 | 433 | 2265 |
|
Chip 13
|
A
|
1 | 0 | 99.79 | 99.50 | 0.4 | 189.3 | 1 | 61.8 | 0/0 | 0 | 3559 | 389 | 1644 |
|
Chip 14
|
A
|
0 | 0 | 99.79 | 99.47 | 0.32 | 229.9 | 0 | 74.5 | 0/0 | 0 | 3456 | 432 | 2193 |
|
Chip 15
|
A
|
0 | 0 | 99.81 | 99.53 | 0.35 | 249.6 | 0 | 79.8 | 0/0 | 0 | 3488 | 440 | 2331 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-08 | |
| TestTime | Test Time | 10:22 | |
| TestDuration | Duration | 0:37:10 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
v1.1.1-1-g54fa876 on branch master
