Test Date: 2016-11-04 15:42
Analysis date: 2016-11-04 16:31
Analysis date: 2016-11-04 16:31
M1114 XRayHRQualification
Summary
| Module | Module | M1114 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 4 | |
| BumpBondingDefects | Bump Bonding Defects | 1 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.80/99.55 | % |
| Noise | Mean Noise | 409 | e- |

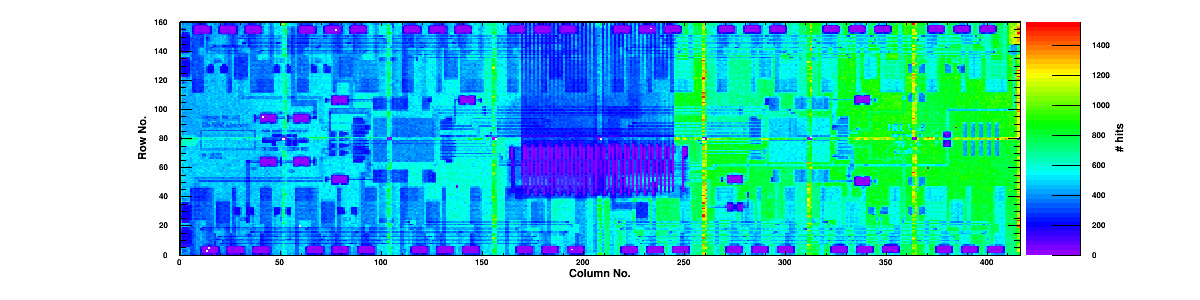

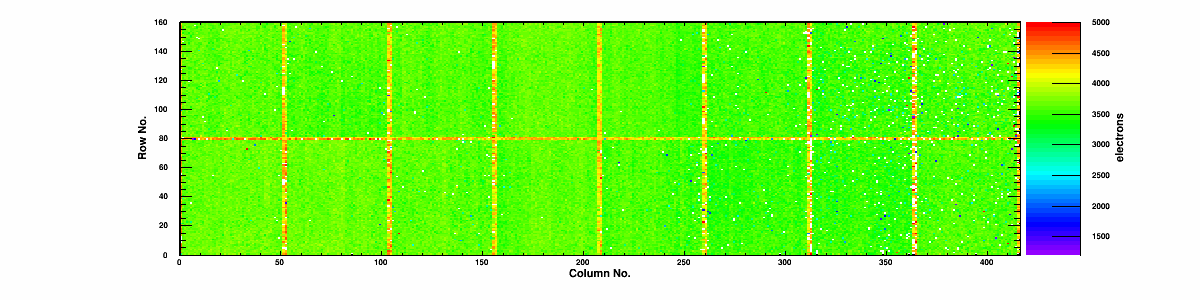

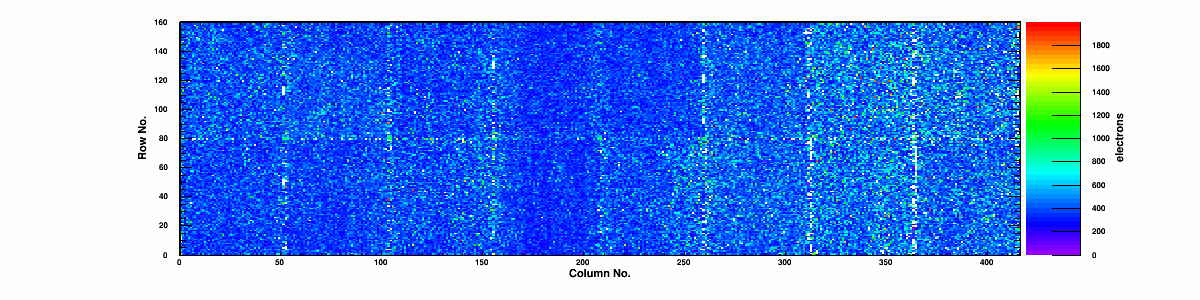

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.78 | 99.48 | 0.45 | 276.1 | 0 | 90.3 | 0/0 | 0 | 3420 | 452 | 2480 |
|
Chip 1
|
A
|
0 | 0 | 99.80 | 99.52 | 0.45 | 262.7 | 0 | 86.0 | 0/0 | 0 | 3174 | 464 | 2622 |
|
Chip 2
|
A
|
0 | 0 | 99.79 | 99.48 | 0.3 | 211.5 | 0 | 69.2 | 0/0 | 0 | 3524 | 418 | 2079 |
|
Chip 3
|
A
|
0 | 0 | 99.77 | 99.45 | 0.33 | 168.9 | 0 | 55.5 | 0/0 | 0 | 3577 | 376 | 1370 |
|
Chip 4
|
A
|
0 | 0 | 99.80 | 99.55 | 0.22 | 124.8 | 0 | 41.4 | 0/0 | 0 | 3660 | 364 | 1246 |
|
Chip 5
|
A
|
0 | 0 | 99.81 | 99.71 | 0.26 | 165.2 | 0 | 54.0 | 0/0 | 0 | 3603 | 388 | 1593 |
|
Chip 6
|
A
|
1 | 0 | 99.80 | 99.34 | 1.55 | 155.2 | 0 | 51.3 | 0/0 | 0 | 3569 | 407 | 1911 |
|
Chip 7
|
A
|
0 | 0 | 99.80 | 99.63 | 0.24 | 147.3 | 0 | 48.4 | 0/0 | 0 | 3628 | 406 | 1875 |
|
Chip 8
|
A
|
0 | 0 | 99.80 | 99.84 | 0.24 | 146.5 | 0 | 48.3 | 0/0 | 0 | 3670 | 384 | 1602 |
|
Chip 9
|
A
|
1 | 0 | 99.84 | 99.47 | 0.19 | 149.9 | 1 | 49.6 | 0/0 | 0 | 3668 | 380 | 1505 |
|
Chip 10
|
A
|
2 | 0 | 99.83 | 99.64 | 0.31 | 176.5 | 0 | 57.5 | 0/0 | 0 | 3607 | 405 | 1866 |
|
Chip 11
|
A
|
0 | 0 | 99.79 | 99.67 | 0.18 | 125.3 | 0 | 41.7 | 0/0 | 0 | 3640 | 359 | 1154 |
|
Chip 12
|
A
|
0 | 0 | 99.80 | 99.54 | 0.16 | 158.8 | 0 | 52.9 | 0/0 | 0 | 3538 | 410 | 1961 |
|
Chip 13
|
A
|
0 | 0 | 99.79 | 99.51 | 0.33 | 233.7 | 0 | 76.9 | 0/0 | 0 | 3446 | 434 | 2285 |
|
Chip 14
|
A
|
0 | 0 | 99.81 | 99.53 | 0.32 | 254.0 | 0 | 81.2 | 0/0 | 0 | 3349 | 456 | 2486 |
|
Chip 15
|
A
|
0 | 0 | 99.77 | 99.48 | 0.42 | 277.4 | 0 | 89.4 | 0/0 | 0 | 3485 | 439 | 2279 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-04 | |
| TestTime | Test Time | 15:42 | |
| TestDuration | Duration | 0:37:26 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 13 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-18-g6921b8e on branch L1Xray
