Test Date: 2016-11-03 15:03
Analysis date: 2016-11-03 15:56
Analysis date: 2016-11-03 15:56
M1097 XRayHRQualification
Summary
| Module | Module | M1097 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 7/9/0 | |
| PixelDefects | Total Pixel Defects | 556 | |
| BumpBondingDefects | Bump Bonding Defects | 555 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.80/99.55 | % |
| Noise | Mean Noise | 386 | e- |

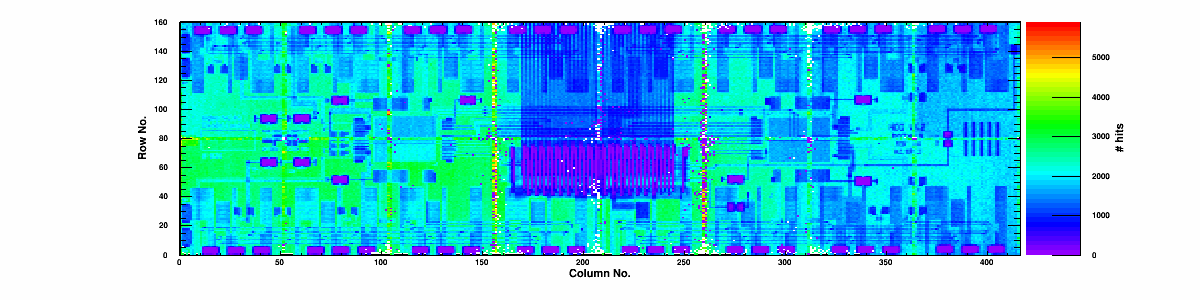

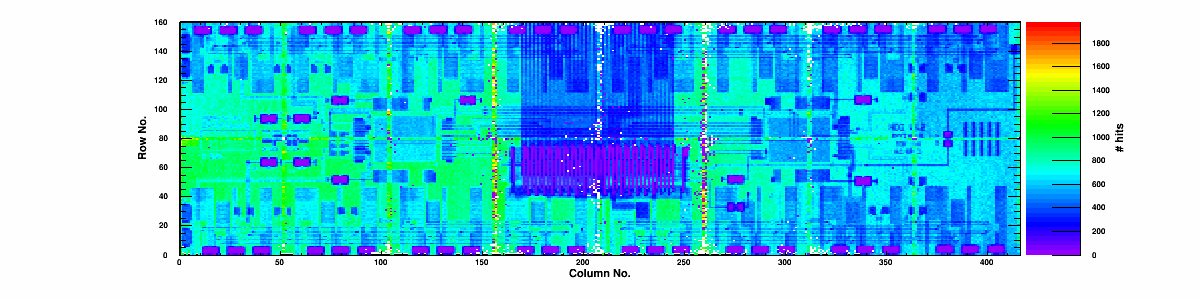

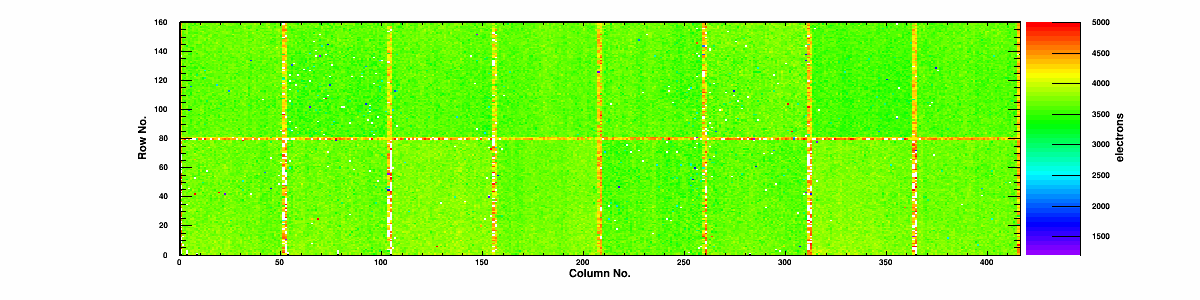

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
18 | 0 | 99.77 | 99.51 | 0.25 | 183.6 | 21 | 61.8 | 0/0 | 0 | 3637 | 385 | 1518 |
|
Chip 1
|
B
|
70 | 0 | 99.81 | 99.47 | 0.27 | 199.1 | 91 | 67.0 | 0/0 | 0 | 3570 | 391 | 1632 |
|
Chip 2
|
B
|
54 | 0 | 99.82 | 99.54 | 0.24 | 217.1 | 105 | 72.8 | 0/0 | 0 | 3664 | 411 | 1955 |
|
Chip 3
|
B
|
38 | 0 | 99.80 | 99.48 | 0.31 | 164.8 | 60 | 54.7 | 0/0 | 0 | 3629 | 400 | 1766 |
|
Chip 4
|
B
|
42 | 0 | 99.80 | 99.55 | 0.22 | 163.0 | 69 | 55.2 | 0/0 | 0 | 3651 | 371 | 1312 |
|
Chip 5
|
B
|
29 | 0 | 99.78 | 99.49 | 0.45 | 240.1 | 51 | 80.1 | 0/0 | 0 | 3626 | 388 | 1618 |
|
Chip 6
|
A
|
16 | 0 | 99.81 | 99.56 | 0.3 | 236.9 | 22 | 79.1 | 0/0 | 0 | 3551 | 421 | 2096 |
|
Chip 7
|
A
|
15 | 0 | 99.80 | 99.56 | 0.31 | 243.9 | 16 | 82.1 | 0/0 | 0 | 3661 | 379 | 1441 |
|
Chip 8
|
A
|
8 | 0 | 99.80 | 99.54 | 0.31 | 284.1 | 10 | 95.5 | 0/0 | 0 | 3639 | 390 | 1627 |
|
Chip 9
|
A
|
23 | 0 | 99.81 | 99.52 | 0.33 | 268.9 | 31 | 89.0 | 0/0 | 0 | 3644 | 388 | 1591 |
|
Chip 10
|
A
|
25 | 0 | 99.83 | 99.64 | 0.29 | 279.8 | 30 | 89.5 | 0/0 | 0 | 3687 | 374 | 1429 |
|
Chip 11
|
B
|
91 | 0 | 99.80 | 99.56 | 0.2 | 178.2 | 129 | 60.1 | 0/0 | 0 | 3709 | 346 | 926 |
|
Chip 12
|
B
|
44 | 0 | 99.82 | 99.59 | 0.28 | 182.1 | 57 | 60.0 | 0/0 | 0 | 3587 | 413 | 1958 |
|
Chip 13
|
B
|
48 | 0 | 99.82 | 99.54 | 0.28 | 230.4 | 61 | 76.0 | 0/0 | 0 | 3602 | 398 | 1731 |
|
Chip 14
|
B
|
35 | 0 | 99.78 | 99.60 | 0.3 | 208.7 | 44 | 68.6 | 0/0 | 0 | 3706 | 355 | 1107 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 99.63 | 0.27 | 213.1 | 0 | 70.0 | 0/0 | 0 | 3683 | 369 | 1309 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-03 | |
| TestTime | Test Time | 15:03 | |
| TestDuration | Duration | 0:37:48 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-18-g6921b8e on branch L1Xray
