Test Date: 2016-11-03 14:20
Analysis date: 2016-11-03 15:08
Analysis date: 2016-11-03 15:08
M1090 XRayHRQualification
Summary
| Module | Module | M1090 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 0 | |
| BumpBondingDefects | Bump Bonding Defects | 0 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.81/99.55 | % |

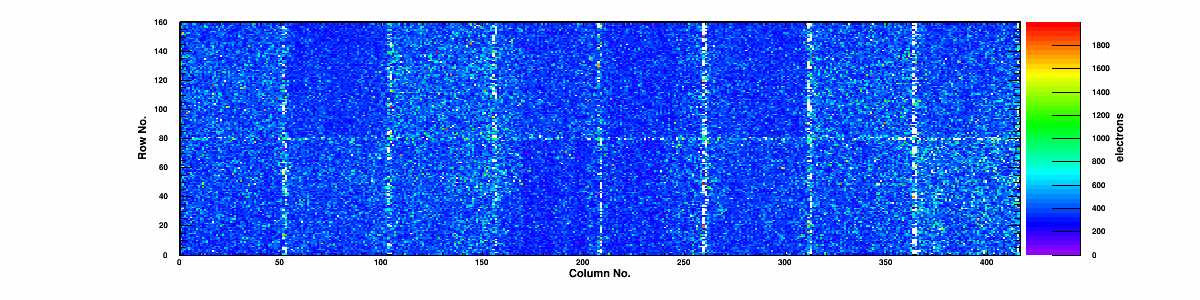

| Noise | Mean Noise | 388 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.82 | 99.53 | 0.35 | 245.0 | 0 | 79.3 | 0/0 | 0 | 3668 | 397 | 1753 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 99.59 | 0.33 | 250.3 | 0 | 79.0 | 0/0 | 0 | 3583 | 414 | 1977 |
|
Chip 2
|
A
|
0 | 0 | 99.79 | 99.49 | 0.39 | 229.9 | 0 | 75.1 | 0/0 | 0 | 3689 | 362 | 1168 |
|
Chip 3
|
A
|
0 | 0 | 99.82 | 99.56 | 0.26 | 148.6 | 0 | 49.0 | 0/0 | 0 | 3703 | 357 | 1140 |
|
Chip 4
|
A
|
0 | 0 | 99.80 | 99.62 | 0.19 | 137.6 | 0 | 45.4 | 0/0 | 0 | 3691 | 380 | 1474 |
|
Chip 5
|
A
|
0 | 0 | 99.81 | 99.59 | 0.24 | 190.8 | 0 | 61.7 | 0/0 | 0 | 3572 | 427 | 2165 |
|
Chip 6
|
A
|
0 | 0 | 99.81 | 99.55 | 0.35 | 151.6 | 0 | 49.9 | 0/0 | 0 | 3730 | 353 | 1054 |
|
Chip 7
|
A
|
0 | 0 | 99.82 | 99.48 | 0.3 | 164.2 | 0 | 53.7 | 0/0 | 0 | 3631 | 406 | 1871 |
|
Chip 8
|
A
|
0 | 0 | 99.82 | 99.57 | 0.2 | 146.7 | 0 | 47.6 | 0/0 | 0 | 3713 | 383 | 1553 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.39 | 0.32 | 149.2 | 0 | 49.1 | 0/0 | 0 | 3659 | 391 | 1667 |
|
Chip 10
|
A
|
0 | 0 | 99.83 | 99.59 | 0.26 | 161.2 | 0 | 52.9 | 0/0 | 0 | 3658 | 408 | 1911 |
|
Chip 11
|
A
|
0 | 0 | 99.81 | 99.62 | 0.2 | 131.0 | 0 | 43.3 | 0/0 | 0 | 3744 | 354 | 1144 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 99.56 | 0.23 | 162.4 | 0 | 53.5 | 0/0 | 0 | 3651 | 359 | 1227 |
|
Chip 13
|
A
|
0 | 0 | 99.80 | 99.55 | 0.34 | 224.4 | 0 | 74.0 | 0/0 | 0 | 3651 | 377 | 1433 |
|
Chip 14
|
A
|
0 | 0 | 99.81 | 99.57 | 0.35 | 233.4 | 0 | 76.1 | 0/0 | 0 | 3655 | 400 | 1826 |
|
Chip 15
|
A
|
0 | 0 | 99.81 | 99.53 | 0.44 | 276.5 | 0 | 88.5 | 0/0 | 0 | 3317 | 440 | 2283 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-03 | |
| TestTime | Test Time | 14:20 | |
| TestDuration | Duration | 0:36:53 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-18-g6921b8e on branch L1Xray
