Test Date: 2016-10-31 18:09
Analysis date: 2016-10-31 19:11
Analysis date: 2016-10-31 19:11
M1088 XRayHRQualification
Summary
| Module | Module | M1088 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 0 | |
| BumpBondingDefects | Bump Bonding Defects | 0 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.52 | % |
| Noise | Mean Noise | 302 | e- |

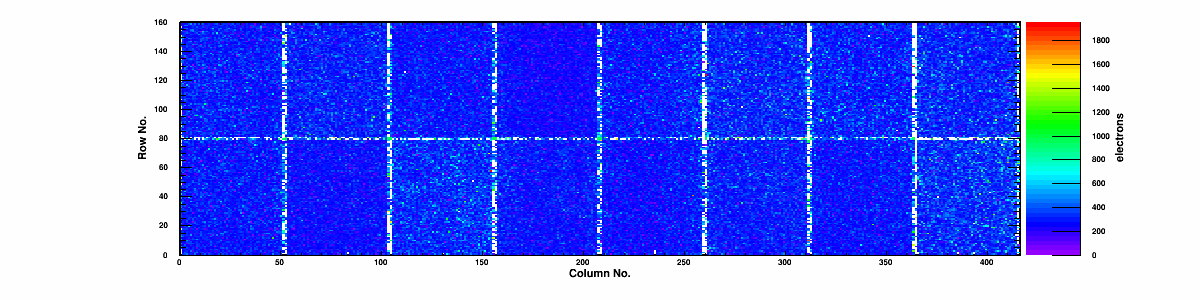

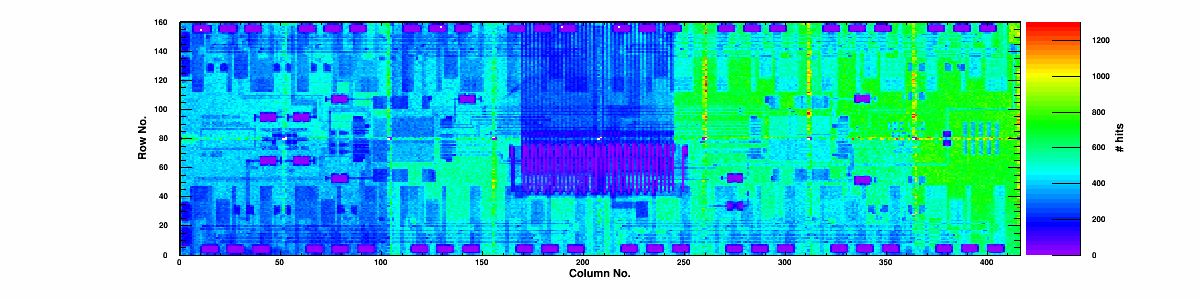

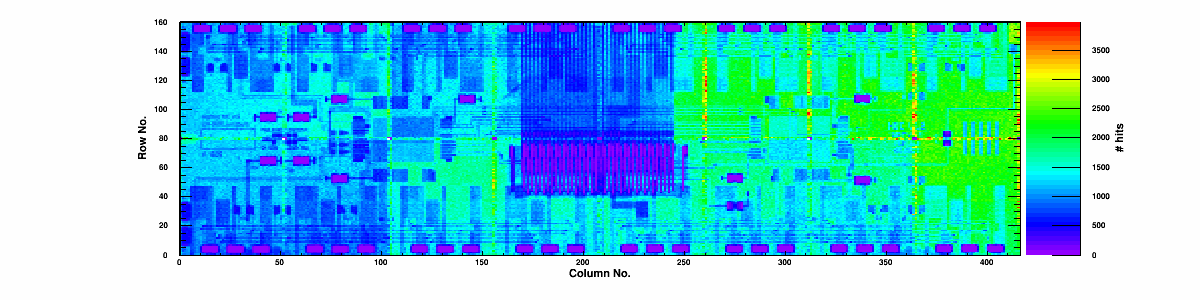

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.81 | 99.56 | 0.31 | 76.5 | 238.0 | 0 | 0/0 | 0 | 3979 | 324 | 761 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 99.57 | 0.49 | 70.5 | 221.4 | 0 | 0/0 | 0 | 3817 | 318 | 678 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.51 | 0.29 | 71.5 | 219.3 | 0 | 0/0 | 0 | 3806 | 325 | 768 |
|
Chip 3
|
A
|
0 | 0 | 99.80 | 99.55 | 0.27 | 45.0 | 137.4 | 0 | 0/0 | 0 | 3592 | 302 | 466 |
|
Chip 4
|
A
|
0 | 0 | 99.83 | 99.70 | 0.21 | 33.5 | 102.2 | 0 | 0/0 | 0 | 3902 | 258 | 134 |
|
Chip 5
|
A
|
0 | 0 | 99.80 | 99.52 | 0.27 | 44.0 | 133.8 | 0 | 0/0 | 0 | 3901 | 292 | 327 |
|
Chip 6
|
A
|
0 | 0 | 99.83 | 99.45 | 0.24 | 47.2 | 143.9 | 0 | 0/0 | 0 | 3812 | 314 | 616 |
|
Chip 7
|
A
|
0 | 0 | 99.83 | 99.49 | 0.19 | 43.7 | 133.3 | 0 | 0/0 | 0 | 3377 | 301 | 460 |
|
Chip 8
|
A
|
0 | 0 | 99.83 | 99.51 | 0.17 | 40.5 | 123.8 | 0 | 0/0 | 0 | 3899 | 294 | 369 |
|
Chip 9
|
A
|
0 | 0 | 99.83 | 98.99 | 0.13 | 37.2 | 113.7 | 0 | 0/0 | 0 | 3896 | 272 | 196 |
|
Chip 10
|
A
|
0 | 0 | 99.82 | 99.59 | 0.24 | 54.4 | 168.4 | 0 | 0/0 | 0 | 3794 | 334 | 873 |
|
Chip 11
|
A
|
0 | 0 | 99.80 | 99.69 | 0.19 | 37.3 | 113.0 | 0 | 0/0 | 0 | 3898 | 287 | 289 |
|
Chip 12
|
A
|
0 | 0 | 99.81 | 99.48 | 0.2 | 40.0 | 121.0 | 0 | 0/0 | 0 | 3853 | 278 | 235 |
|
Chip 13
|
A
|
0 | 0 | 99.80 | 99.57 | 0.28 | 55.5 | 169.8 | 0 | 0/0 | 0 | 3820 | 303 | 470 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.54 | 0.25 | 56.3 | 173.4 | 0 | 0/0 | 0 | 3877 | 288 | 300 |
|
Chip 15
|
A
|
0 | 0 | 99.81 | 99.53 | 0.33 | 76.7 | 239.6 | 0 | 0/0 | 0 | 3777 | 343 | 1027 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-31 | |
| TestTime | Test Time | 18:09 | |
| TestDuration | Duration | 0:56:55 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-18-g6921b8e on branch L1Xray
