Test Date: 2016-10-28 17:12
Analysis date: 2016-11-03 16:05
Analysis date: 2016-11-03 16:05
M1072 XRayHRQualification
| Comment | Comment | comment.txt: Address decoding problems on C0 |
Summary
| Module | Module | M1072 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | C | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 4 | |
| BumpBondingDefects | Bump Bonding Defects | 3 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.56 | % |
| Noise | Mean Noise | 333 | e- |

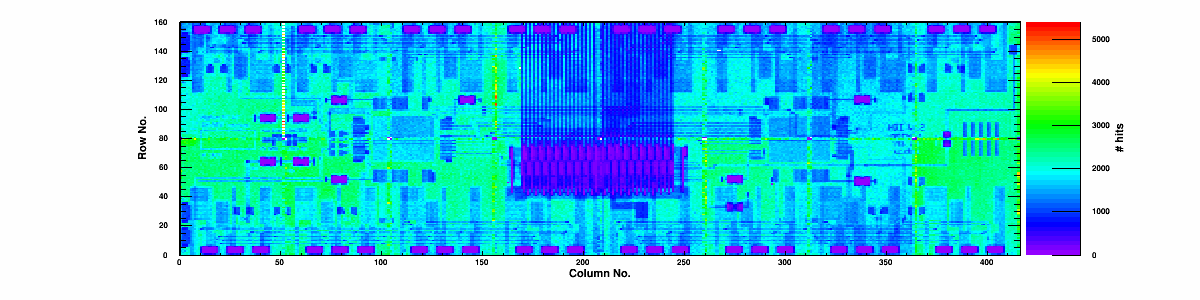

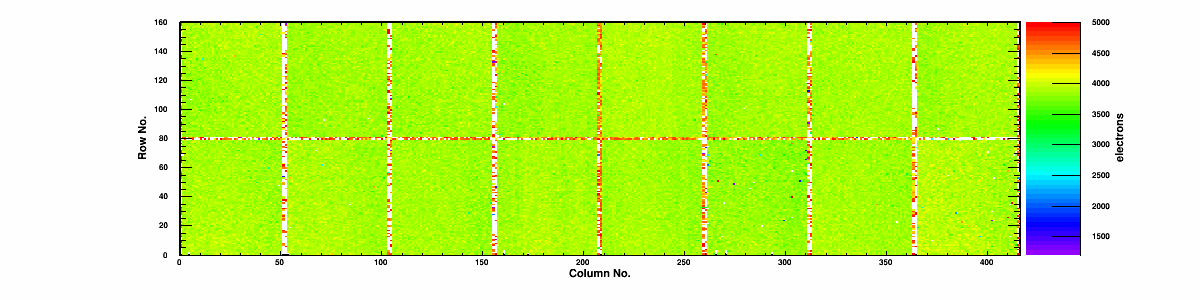

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.83 | 99.57 | 0.16 | 73.4 | 225.0 | 0 | 0/0 | 0 | 3754 | 331 | 825 |
|
Chip 1
|
A
|
0 | 0 | 99.84 | 99.50 | 0.24 | 58.7 | 178.0 | 0 | 0/0 | 0 | 3778 | 311 | 525 |
|
Chip 2
|
A
|
2 | 0 | 99.81 | 99.60 | 0.16 | 64.4 | 195.6 | 2 | 0/0 | 0 | 3809 | 330 | 848 |
|
Chip 3
|
A
|
0 | 0 | 99.84 | 99.44 | 0.17 | 46.5 | 141.3 | 0 | 0/0 | 0 | 3884 | 298 | 398 |
|
Chip 4
|
A
|
1 | 0 | 99.80 | 99.56 | 0.28 | 57.1 | 173.0 | 1 | 0/0 | 0 | 3814 | 342 | 938 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.60 | 0.3 | 68.4 | 207.8 | 0 | 0/0 | 0 | 3766 | 341 | 910 |
|
Chip 6
|
A
|
0 | 0 | 99.82 | 99.60 | 0.24 | 66.7 | 204.7 | 0 | 0/0 | 0 | 3771 | 346 | 1007 |
|
Chip 7
|
A
|
0 | 0 | 99.82 | 99.58 | 0.22 | 70.3 | 216.7 | 0 | 0/0 | 0 | 2499 | 337 | 908 |
|
Chip 8
|
A
|
0 | 0 | 99.82 | 99.51 | 0.42 | 79.7 | 243.7 | 0 | 0/0 | 0 | 3729 | 342 | 996 |
|
Chip 9
|
A
|
0 | 0 | 99.80 | 99.60 | 0.29 | 79.6 | 242.2 | 0 | 0/0 | 0 | 3745 | 334 | 907 |
|
Chip 10
|
A
|
0 | 0 | 99.81 | 99.56 | 0.38 | 76.3 | 233.9 | 0 | 0/0 | 0 | 3767 | 328 | 775 |
|
Chip 11
|
A
|
1 | 0 | 99.83 | 99.59 | 0.29 | 49.5 | 151.8 | 0 | 0/0 | 0 | 3765 | 326 | 757 |
|
Chip 12
|
A
|
0 | 0 | 99.81 | 99.56 | 0.17 | 48.8 | 147.8 | 0 | 0/0 | 0 | 3832 | 314 | 592 |
|
Chip 13
|
A
|
0 | 0 | 99.81 | 99.58 | 0.27 | 73.8 | 227.4 | 0 | 0/0 | 0 | 3283 | 368 | 1343 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.48 | 0.23 | 64.3 | 197.9 | 0 | 0/0 | 0 | 3677 | 322 | 722 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 99.61 | 0.28 | 85.5 | 266.8 | 0 | 0/0 | 0 | 3565 | 351 | 1199 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-28 | |
| TestTime | Test Time | 17:12 | |
| TestDuration | Duration | 0:50:56 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 91 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-18-g6921b8e on branch L1Xray
