Test Date: 2016-10-28 10:37
Analysis date: 2016-10-28 11:45
Analysis date: 2016-10-28 11:45
M1067 XRayHRQualification
Summary
| Module | Module | M1067 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 164 | |
| BumpBondingDefects | Bump Bonding Defects | 162 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 1 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |
| Efficiency | Efficiency 150/300 | 99.81/99.56 | % |
| Noise | Mean Noise | 343 | e- |

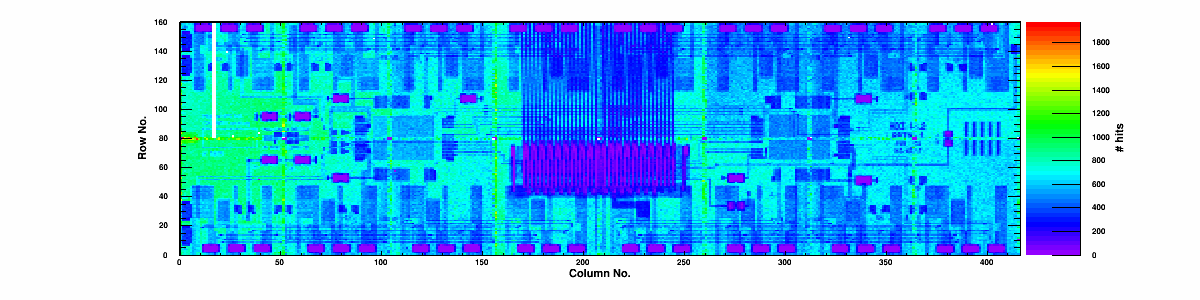

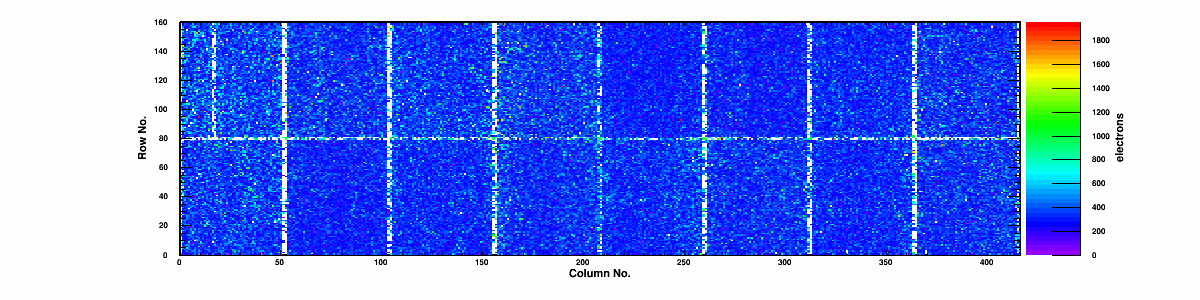

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.83 | 99.60 | 0.29 | 69.4 | 208.6 | 1 | 0/0 | 0 | 3720 | 346 | 1031 |
|
Chip 1
|
A
|
1 | 0 | 99.81 | 99.63 | 0.26 | 61.3 | 184.3 | 1 | 0/0 | 0 | 3773 | 334 | 851 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 99.55 | 0.24 | 60.6 | 180.9 | 0 | 0/0 | 0 | 3790 | 313 | 609 |
|
Chip 3
|
A
|
0 | 0 | 99.83 | 99.52 | 0.3 | 51.6 | 154.7 | 0 | 0/0 | 0 | 3832 | 313 | 545 |
|
Chip 4
|
A
|
0 | 0 | 99.81 | 99.54 | 0.24 | 58.1 | 176.7 | 0 | 0/0 | 0 | 3765 | 364 | 1303 |
|
Chip 5
|
A
|
0 | 0 | 99.83 | 99.55 | 0.27 | 70.3 | 217.7 | 0 | 0/0 | 0 | 3728 | 357 | 1191 |
|
Chip 6
|
A
|
0 | 0 | 99.82 | 99.56 | 0.84 | 74.2 | 229.4 | 0 | 0/0 | 0 | 3738 | 353 | 1126 |
|
Chip 7
|
C
|
161 | 0 | 99.61 | 99.41 | 216.95 | 82.8 | 244.8 | 162 | 0/0 | 2 | 3610 | 387 | 1565 |
|
Chip 8
|
A
|
0 | 0 | 99.81 | 99.53 | 0.28 | 88.4 | 268.1 | 0 | 0/0 | 0 | 3651 | 359 | 1313 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.60 | 0.33 | 69.9 | 215.0 | 0 | 0/0 | 0 | 3771 | 318 | 634 |
|
Chip 10
|
A
|
1 | 0 | 99.84 | 99.60 | 0.34 | 72.4 | 220.4 | 0 | 0/0 | 0 | 3805 | 335 | 888 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.63 | 0.21 | 53.3 | 160.1 | 0 | 0/0 | 0 | 3574 | 346 | 1052 |
|
Chip 12
|
A
|
0 | 0 | 99.82 | 99.53 | 0.21 | 50.9 | 154.3 | 0 | 0/0 | 0 | 3774 | 345 | 1018 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.58 | 0.31 | 68.5 | 208.4 | 0 | 0/0 | 0 | 3762 | 345 | 1011 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.58 | 0.27 | 66.1 | 203.0 | 0 | 0/0 | 0 | 3533 | 330 | 826 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 99.56 | 0.33 | 69.6 | 211.9 | 0 | 0/0 | 0 | 3757 | 348 | 1048 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-28 | |
| TestTime | Test Time | 10:37 | |
| TestDuration | Duration | 0:57:53 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
