Test Date: 2016-10-27 12:31
Analysis date: 2016-10-27 14:02
Analysis date: 2016-10-27 14:02
M1063 XRayHRQualification
Summary
| Module | Module | M1063 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 3 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.57 | % |

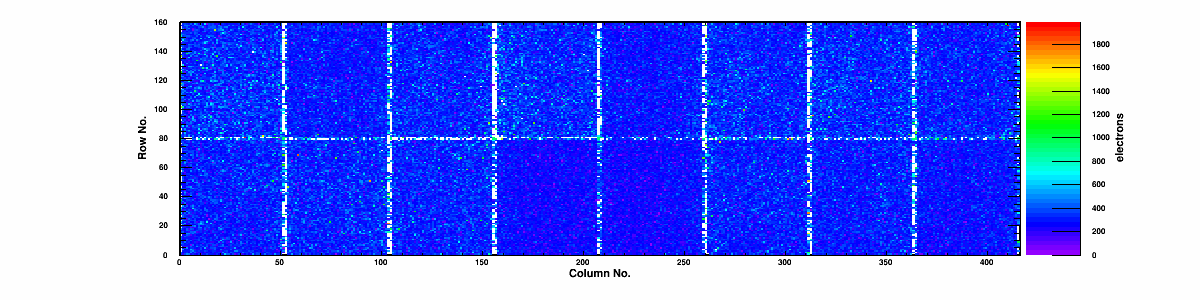

| Noise | Mean Noise | 310 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.83 | 99.67 | 0.16 | 60.1 | 184.8 | 1 | 0/0 | 0 | 3855 | 316 | 612 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 99.45 | 0.28 | 63.9 | 196.6 | 0 | 0/0 | 0 | 3562 | 337 | 889 |
|
Chip 2
|
A
|
0 | 0 | 99.81 | 99.56 | 0.34 | 72.7 | 221.8 | 0 | 0/0 | 0 | 3783 | 327 | 757 |
|
Chip 3
|
A
|
0 | 0 | 99.84 | 99.63 | 0.22 | 47.6 | 145.7 | 0 | 0/0 | 0 | 3859 | 292 | 357 |
|
Chip 4
|
A
|
0 | 0 | 99.82 | 99.60 | 0.17 | 58.0 | 176.1 | 0 | 0/0 | 0 | 3618 | 339 | 944 |
|
Chip 5
|
A
|
0 | 0 | 99.83 | 99.61 | 0.26 | 72.7 | 226.8 | 0 | 0/0 | 0 | 3793 | 321 | 718 |
|
Chip 6
|
A
|
0 | 0 | 99.81 | 99.78 | 0.27 | 61.8 | 190.3 | 0 | 0/0 | 0 | 3849 | 301 | 402 |
|
Chip 7
|
A
|
0 | 0 | 99.82 | 99.49 | 0.37 | 85.4 | 261.4 | 0 | 0/0 | 0 | 3798 | 341 | 993 |
|
Chip 8
|
A
|
0 | 0 | 99.82 | 99.45 | 0.29 | 71.3 | 220.4 | 0 | 0/0 | 0 | 3840 | 314 | 618 |
|
Chip 9
|
A
|
1 | 0 | 99.82 | 99.59 | 0.29 | 73.1 | 226.2 | 1 | 0/0 | 0 | 3562 | 322 | 696 |
|
Chip 10
|
A
|
1 | 0 | 99.82 | 99.49 | 0.34 | 63.4 | 198.1 | 0 | 0/0 | 0 | 3802 | 317 | 638 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.89 | 0.13 | 37.6 | 115.0 | 0 | 0/0 | 0 | 3911 | 261 | 134 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 99.35 | 0.14 | 36.4 | 111.2 | 0 | 0/0 | 0 | 3694 | 260 | 122 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.45 | 0.24 | 65.4 | 202.4 | 0 | 0/0 | 0 | 3800 | 312 | 570 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.50 | 0.15 | 51.9 | 160.4 | 0 | 0/0 | 0 | 3799 | 304 | 465 |
|
Chip 15
|
A
|
0 | 0 | 99.84 | 99.53 | 0.17 | 51.5 | 158.6 | 0 | 0/0 | 0 | 3887 | 286 | 286 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-27 | |
| TestTime | Test Time | 12:31 | |
| TestDuration | Duration | 0:56:10 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 13 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-11-g3f3decf on branch master
