Test Date: 2016-11-14 17:33
Analysis date: 2016-11-14 18:17
Analysis date: 2016-11-14 18:17
M1059 XRayHRQualification
Summary
| Module | Module | M1059 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 2 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.55 | % |

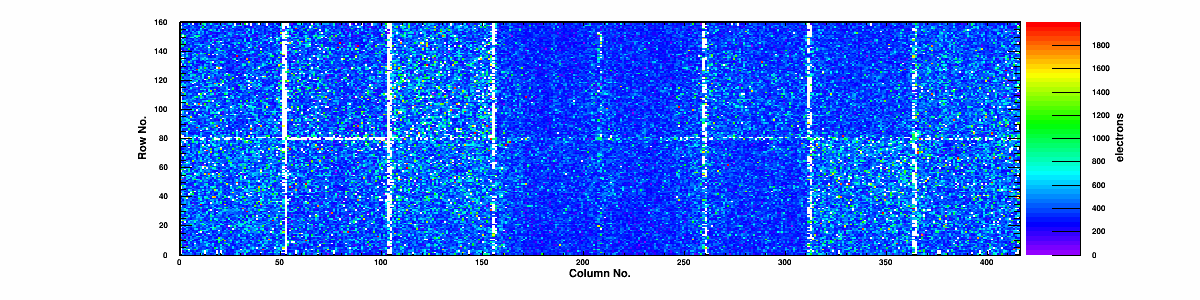

| Noise | Mean Noise | 400 | e- |
Summary ROCs

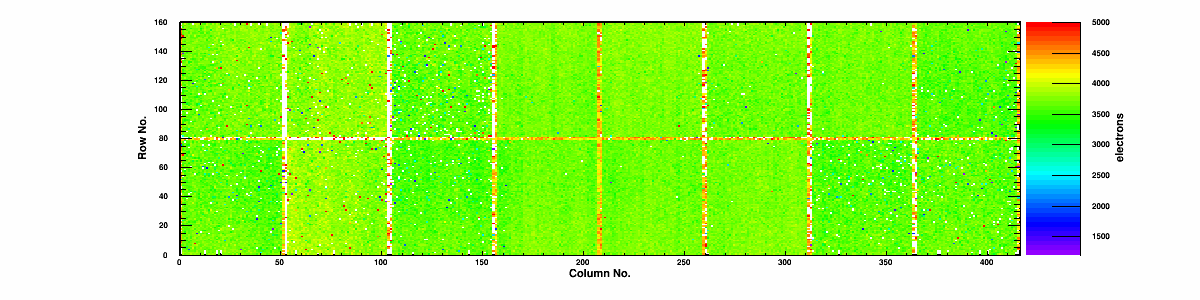

| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.83 | 99.56 | 0.21 | 224.7 | 0 | 74.0 | 0/0 | 0 | 3554 | 426 | 2119 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 99.54 | 0.32 | 204.9 | 0 | 70.4 | 0/0 | 0 | 3658 | 374 | 1393 |
|
Chip 2
|
A
|
0 | 0 | 99.81 | 99.55 | 0.35 | 242.1 | 0 | 79.3 | 0/0 | 0 | 3602 | 385 | 1509 |
|
Chip 3
|
A
|
0 | 0 | 99.84 | 99.62 | 0.25 | 169.9 | 0 | 56.8 | 0/0 | 0 | 3705 | 352 | 1105 |
|
Chip 4
|
A
|
0 | 0 | 99.84 | 99.51 | 0.21 | 156.3 | 0 | 52.2 | 0/0 | 0 | 3725 | 349 | 1062 |
|
Chip 5
|
A
|
0 | 0 | 99.81 | 99.56 | 0.32 | 298.4 | 0 | 97.4 | 0/0 | 0 | 3266 | 450 | 2375 |
|
Chip 6
|
A
|
0 | 0 | 99.83 | 99.60 | 0.39 | 320.7 | 0 | 105.3 | 0/0 | 0 | 3583 | 404 | 1828 |
|
Chip 7
|
A
|
1 | 0 | 99.82 | 99.51 | 0.36 | 274.3 | 1 | 92.2 | 0/0 | 0 | 3348 | 415 | 1927 |
|
Chip 8
|
A
|
1 | 0 | 99.80 | 99.53 | 0.34 | 295.6 | 1 | 101.3 | 0/0 | 0 | 3588 | 442 | 2322 |
|
Chip 9
|
A
|
0 | 0 | 99.83 | 99.57 | 0.35 | 302.4 | 0 | 101.7 | 0/0 | 0 | 3609 | 402 | 1779 |
|
Chip 10
|
A
|
0 | 0 | 99.79 | 99.52 | 0.42 | 278.1 | 0 | 93.6 | 0/0 | 0 | 3441 | 440 | 2266 |
|
Chip 11
|
A
|
0 | 0 | 99.80 | 99.54 | 0.15 | 142.5 | 0 | 47.6 | 0/0 | 0 | 3681 | 362 | 1272 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 99.59 | 0.23 | 146.8 | 0 | 49.0 | 0/0 | 0 | 3690 | 359 | 1211 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.44 | 0.21 | 192.0 | 0 | 64.5 | 0/0 | 0 | 3695 | 360 | 1232 |
|
Chip 14
|
A
|
0 | 0 | 99.81 | 99.55 | 0.27 | 240.3 | 0 | 80.4 | 0/0 | 0 | 3440 | 451 | 2392 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 99.58 | 0.31 | 234.0 | 0 | 78.5 | 0/0 | 0 | 3496 | 427 | 2142 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-14 | |
| TestTime | Test Time | 17:33 | |
| TestDuration | Duration | 0:37:44 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 13 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
v1.1.1-1-g54fa876 on branch master
