Test Date: 2016-10-27 14:55
Analysis date: 2016-10-27 16:09
Analysis date: 2016-10-27 16:09
M1052 XRayHRQualification
Summary
| Module | Module | M1052 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 5 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.58 | % |
| Noise | Mean Noise | 329 | e- |

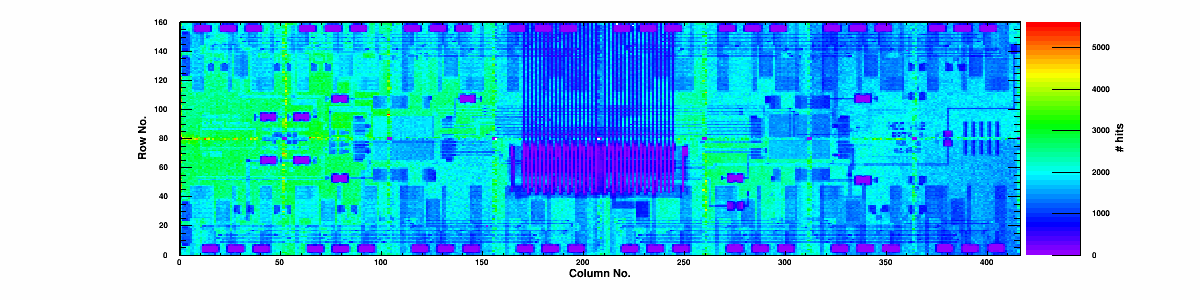

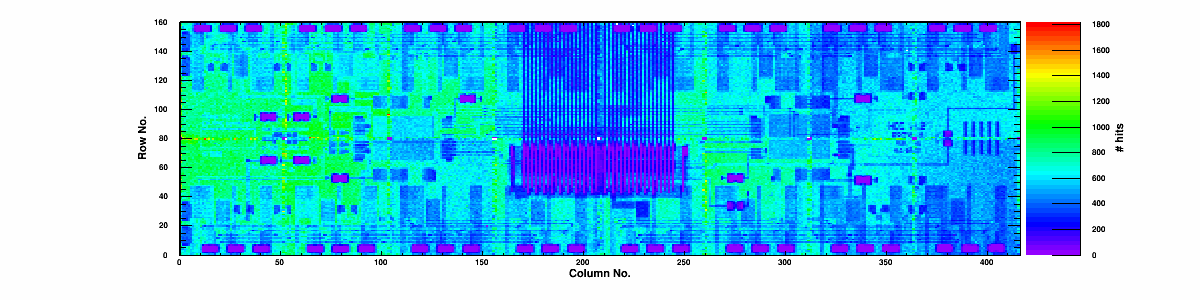

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.79 | 99.65 | 0.41 | 62.1 | 190.6 | 0 | 0/0 | 0 | 3817 | 332 | 819 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 99.51 | 0.21 | 58.5 | 179.0 | 0 | 0/0 | 0 | 3810 | 329 | 813 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.63 | 0.22 | 65.7 | 199.9 | 0 | 0/0 | 0 | 3809 | 307 | 541 |
|
Chip 3
|
A
|
4 | 0 | 99.83 | 99.59 | 0.26 | 54.8 | 167.9 | 4 | 0/0 | 0 | 3555 | 307 | 547 |
|
Chip 4
|
A
|
0 | 0 | 99.83 | 99.51 | 0.17 | 49.9 | 149.2 | 0 | 0/0 | 0 | 3552 | 308 | 486 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.59 | 0.2 | 77.2 | 238.7 | 0 | 0/0 | 0 | 2787 | 339 | 899 |
|
Chip 6
|
A
|
0 | 0 | 99.82 | 99.57 | 0.4 | 85.5 | 263.4 | 0 | 0/0 | 0 | 3661 | 354 | 1182 |
|
Chip 7
|
A
|
0 | 0 | 99.84 | 99.61 | 0.4 | 83.4 | 259.3 | 0 | 0/0 | 0 | 3623 | 326 | 822 |
|
Chip 8
|
A
|
0 | 0 | 99.81 | 99.55 | 0.39 | 84.3 | 263.1 | 0 | 0/0 | 0 | 3578 | 348 | 1096 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.58 | 0.26 | 82.2 | 249.5 | 0 | 0/0 | 0 | 3403 | 356 | 1202 |
|
Chip 10
|
A
|
1 | 0 | 99.83 | 99.58 | 0.2 | 66.5 | 203.6 | 0 | 0/0 | 0 | 3791 | 321 | 703 |
|
Chip 11
|
A
|
0 | 0 | 99.81 | 99.59 | 0.29 | 50.0 | 151.2 | 0 | 0/0 | 0 | 3796 | 308 | 539 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 99.71 | 0.18 | 51.0 | 156.5 | 0 | 0/0 | 0 | 3790 | 329 | 795 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.54 | 0.23 | 74.3 | 228.5 | 0 | 0/0 | 0 | 3530 | 344 | 1062 |
|
Chip 14
|
A
|
0 | 0 | 99.82 | 99.48 | 0.25 | 64.5 | 196.7 | 0 | 0/0 | 0 | 3792 | 335 | 857 |
|
Chip 15
|
A
|
0 | 0 | 99.78 | 99.67 | 0.22 | 55.9 | 173.1 | 0 | 0/0 | 0 | 3851 | 320 | 646 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-27 | |
| TestTime | Test Time | 14:55 | |
| TestDuration | Duration | 0:56:50 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 13 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-11-g3f3decf on branch master
