Test Date: 2016-11-17 10:22
Analysis date: 2016-11-17 11:38
Analysis date: 2016-11-17 11:38
M1051 XRayHRQualification
Summary
| Module | Module | M1051 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 6 | |
| BumpBondingDefects | Bump Bonding Defects | 6 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.81/99.54 | % |
| Noise | Mean Noise | 341 | e- |

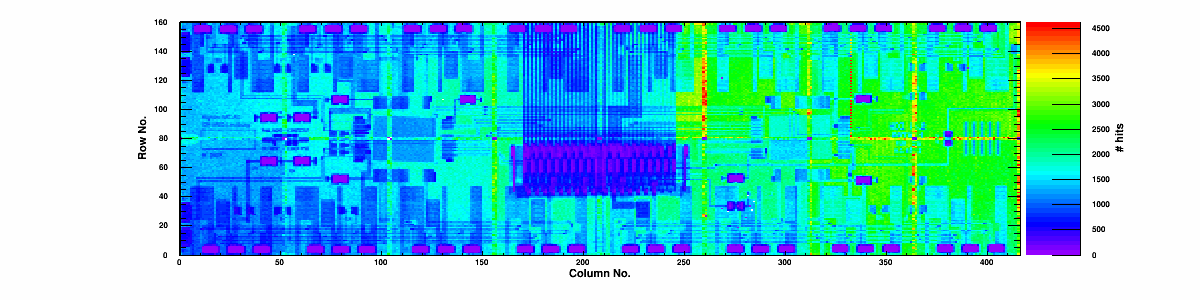

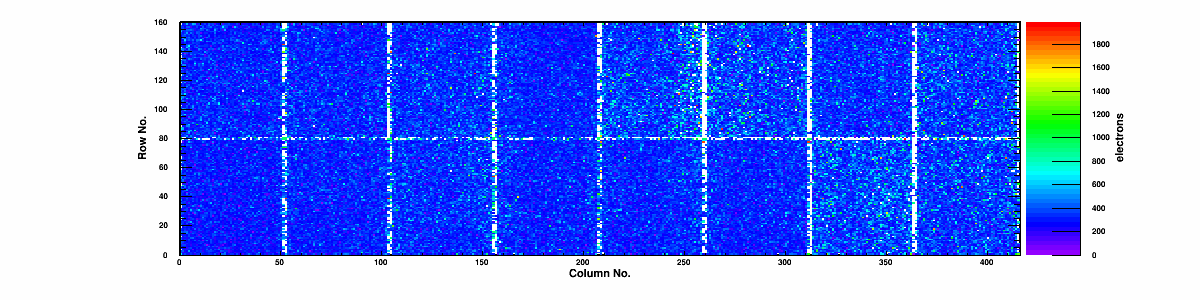

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.82 | 99.59 | 0.37 | 90.9 | 281.6 | 0 | 0/0 | 0 | 3770 | 364 | 1334 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 99.58 | 0.28 | 81.6 | 255.1 | 0 | 0/0 | 0 | 3735 | 339 | 955 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.58 | 0.36 | 86.4 | 265.2 | 0 | 0/0 | 0 | 3758 | 376 | 1480 |
|
Chip 3
|
A
|
0 | 0 | 99.76 | 99.50 | 0.26 | 66.0 | 201.3 | 0 | 0/0 | 0 | 3461 | 378 | 1480 |
|
Chip 4
|
A
|
0 | 0 | 99.81 | 99.55 | 0.2 | 47.1 | 141.5 | 0 | 0/0 | 0 | 3798 | 320 | 621 |
|
Chip 5
|
A
|
1 | 0 | 99.82 | 99.57 | 0.19 | 58.7 | 177.3 | 1 | 0/0 | 0 | 3754 | 343 | 1009 |
|
Chip 6
|
A
|
1 | 0 | 99.84 | 99.48 | 0.24 | 52.3 | 157.5 | 1 | 0/0 | 0 | 3794 | 326 | 746 |
|
Chip 7
|
A
|
0 | 0 | 99.82 | 99.51 | 0.24 | 50.0 | 151.6 | 1 | 0/0 | 0 | 3832 | 326 | 711 |
|
Chip 8
|
A
|
0 | 0 | 99.83 | 99.24 | 0.18 | 41.9 | 127.7 | 0 | 0/0 | 0 | 3882 | 299 | 438 |
|
Chip 9
|
A
|
0 | 0 | 99.79 | 99.73 | 0.23 | 48.2 | 145.0 | 0 | 0/0 | 0 | 3845 | 317 | 620 |
|
Chip 10
|
A
|
0 | 0 | 99.83 | 99.61 | 0.27 | 55.9 | 171.3 | 0 | 0/0 | 0 | 3786 | 344 | 969 |
|
Chip 11
|
A
|
0 | 0 | 99.80 | 99.48 | 0.32 | 45.2 | 137.1 | 0 | 0/0 | 0 | 3834 | 321 | 685 |
|
Chip 12
|
A
|
0 | 0 | 99.80 | 99.58 | 0.24 | 48.0 | 144.0 | 0 | 0/0 | 0 | 3813 | 325 | 732 |
|
Chip 13
|
A
|
4 | 0 | 99.83 | 99.56 | 0.21 | 67.2 | 201.7 | 4 | 0/0 | 0 | 3786 | 320 | 665 |
|
Chip 14
|
A
|
0 | 0 | 99.81 | 99.52 | 0.36 | 86.9 | 268.1 | 0 | 0/0 | 0 | 3699 | 388 | 1583 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 99.60 | 0.49 | 85.6 | 268.7 | 0 | 0/0 | 0 | 3775 | 366 | 1313 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-17 | |
| TestTime | Test Time | 10:22 | |
| TestDuration | Duration | 0:58:32 | |
| pXar | pXar version | v2.7.6+72~gcee0f0f | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 14 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
v1.1.1-1-g54fa876 on branch master
