Test Date: 2016-10-27 10:25
Analysis date: 2016-10-27 11:34
Analysis date: 2016-10-27 11:34
M1046 XRayHRQualification
Summary
| Module | Module | M1046 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 1 | |
| BumpBondingDefects | Bump Bonding Defects | 1 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.59 | % |

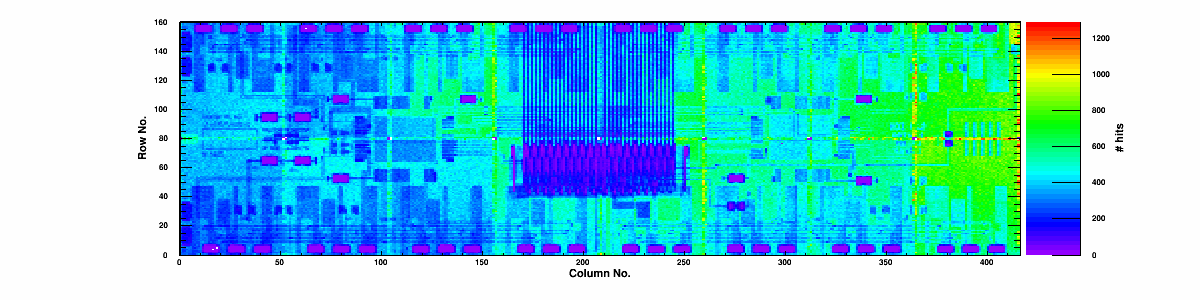

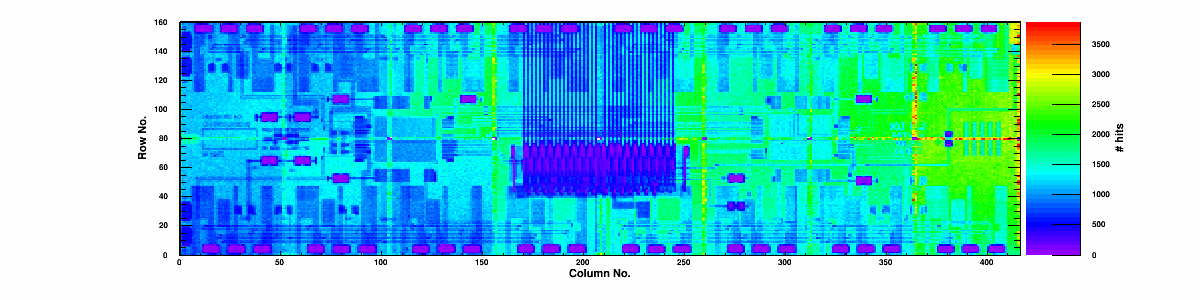

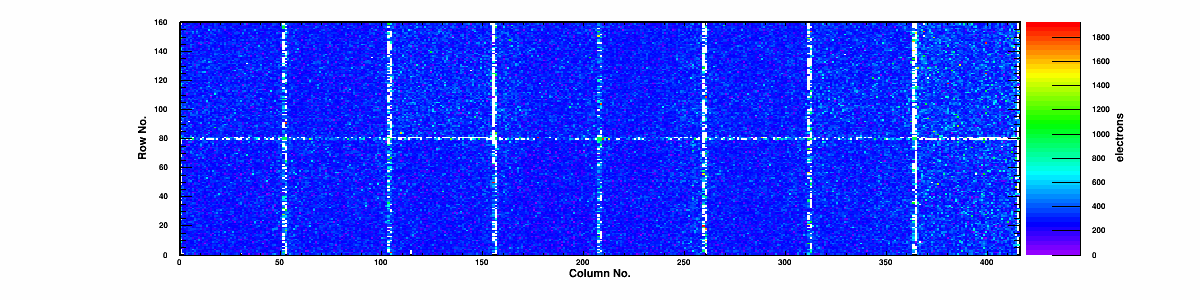

| Noise | Mean Noise | 299 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.82 | 99.56 | 0.39 | 81.2 | 256.0 | 0 | 0/0 | 0 | 3776 | 350 | 1077 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 99.59 | 0.32 | 65.0 | 202.3 | 0 | 0/0 | 0 | 3822 | 316 | 585 |
|
Chip 2
|
A
|
0 | 0 | 99.80 | 99.66 | 0.36 | 55.9 | 171.5 | 0 | 0/0 | 0 | 3889 | 293 | 301 |
|
Chip 3
|
A
|
0 | 0 | 99.82 | 99.57 | 0.23 | 45.4 | 137.3 | 0 | 0/0 | 0 | 3636 | 292 | 302 |
|
Chip 4
|
A
|
1 | 0 | 99.81 | 99.59 | 0.36 | 40.4 | 122.2 | 1 | 0/0 | 0 | 3918 | 300 | 428 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.53 | 0.23 | 56.3 | 171.1 | 0 | 0/0 | 0 | 3762 | 312 | 600 |
|
Chip 6
|
A
|
0 | 0 | 99.84 | 99.55 | 0.16 | 38.3 | 118.5 | 0 | 0/0 | 0 | 3891 | 285 | 263 |
|
Chip 7
|
A
|
0 | 0 | 99.79 | 99.73 | 0.21 | 41.7 | 127.7 | 0 | 0/0 | 0 | 3900 | 299 | 362 |
|
Chip 8
|
A
|
0 | 0 | 99.82 | 99.46 | 0.21 | 37.6 | 115.8 | 0 | 0/0 | 0 | 3900 | 281 | 244 |
|
Chip 9
|
A
|
0 | 0 | 99.83 | 99.59 | 0.14 | 42.0 | 128.4 | 0 | 0/0 | 0 | 3896 | 292 | 322 |
|
Chip 10
|
A
|
0 | 0 | 99.80 | 99.90 | 0.26 | 43.3 | 131.3 | 0 | 0/0 | 0 | 3682 | 285 | 284 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.39 | 0.2 | 37.5 | 113.7 | 0 | 0/0 | 0 | 3892 | 273 | 225 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 99.62 | 0.21 | 43.1 | 130.6 | 0 | 0/0 | 0 | 3883 | 287 | 303 |
|
Chip 13
|
A
|
0 | 0 | 99.82 | 99.57 | 0.28 | 54.4 | 167.9 | 0 | 0/0 | 0 | 3857 | 288 | 267 |
|
Chip 14
|
A
|
0 | 0 | 99.82 | 99.53 | 0.18 | 56.9 | 175.5 | 0 | 0/0 | 0 | 3848 | 304 | 408 |
|
Chip 15
|
A
|
0 | 0 | 99.84 | 99.59 | 0.34 | 80.9 | 250.1 | 0 | 0/0 | 0 | 3796 | 330 | 893 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-27 | |
| TestTime | Test Time | 10:25 | |
| TestDuration | Duration | 0:57:24 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-11-g3f3decf on branch master
