Test Date: 2016-10-31 09:16
Analysis date: 2016-10-31 10:25
Analysis date: 2016-10-31 10:25
M1037 XRayHRQualification
Summary
| Module | Module | M1037 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 142 | |

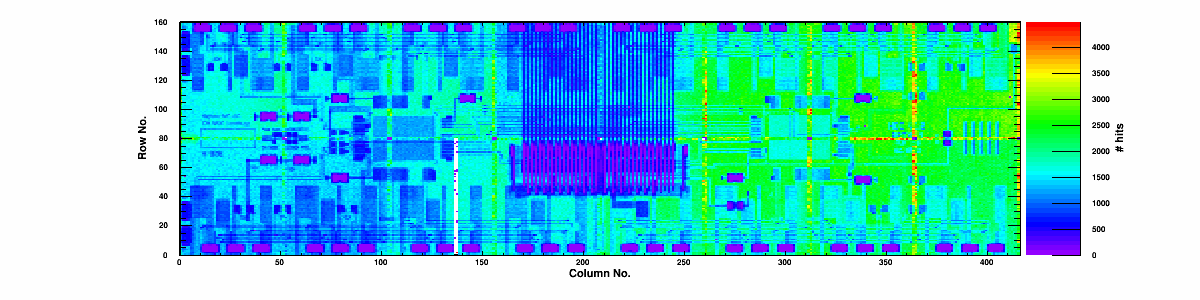

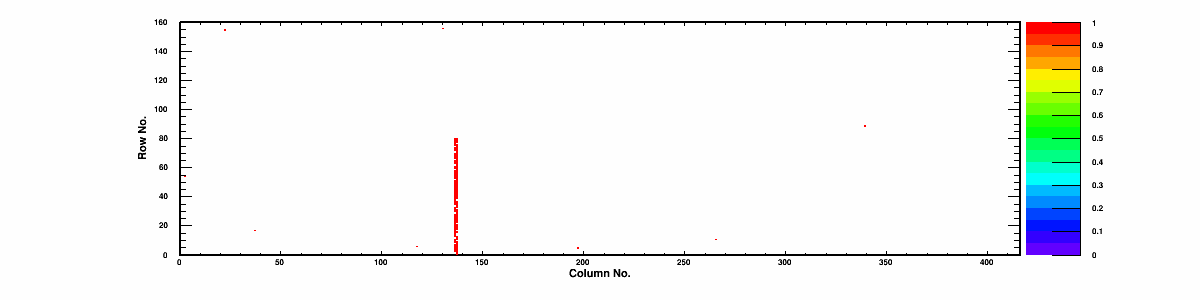

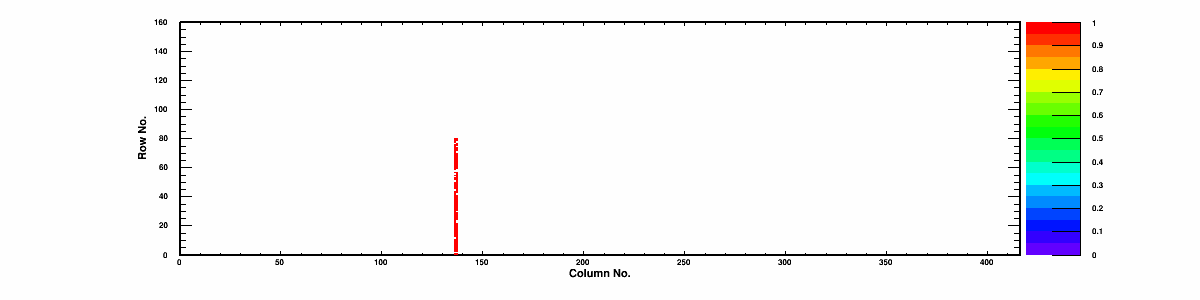

| BumpBondingDefects | Bump Bonding Defects | 140 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 1 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |
| Efficiency | Efficiency 150/300 | 99.83/99.62 | % |
| Noise | Mean Noise | 339 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.84 | 99.58 | 0.3 | 87.9 | 277.9 | 0 | 0/0 | 0 | 3724 | 385 | 1592 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 99.59 | 0.32 | 85.0 | 260.5 | 0 | 0/0 | 0 | 3756 | 357 | 1271 |
|
Chip 2
|
A
|
0 | 0 | 99.83 | 99.59 | 0.29 | 79.0 | 242.9 | 0 | 0/0 | 0 | 3686 | 366 | 1357 |
|
Chip 3
|
A
|
0 | 0 | 99.84 | 99.46 | 0.17 | 49.4 | 151.6 | 0 | 0/0 | 0 | 3813 | 330 | 756 |
|
Chip 4
|
A
|
0 | 0 | 99.85 | 99.49 | 0.17 | 39.5 | 119.5 | 0 | 0/0 | 0 | 3904 | 307 | 548 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.58 | 0.2 | 58.9 | 178.8 | 0 | 0/0 | 0 | 3802 | 334 | 861 |
|
Chip 6
|
A
|
0 | 0 | 99.82 | 99.67 | 0.26 | 52.0 | 157.7 | 0 | 0/0 | 0 | 3801 | 333 | 818 |
|
Chip 7
|
A
|
0 | 0 | 99.80 | 99.57 | 0.24 | 56.4 | 172.1 | 0 | 0/0 | 0 | 3787 | 323 | 696 |
|
Chip 8
|
A
|
0 | 0 | 99.80 | 99.68 | 0.19 | 48.8 | 149.3 | 0 | 0/0 | 0 | 3855 | 317 | 627 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 100.42 | 0.14 | 44.8 | 136.4 | 0 | 0/0 | 0 | 3884 | 289 | 334 |
|
Chip 10
|
C
|
142 | 0 | 99.83 | 99.52 | 0.17 | 53.5 | 160.9 | 142 | 0/0 | 2 | 3831 | 328 | 741 |
|
Chip 11
|
A
|
0 | 0 | 99.83 | 99.42 | 0.22 | 42.1 | 127.0 | 0 | 0/0 | 0 | 3877 | 324 | 701 |
|
Chip 12
|
A
|
0 | 0 | 99.84 | 99.67 | 0.2 | 49.7 | 150.0 | 0 | 0/0 | 0 | 3768 | 352 | 1109 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.57 | 0.34 | 75.3 | 229.3 | 0 | 0/0 | 0 | 3758 | 356 | 1219 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.50 | 0.37 | 78.1 | 241.6 | 0 | 0/0 | 0 | 3738 | 364 | 1308 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 99.57 | 0.29 | 79.3 | 245.4 | 0 | 0/0 | 0 | 3786 | 357 | 1206 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-31 | |
| TestTime | Test Time | 09:16 | |
| TestDuration | Duration | 0:59:35 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 13 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-11-g3f3decf on branch master
