Test Date: 2016-11-14 15:30
Analysis date: 2016-11-14 16:18
Analysis date: 2016-11-14 16:18

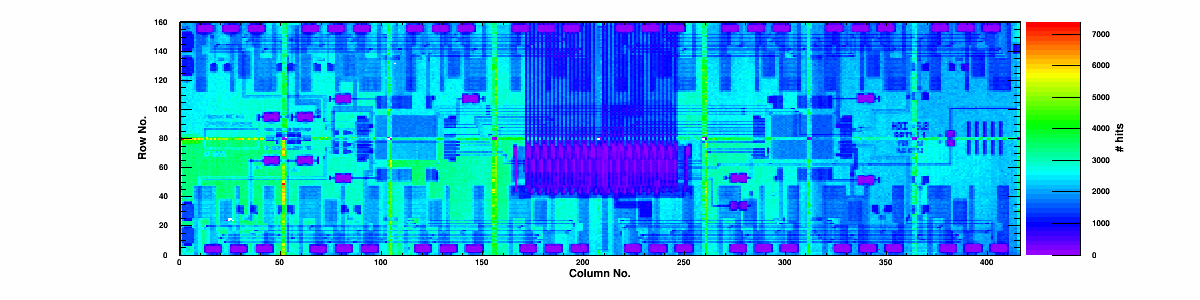

M1034 XRayHRQualification
Summary
| Module | Module | M1034 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 6 | |
| BumpBondingDefects | Bump Bonding Defects | 1 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 5 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.55 | % |

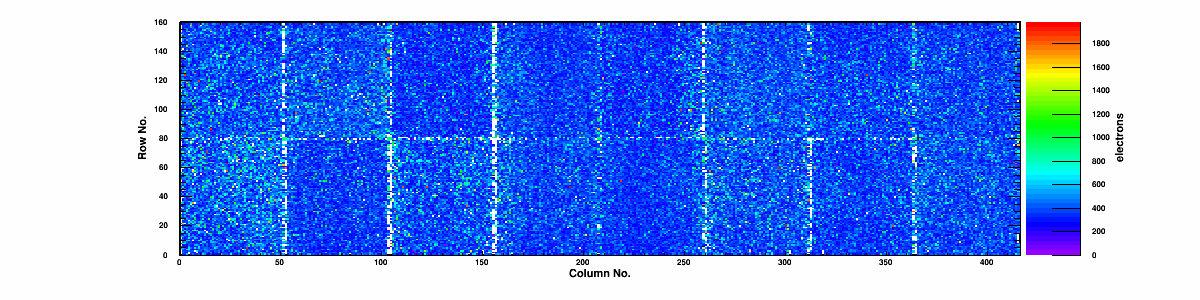

| Noise | Mean Noise | 392 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.81 | 99.51 | 0.25 | 218.8 | 0 | 73.5 | 0/0 | 0 | 3621 | 387 | 1540 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 99.51 | 0.26 | 214.9 | 0 | 71.9 | 0/0 | 0 | 3606 | 383 | 1521 |
|
Chip 2
|
A
|
0 | 0 | 99.83 | 99.54 | 0.28 | 248.0 | 0 | 81.8 | 0/0 | 0 | 3492 | 408 | 1897 |
|
Chip 3
|
A
|
0 | 0 | 99.84 | 99.60 | 0.27 | 185.4 | 0 | 62.1 | 0/0 | 0 | 3640 | 366 | 1303 |
|
Chip 4
|
A
|
0 | 0 | 99.84 | 99.64 | 0.19 | 197.8 | 0 | 65.3 | 0/0 | 0 | 3640 | 379 | 1443 |
|
Chip 5
|
A
|
1 | 0 | 99.84 | 99.58 | 0.29 | 247.2 | 1 | 83.8 | 0/0 | 0 | 3628 | 362 | 1208 |
|
Chip 6
|
A
|
0 | 0 | 99.78 | 99.48 | 0.4 | 254.2 | 0 | 86.2 | 0/0 | 0 | 3517 | 415 | 2021 |
|
Chip 7
|
A
|
0 | 0 | 99.79 | 99.53 | 0.34 | 269.8 | 0 | 90.9 | 0/0 | 0 | 3583 | 406 | 1816 |
|
Chip 8
|
A
|
5 | 0 | 99.78 | 99.43 | 0.51 | 346.8 | 0 | 115.5 | 0/0 | 0 | 3553 | 435 | 2248 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.59 | 0.32 | 275.3 | 0 | 92.3 | 0/0 | 0 | 3629 | 372 | 1354 |
|
Chip 10
|
A
|
0 | 0 | 99.81 | 99.52 | 0.42 | 317.0 | 0 | 104.6 | 0/0 | 0 | 3604 | 406 | 1849 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.57 | 0.22 | 210.4 | 0 | 70.0 | 0/0 | 0 | 3565 | 391 | 1634 |
|
Chip 12
|
A
|
0 | 0 | 99.82 | 99.49 | 0.29 | 166.6 | 0 | 56.1 | 0/0 | 0 | 3592 | 369 | 1292 |
|
Chip 13
|
A
|
0 | 0 | 99.82 | 99.61 | 0.32 | 278.6 | 0 | 91.5 | 0/0 | 0 | 3560 | 410 | 1931 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.59 | 0.24 | 225.9 | 0 | 75.1 | 0/0 | 0 | 3601 | 379 | 1464 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 99.60 | 0.3 | 249.6 | 0 | 80.3 | 0/0 | 0 | 3566 | 401 | 1759 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-14 | |
| TestTime | Test Time | 15:30 | |
| TestDuration | Duration | 0:38:16 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 13 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
v1.1.1-1-g54fa876 on branch master
