Test Date: 2016-10-26 10:19
Analysis date: 2016-10-26 11:35
Analysis date: 2016-10-26 11:35
M1031 XRayHRQualification
Summary
| Module | Module | M1031 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 10 | |
| BumpBondingDefects | Bump Bonding Defects | 6 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 2 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.59 | % |
| Noise | Mean Noise | 309 | e- |

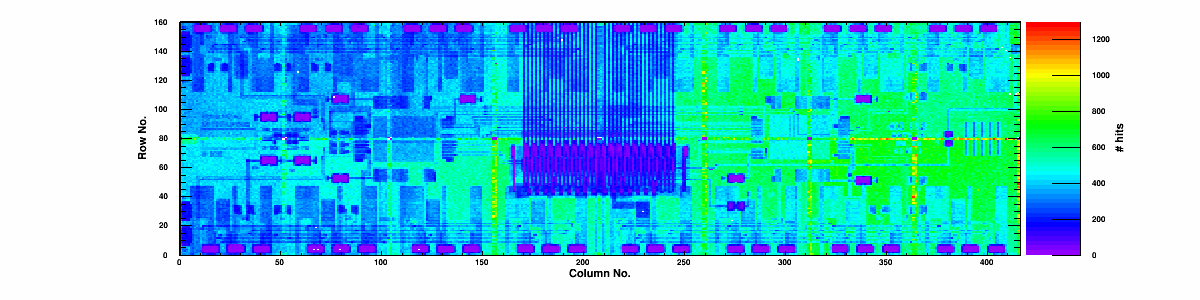

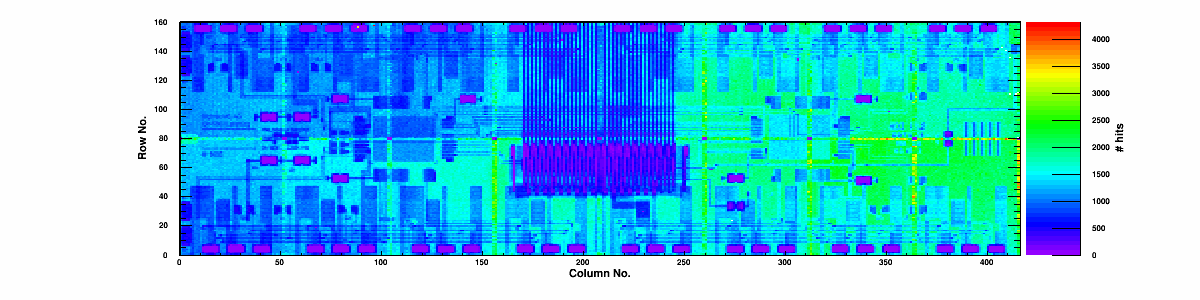

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
5 | 0 | 99.80 | 99.53 | 0.32 | 62.0 | 191.4 | 6 | 0/0 | 0 | 3822 | 307 | 487 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 99.62 | 0.34 | 61.4 | 190.9 | 0 | 0/0 | 0 | 3788 | 319 | 660 |
|
Chip 2
|
A
|
2 | 0 | 99.83 | 99.60 | 0.29 | 63.1 | 194.6 | 0 | 0/0 | 0 | 3779 | 323 | 702 |
|
Chip 3
|
A
|
0 | 0 | 99.82 | 99.61 | 0.21 | 42.9 | 129.7 | 0 | 0/0 | 0 | 3873 | 278 | 249 |
|
Chip 4
|
A
|
0 | 0 | 99.76 | 99.55 | 0.24 | 38.7 | 116.7 | 0 | 0/0 | 0 | 3834 | 299 | 416 |
|
Chip 5
|
A
|
0 | 0 | 99.83 | 99.59 | 0.17 | 40.1 | 122.9 | 0 | 0/0 | 0 | 3876 | 290 | 295 |
|
Chip 6
|
A
|
0 | 0 | 99.81 | 99.59 | 0.21 | 37.7 | 115.3 | 0 | 0/0 | 0 | 3851 | 274 | 186 |
|
Chip 7
|
A
|
0 | 0 | 99.82 | 99.72 | 0.18 | 40.1 | 123.5 | 0 | 0/0 | 0 | 3867 | 296 | 363 |
|
Chip 8
|
A
|
0 | 0 | 99.83 | 99.78 | 0.22 | 42.3 | 128.8 | 0 | 0/0 | 0 | 3834 | 309 | 528 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.56 | 0.3 | 44.5 | 136.2 | 0 | 0/0 | 0 | 3802 | 325 | 721 |
|
Chip 10
|
A
|
0 | 0 | 99.81 | 99.59 | 0.28 | 53.1 | 161.6 | 0 | 0/0 | 0 | 3542 | 327 | 716 |
|
Chip 11
|
A
|
0 | 0 | 99.81 | 99.46 | 0.2 | 42.1 | 127.4 | 0 | 0/0 | 0 | 3877 | 319 | 633 |
|
Chip 12
|
A
|
0 | 0 | 99.82 | 99.57 | 0.25 | 40.4 | 122.2 | 0 | 0/0 | 0 | 3883 | 300 | 416 |
|
Chip 13
|
A
|
3 | 0 | 99.82 | 99.57 | 0.29 | 60.4 | 185.7 | 1 | 0/0 | 0 | 3827 | 319 | 578 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.57 | 0.34 | 68.6 | 213.4 | 0 | 0/0 | 0 | 3762 | 336 | 883 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 99.56 | 0.37 | 71.9 | 222.9 | 0 | 0/0 | 0 | 3825 | 328 | 821 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-26 | |
| TestTime | Test Time | 10:19 | |
| TestDuration | Duration | 0:58:57 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-11-g3f3decf on branch master
