Test Date: 2016-10-25 11:19
Analysis date: 2016-10-25 12:39
Analysis date: 2016-10-25 12:39
M1024 XRayHRQualification
Summary
| Module | Module | M1024 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 13/2/1 | |
| PixelDefects | Total Pixel Defects | 468 | |

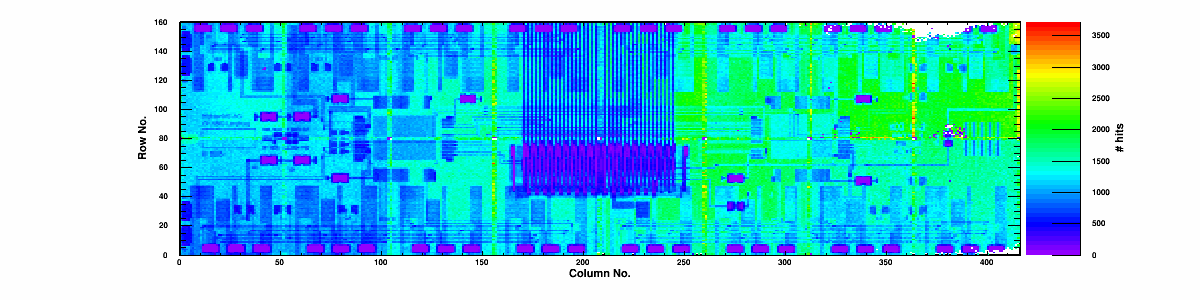

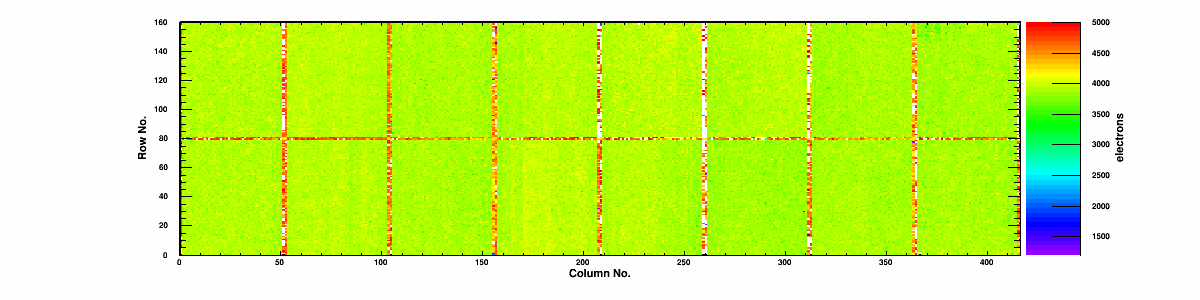

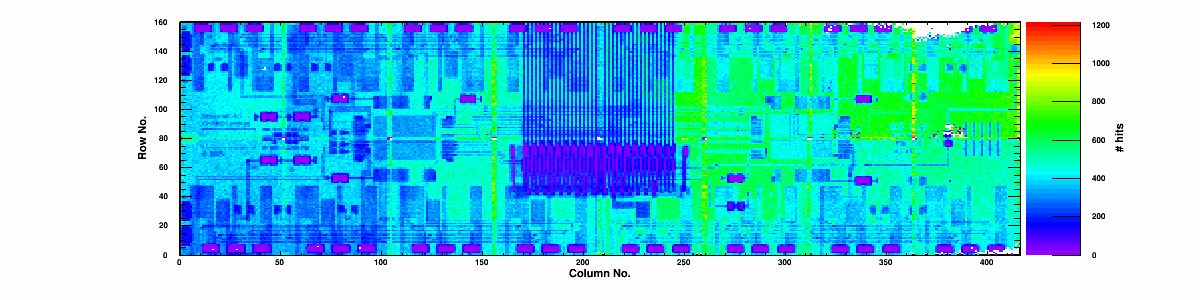

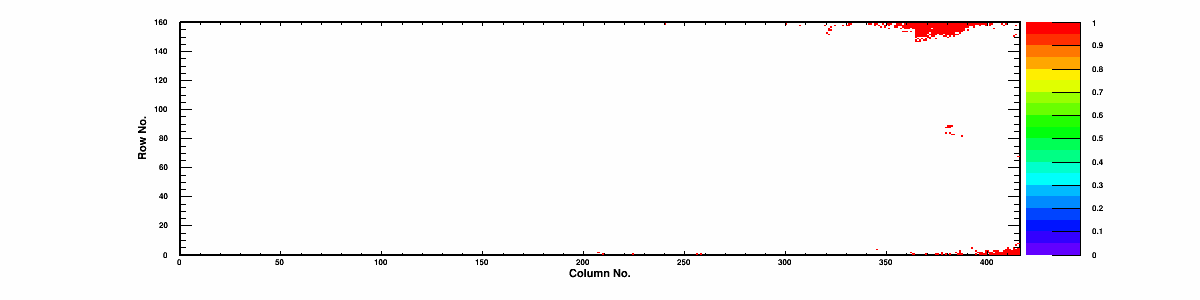

| BumpBondingDefects | Bump Bonding Defects | 465 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.51 | % |
| Noise | Mean Noise | 309 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
C
|
288 | 0 | 99.82 | 99.59 | 0.29 | 67.4 | 208.5 | 302 | 0/0 | 0 | 3820 | 316 | 605 |
|
Chip 1
|
B
|
84 | 0 | 99.83 | 99.58 | 0.26 | 65.0 | 202.1 | 89 | 0/0 | 0 | 3859 | 317 | 645 |
|
Chip 2
|
A
|
7 | 0 | 99.83 | 99.57 | 0.29 | 59.7 | 183.5 | 8 | 0/0 | 0 | 3864 | 314 | 595 |
|
Chip 3
|
A
|
8 | 0 | 99.82 | 99.59 | 0.24 | 48.6 | 147.1 | 8 | 0/0 | 0 | 3868 | 306 | 507 |
|
Chip 4
|
A
|
0 | 0 | 99.83 | 99.68 | 0.22 | 39.8 | 120.3 | 0 | 0/0 | 0 | 3644 | 296 | 377 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.53 | 0.26 | 47.9 | 147.8 | 0 | 0/0 | 0 | 3892 | 296 | 376 |
|
Chip 6
|
A
|
0 | 0 | 99.84 | 99.48 | 0.18 | 38.8 | 118.6 | 0 | 0/0 | 0 | 3961 | 278 | 204 |
|
Chip 7
|
A
|
3 | 0 | 99.81 | 99.66 | 0.18 | 44.2 | 135.2 | 0 | 0/0 | 0 | 3888 | 308 | 473 |
|
Chip 8
|
A
|
0 | 0 | 99.79 | 99.63 | 0.27 | 39.1 | 119.5 | 0 | 0/0 | 0 | 3892 | 307 | 477 |
|
Chip 9
|
A
|
0 | 0 | 99.81 | 98.95 | 0.19 | 38.1 | 116.3 | 0 | 0/0 | 0 | 3932 | 309 | 461 |
|
Chip 10
|
A
|
0 | 0 | 99.81 | 99.56 | 0.24 | 48.6 | 148.0 | 0 | 0/0 | 0 | 3884 | 318 | 573 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.26 | 0.15 | 35.5 | 107.1 | 1 | 0/0 | 0 | 3948 | 287 | 336 |
|
Chip 12
|
A
|
4 | 0 | 99.79 | 99.57 | 0.33 | 41.8 | 126.3 | 4 | 0/0 | 0 | 3850 | 307 | 470 |
|
Chip 13
|
A
|
0 | 0 | 99.81 | 99.54 | 0.26 | 59.8 | 182.2 | 0 | 0/0 | 0 | 3801 | 343 | 917 |
|
Chip 14
|
A
|
2 | 0 | 99.84 | 99.53 | 0.2 | 51.1 | 156.2 | 3 | 0/0 | 0 | 3877 | 313 | 498 |
|
Chip 15
|
B
|
72 | 0 | 99.82 | 99.47 | 0.33 | 54.9 | 170.0 | 79 | 0/0 | 0 | 3830 | 333 | 808 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-25 | |
| TestTime | Test Time | 11:19 | |
| TestDuration | Duration | 0:56:41 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-11-g3f3decf on branch master
