Test Date: 2016-11-14 16:28
Analysis date: 2016-11-14 17:33
Analysis date: 2016-11-14 17:33
M1022 XRayHRQualification
Summary
| Module | Module | M1022 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 132 | |
| BumpBondingDefects | Bump Bonding Defects | 129 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 3 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.58 | % |
| Noise | Mean Noise | 336 | e- |

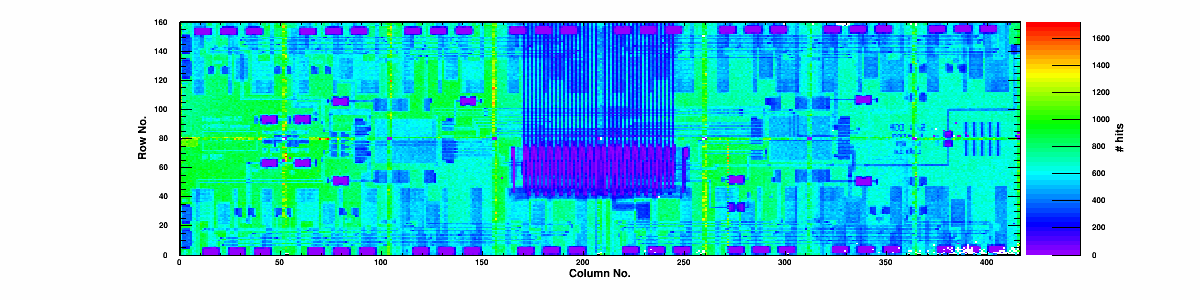

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.80 | 99.50 | 0.28 | 70.0 | 210.4 | 4 | 0/0 | 0 | 3756 | 334 | 826 |
|
Chip 1
|
A
|
22 | 0 | 99.80 | 99.65 | 0.25 | 68.5 | 206.7 | 21 | 0/0 | 0 | 3774 | 346 | 996 |
|
Chip 2
|
A
|
1 | 0 | 99.84 | 99.54 | 0.23 | 68.9 | 209.5 | 1 | 0/0 | 0 | 3839 | 345 | 1025 |
|
Chip 3
|
A
|
0 | 0 | 99.82 | 99.55 | 0.23 | 54.9 | 164.6 | 0 | 0/0 | 0 | 3844 | 318 | 633 |
|
Chip 4
|
A
|
0 | 0 | 99.83 | 99.61 | 0.26 | 55.1 | 166.5 | 1 | 0/0 | 0 | 3822 | 347 | 994 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.57 | 0.26 | 85.0 | 260.8 | 0 | 0/0 | 0 | 3771 | 349 | 1121 |
|
Chip 6
|
A
|
0 | 0 | 99.82 | 99.59 | 0.28 | 75.6 | 227.5 | 0 | 0/0 | 0 | 3777 | 345 | 973 |
|
Chip 7
|
A
|
0 | 0 | 99.80 | 99.53 | 0.34 | 84.3 | 254.9 | 0 | 0/0 | 0 | 3771 | 365 | 1271 |
|
Chip 8
|
A
|
0 | 0 | 99.84 | 99.56 | 0.41 | 89.2 | 272.1 | 0 | 0/0 | 0 | 3657 | 347 | 1085 |
|
Chip 9
|
A
|
1 | 0 | 99.80 | 99.55 | 0.45 | 81.8 | 251.2 | 2 | 0/0 | 0 | 3854 | 318 | 683 |
|
Chip 10
|
A
|
0 | 0 | 99.82 | 99.60 | 0.28 | 69.3 | 212.0 | 0 | 0/0 | 0 | 3839 | 318 | 591 |
|
Chip 11
|
A
|
0 | 0 | 99.83 | 99.61 | 0.23 | 55.5 | 170.6 | 1 | 0/0 | 0 | 3776 | 317 | 627 |
|
Chip 12
|
A
|
8 | 0 | 99.81 | 99.64 | 0.24 | 54.6 | 164.5 | 9 | 0/0 | 0 | 3809 | 333 | 840 |
|
Chip 13
|
A
|
1 | 0 | 99.81 | 99.61 | 0.24 | 79.2 | 246.4 | 1 | 0/0 | 0 | 3550 | 348 | 1077 |
|
Chip 14
|
A
|
8 | 0 | 99.79 | 99.52 | 0.23 | 64.3 | 195.9 | 8 | 0/0 | 0 | 3754 | 332 | 776 |
|
Chip 15
|
B
|
90 | 0 | 99.84 | 99.69 | 0.23 | 69.8 | 212.5 | 97 | 0/0 | 0 | 3851 | 318 | 665 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-14 | |
| TestTime | Test Time | 16:28 | |
| TestDuration | Duration | 0:59:10 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
v1.1.1-1-g54fa876 on branch master
