Test Date: 2016-10-24 15:14
Analysis date: 2016-10-24 20:34
Analysis date: 2016-10-24 20:34
M1011 XRayHRQualification

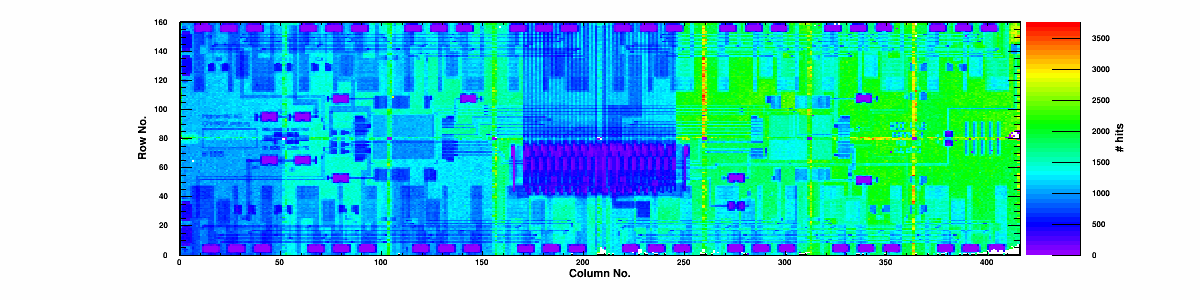

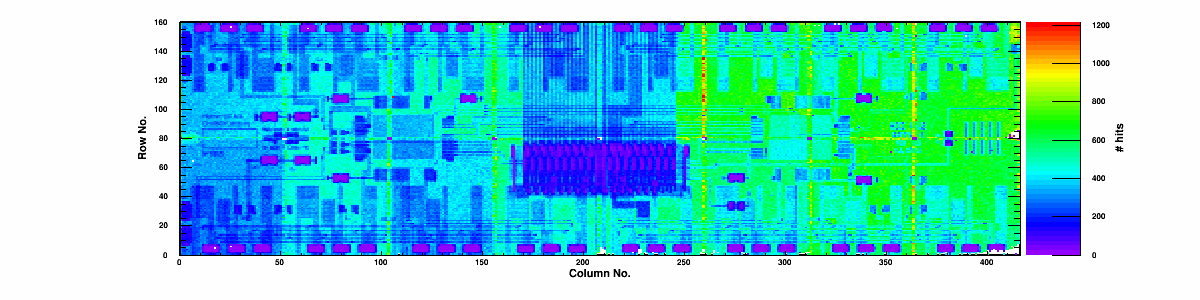

Summary
| Module | Module | M1011 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 126 | |
| BumpBondingDefects | Bump Bonding Defects | 123 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.81/99.58 | % |
| Noise | Mean Noise | 324 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
7 | 0 | 99.79 | 99.50 | 0.29 | 224.8 | 14 | 72.3 | 0/0 | 0 | 3794 | 311 | 558 |
|
Chip 1
|
A
|
5 | 0 | 99.83 | 99.58 | 0.33 | 211.0 | 4 | 68.3 | 0/0 | 0 | 3805 | 341 | 950 |
|
Chip 2
|
A
|
0 | 0 | 99.83 | 99.58 | 0.34 | 217.9 | 0 | 69.5 | 0/0 | 0 | 3736 | 342 | 937 |
|
Chip 3
|
A
|
0 | 0 | 99.82 | 99.59 | 0.21 | 147.7 | 0 | 48.6 | 0/0 | 0 | 3884 | 312 | 537 |
|
Chip 4
|
A
|
1 | 0 | 99.82 | 99.47 | 0.26 | 128.1 | 0 | 42.2 | 0/0 | 0 | 3827 | 338 | 884 |
|
Chip 5
|
A
|
0 | 0 | 99.79 | 99.64 | 0.3 | 154.8 | 0 | 50.5 | 0/0 | 0 | 3589 | 328 | 793 |
|
Chip 6
|
A
|
0 | 0 | 99.80 | 99.55 | 0.18 | 134.8 | 0 | 43.2 | 0/0 | 0 | 3884 | 333 | 793 |
|
Chip 7
|
A
|
0 | 0 | 99.81 | 99.60 | 0.21 | 122.6 | 0 | 39.6 | 0/0 | 0 | 3931 | 291 | 280 |
|
Chip 8
|
A
|
1 | 0 | 99.79 | 99.66 | 0.24 | 106.1 | 1 | 34.5 | 0/0 | 0 | 3941 | 307 | 494 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.67 | 0.23 | 139.9 | 0 | 45.7 | 0/0 | 0 | 3851 | 345 | 1024 |
|
Chip 10
|
A
|
1 | 0 | 99.82 | 99.38 | 0.22 | 126.7 | 0 | 41.1 | 0/0 | 0 | 3944 | 309 | 471 |
|
Chip 11
|
A
|
1 | 0 | 99.79 | 99.65 | 0.3 | 118.3 | 2 | 38.4 | 0/0 | 0 | 3896 | 309 | 531 |
|
Chip 12
|
A
|
26 | 0 | 99.83 | 99.60 | 0.13 | 119.0 | 34 | 39.2 | 0/0 | 0 | 3903 | 308 | 551 |
|
Chip 13
|
A
|
13 | 0 | 99.82 | 99.65 | 0.23 | 177.5 | 15 | 57.1 | 0/0 | 0 | 3841 | 299 | 389 |
|
Chip 14
|
A
|
4 | 0 | 99.81 | 99.54 | 0.3 | 211.1 | 4 | 67.9 | 0/0 | 0 | 3751 | 358 | 1159 |
|
Chip 15
|
B
|
67 | 0 | 99.81 | 99.57 | 0.38 | 213.6 | 75 | 67.8 | 0/0 | 0 | 3739 | 358 | 1207 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-24 | |
| TestTime | Test Time | 15:14 | |
| TestDuration | Duration | 1:3:41 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 1 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-11-g3f3decf on branch master
