Test Date: 2016-10-24 16:23
Analysis date: 2016-10-24 20:22
Analysis date: 2016-10-24 20:22
M1008 XRayHRQualification
Summary
| Module | Module | M1008 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 7 | |
| BumpBondingDefects | Bump Bonding Defects | 7 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.56 | % |

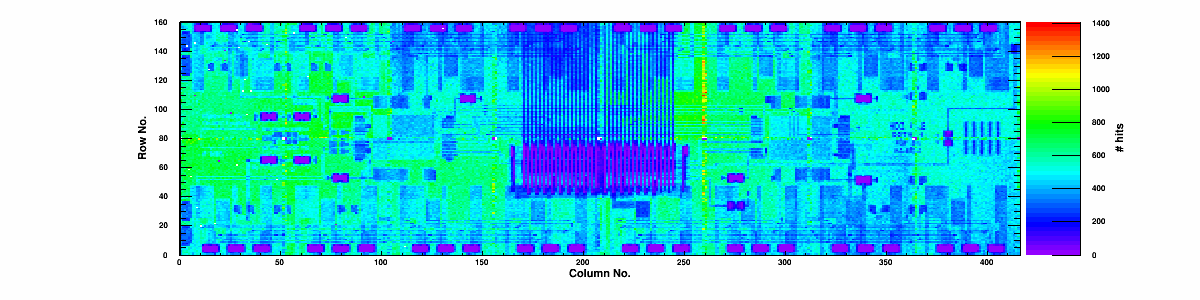

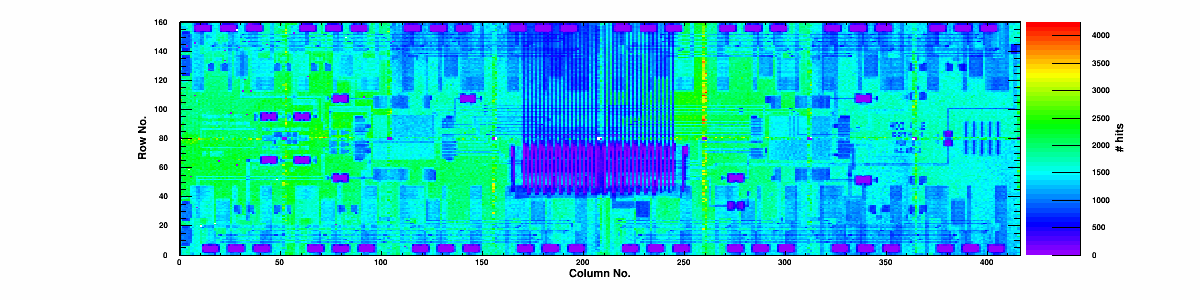

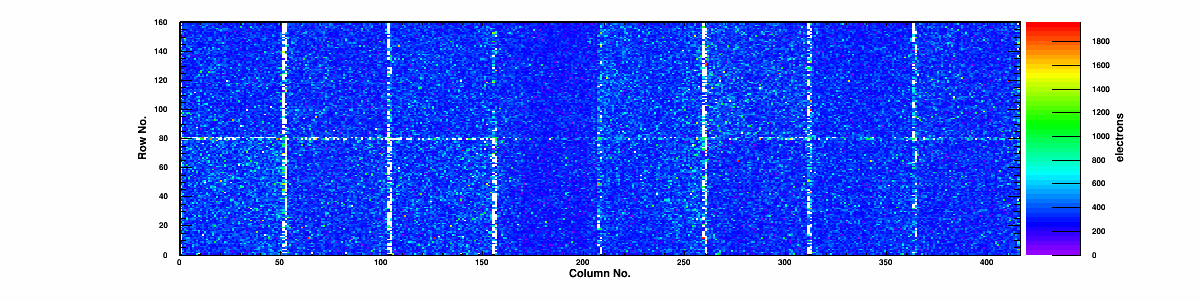

| Noise | Mean Noise | 343 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.83 | 99.62 | 0.21 | 167.5 | 1 | 53.7 | 0/0 | 0 | 3848 | 339 | 923 |
|
Chip 1
|
A
|
0 | 0 | 99.81 | 99.58 | 0.21 | 163.8 | 0 | 53.1 | 0/0 | 0 | 3820 | 327 | 714 |
|
Chip 2
|
A
|
0 | 0 | 99.82 | 99.53 | 0.26 | 203.4 | 0 | 66.3 | 0/0 | 0 | 3752 | 366 | 1322 |
|
Chip 3
|
A
|
0 | 0 | 99.79 | 99.51 | 0.25 | 173.7 | 0 | 57.3 | 0/0 | 0 | 3771 | 364 | 1251 |
|
Chip 4
|
A
|
0 | 0 | 99.81 | 99.58 | 0.19 | 126.9 | 0 | 41.7 | 0/0 | 0 | 3886 | 310 | 526 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.56 | 0.22 | 164.4 | 0 | 52.5 | 0/0 | 0 | 3820 | 346 | 1019 |
|
Chip 6
|
A
|
1 | 0 | 99.81 | 99.59 | 0.26 | 211.3 | 1 | 68.2 | 0/0 | 0 | 3807 | 340 | 917 |
|
Chip 7
|
A
|
1 | 0 | 99.83 | 99.59 | 0.43 | 203.5 | 1 | 65.6 | 0/0 | 0 | 3522 | 340 | 905 |
|
Chip 8
|
A
|
4 | 0 | 99.81 | 99.49 | 0.41 | 213.8 | 4 | 68.5 | 0/0 | 0 | 3747 | 378 | 1427 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.56 | 0.31 | 205.4 | 0 | 64.8 | 0/0 | 0 | 3509 | 349 | 1028 |
|
Chip 10
|
A
|
0 | 0 | 99.82 | 99.53 | 0.41 | 204.9 | 0 | 65.7 | 0/0 | 0 | 3730 | 361 | 1244 |
|
Chip 11
|
A
|
0 | 0 | 99.82 | 99.53 | 0.23 | 131.2 | 0 | 42.9 | 0/0 | 0 | 3848 | 309 | 553 |
|
Chip 12
|
A
|
0 | 0 | 99.82 | 99.58 | 0.24 | 142.2 | 0 | 46.0 | 0/0 | 0 | 3806 | 355 | 1142 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.55 | 0.28 | 186.9 | 0 | 59.4 | 0/0 | 0 | 3795 | 336 | 875 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.56 | 0.2 | 157.3 | 0 | 50.9 | 0/0 | 0 | 3825 | 340 | 886 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 99.56 | 0.23 | 169.5 | 0 | 54.6 | 0/0 | 0 | 3628 | 332 | 817 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-24 | |
| TestTime | Test Time | 16:23 | |
| TestDuration | Duration | 0:36:34 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 14 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.5-11-g3f3decf on branch master
