Test Date: 2016-04-25 14:49
Analysis date: 2016-04-25 16:38
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
45.61925 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
45.61925 |
|
| medianSlope |
median Slope |
45.4765 |
|
| minSlope |
min Slope |
41.795 |
|
| maxSlope |
max Slope |
49.946 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-21.330125 |
|
| medianOffset |
median Offset |
-2.831 |
|
| minOffset |
min Offset |
-306.971 |
|
| maxOffset |
max Offset |
196.966 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
1.713625 |
|
| medianchi2 |
median chi2 |
1.314 |
|
| minchi2 |
min chi2 |
0.118 |
|
| maxchi2 |
max chi2 |
7.772 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
46.2 e- / Vcal
|
0.2 e- / Vcal
|
81.4 e-
|
21.6 e-
|
|
1
|
45.0 e- / Vcal
|
0.1 e- / Vcal
|
-8.4 e-
|
8.6 e-
|
|
2
|
45.9 e- / Vcal
|
0.1 e- / Vcal
|
116.3 e-
|
9.9 e-
|
|
3
|
45.8 e- / Vcal
|
0.1 e- / Vcal
|
-30.6 e-
|
17.8 e-
|
|
4
|
43.2 e- / Vcal
|
0.1 e- / Vcal
|
197.0 e-
|
16.5 e-
|
|
5
|
49.9 e- / Vcal
|
0.1 e- / Vcal
|
-157.6 e-
|
6.7 e-
|
|
6
|
45.2 e- / Vcal
|
0.1 e- / Vcal
|
62.0 e-
|
8.7 e-
|
|
7
|
46.8 e- / Vcal
|
0.1 e- / Vcal
|
-201.6 e-
|
6.5 e-
|
|
8
|
41.8 e- / Vcal
|
0.1 e- / Vcal
|
2.7 e-
|
18.2 e-
|
|
9
|
43.9 e- / Vcal
|
0.1 e- / Vcal
|
66.4 e-
|
7.8 e-
|
|
10
|
44.7 e- / Vcal
|
0.1 e- / Vcal
|
84.0 e-
|
17.5 e-
|
|
11
|
46.8 e- / Vcal
|
0.1 e- / Vcal
|
-18.5 e-
|
17.1 e-
|
|
12
|
49.9 e- / Vcal
|
0.1 e- / Vcal
|
-150.3 e-
|
6.7 e-
|
|
13
|
47.1 e- / Vcal
|
0.1 e- / Vcal
|
-307.0 e-
|
10.5 e-
|
|
14
|
44.3 e- / Vcal
|
0.2 e- / Vcal
|
-82.9 e-
|
19.6 e-
|
|
15
|
43.6 e- / Vcal
|
0.1 e- / Vcal
|
5.7 e-
|
8.6 e-
|
|
Average
|
45.6 e- / Vcal
|
|
-21.3 e-
|
|
|
Median
|
88.6 e- / Vcal
|
|
-198.9 e-
|
|
Overview

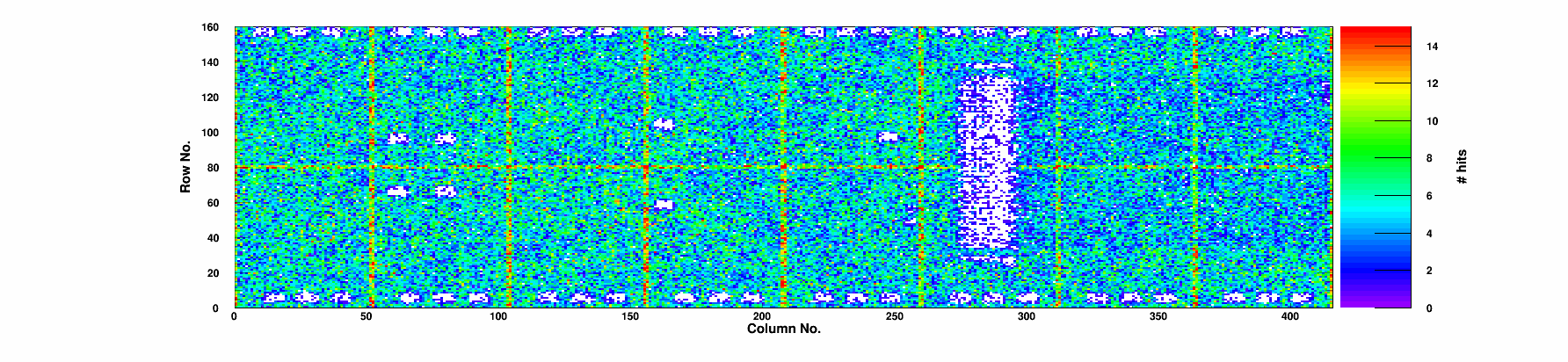

Xray Module Spectrum - Zn
Overview

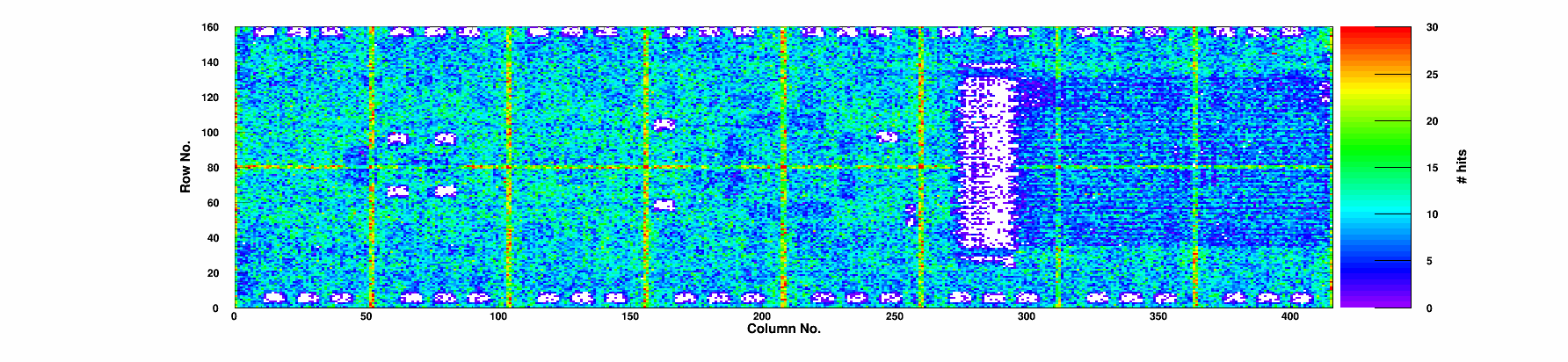

Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview
Hits distribution Zn inner/edge/corner
Hits distribution Mo inner/edge/corner
Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
