Test Date: 2015-11-04 10:51
Analysis date: 2015-11-23 15:53
Analysis date: 2015-11-23 15:53
M3512 XRayHRQualification
Summary
| Module | Module | M3512 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 0 | |

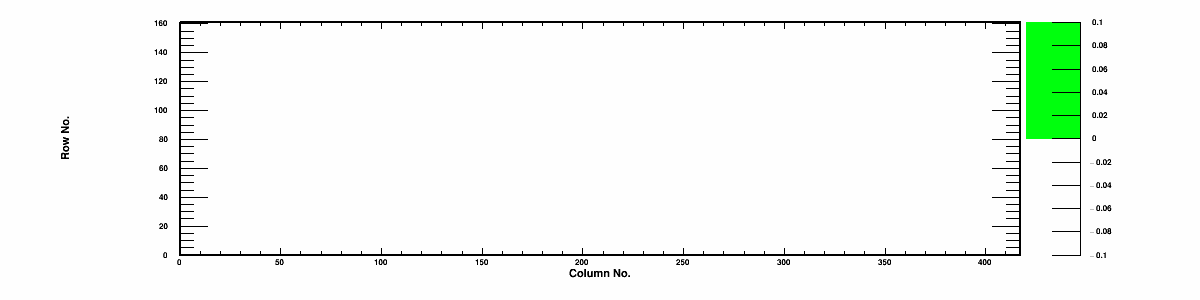

| BumpBondingDefects | Bump Bonding Defects | 0 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

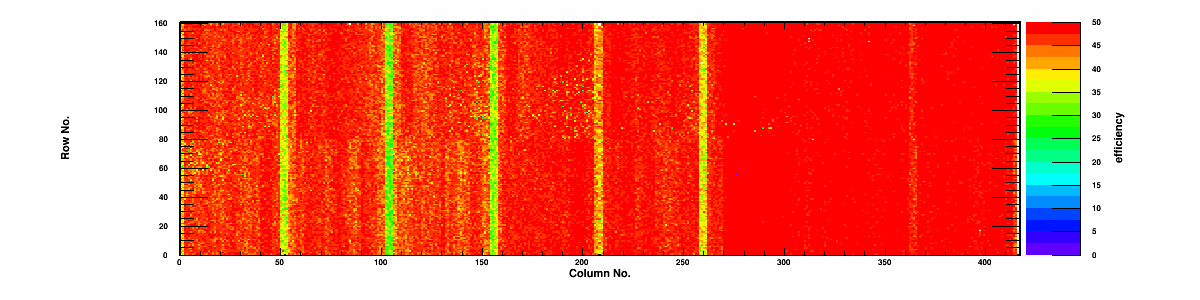

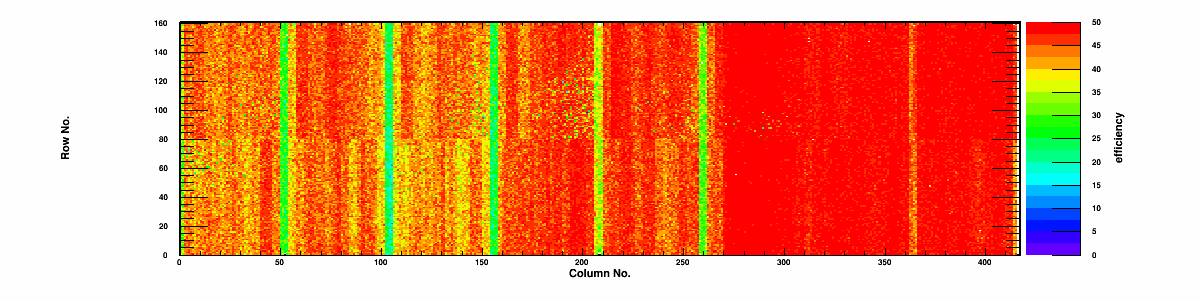

| Efficiency | Efficiency 50/120 | 99.83/99.14 | % |

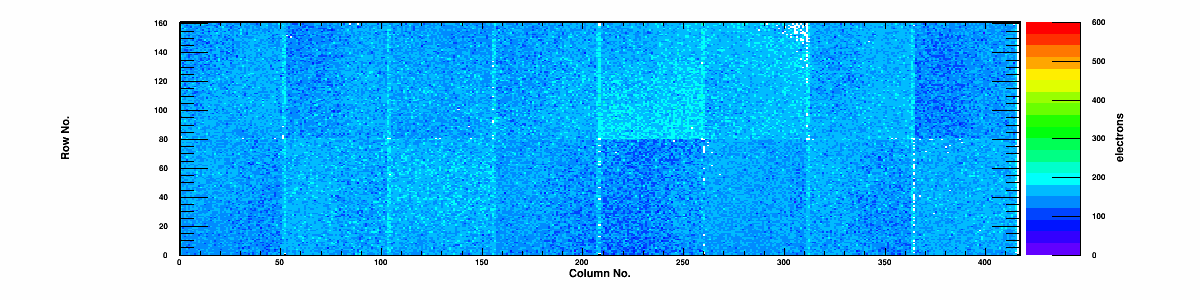

| Noise | Mean Noise | 152 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.82 | 98.85 | 5.21 | 28.7 | 85.3 | 0 | 0/0 | 0 | 5950 | 140 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.81 | 98.93 | 5.62 | 33.0 | 98.9 | 0 | 0/0 | 0 | 6174 | 156 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.70 | 99.01 | 6.52 | 31.0 | 93.4 | 0 | 0/0 | 0 | 6268 | 166 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.24 | 0.81 | 55.4 | 158.6 | 0 | 0/0 | 0 | 6059 | 169 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.07 | 5.32 | 59.0 | 168.3 | 0 | 0/0 | 0 | 5911 | 152 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.18 | 2.29 | 71.1 | 199.7 | 0 | 0/0 | 0 | 6367 | 150 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.30 | 0.60 | 67.0 | 188.2 | 0 | 0/0 | 0 | 5899 | 148 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.26 | 1.13 | 68.3 | 190.6 | 0 | 0/0 | 0 | 6119 | 152 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.28 | 0.70 | 70.5 | 197.9 | 0 | 0/0 | 0 | 6096 | 146 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.83 | 99.23 | 0.40 | 70.1 | 197.8 | 0 | 0/0 | 0 | 6028 | 156 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.83 | 99.32 | 0.34 | 76.5 | 214.8 | 0 | 0/0 | 0 | 6222 | 160 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.86 | 99.26 | 0.51 | 57.3 | 163.9 | 0 | 0/0 | 0 | 6031 | 145 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.84 | 99.21 | 0.64 | 57.8 | 167.1 | 0 | 0/0 | 0 | 6361 | 137 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.80 | 99.01 | 4.31 | 31.9 | 95.8 | 0 | 0/0 | 0 | 6341 | 149 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 99.12 | 1.23 | 34.5 | 102.2 | 0 | 0/0 | 0 | 5949 | 149 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 98.95 | 0.95 | 36.0 | 106.1 | 0 | 0/0 | 0 | 6523 | 155 | 0 |
Errors
| nCriticals | # Criticals | 43 | |
| nErrors | # Errors | 3323 | |
| nWarnings | # Warnings | 66 | |
| channel_0_count | Channel 0 | 435 | |
| channel_1_count | Channel 1 | 376 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 429 | |
| message_eventid_count | Event ID mismatch | 125 | |
| message_readback_count | Readback start marker | 66 | |
| message_notokenpass_count | has NoTokenPass | 191 | |
| message_datasize_count | Data size criticals | 36 | |
| message_missingevents_count | Missing Event criticals | 7 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
