Test Date: 2015-09-09 14:03
Analysis date: 2015-11-23 17:24
M4553 XRayHRQualification
Chips

Overview

Summary
Module Module M4553
Grade Grade A
ManualGrade Manual Grade None
ROCGrades ROC Grades A/B/C 16/0/0
PixelDefects Total Pixel Defects 7
BumpBondingDefects Bump Bonding Defects 5
NoisyPixels Noisy Pixels 2
HotPixelDefects Hot Pixels 0
ROCsWithReadoutProblems ROCs with r/o problems 0
ROCsWithUniformityProblems ROCs with unif problems 0
Efficiency Efficiency 50/120 99.86/99.28 %
Noise Mean Noise 168 e-
Summary ROCs
ROC Grade Def DC Eff 50 Eff 120 Eff chi2 Rate "150" BB def Rate "50" R/O Unif. Thr [e-] "100" Noise "100" Noisy pix
Chip 0
A
 0 0 99.85 99.07 0.62 125.8 0 42.6 0/0 0 2062 165 0
Chip 1
A
 2 0 99.85 99.20 0.63 130.2 0 44.0 0/0 0 2083 172 2
Chip 2
A
 0 0 99.82 99.08 1.86 111.2 0 37.6 0/0 0 1995 175 0
Chip 3
A
 3 0 99.87 99.28 0.74 165.6 3 56.3 0/0 0 2155 154 0
Chip 4
A
 1 0 99.88 99.35 0.42 165.4 1 56.0 0/0 0 2144 157 0
Chip 5
A
 0 0 99.86 99.38 0.61 182.8 0 61.8 0/0 0 2231 171 0
Chip 6
A
 0 0 99.86 99.21 0.57 164.1 0 55.4 0/0 0 2132 161 0
Chip 7
A
 0 0 99.88 99.36 0.35 166.1 0 56.0 0/0 0 2151 164 0
Chip 8
A
 1 0 99.85 99.34 0.63 170.3 1 57.5 0/0 0 2138 176 0
Chip 9
A
 0 0 99.87 99.41 0.62 178.2 0 60.3 0/0 0 2215 182 0
Chip 10
A
 0 0 99.83 99.33 1.28 192.2 0 64.9 0/0 0 2174 171 0
Chip 11
A
 0 0 99.84 99.36 2.06 175.0 0 59.3 0/0 0 2164 165 0
Chip 12
A
 0 0 99.86 99.39 0.41 175.0 0 59.2 0/0 0 2200 175 0
Chip 13
A
 0 0 99.84 99.08 0.70 113.6 0 38.4 0/0 0 2038 157 0
Chip 14
A
 0 0 99.86 99.38 0.63 133.8 0 45.3 0/0 0 2123 171 0
Chip 15
A
 0 0 99.87 99.33 0.43 130.0 0 44.0 0/0 0 2062 164 0
Efficiency at 50 MHz/cm2
Efficiency at 120 MHz/cm2
BB defects 150
BB defects 50
Noise 100

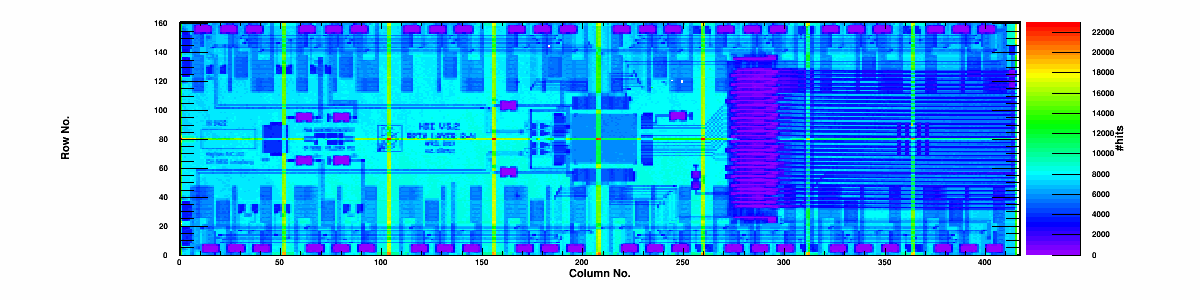

Hit Map 150
Hits distribution 150 inner/edge/corner
Hit Map 50
Hits distribution 50 inner/edge/corner

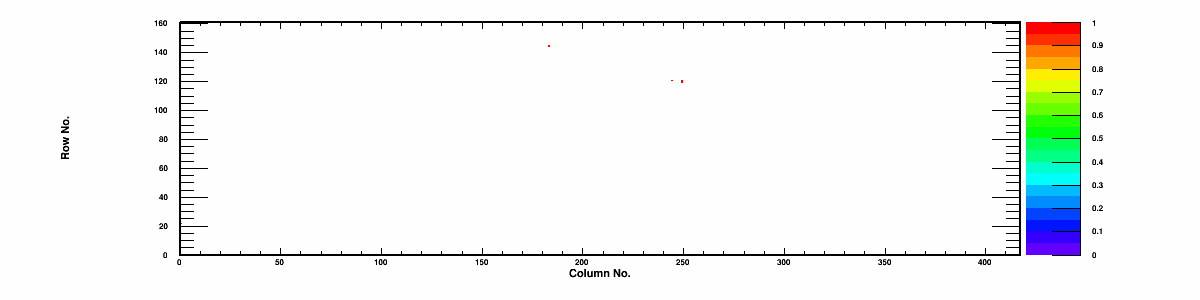

Bump Bonding Defects 150
BB defects 150
Bump Bonding Defects 50
BB defects 50

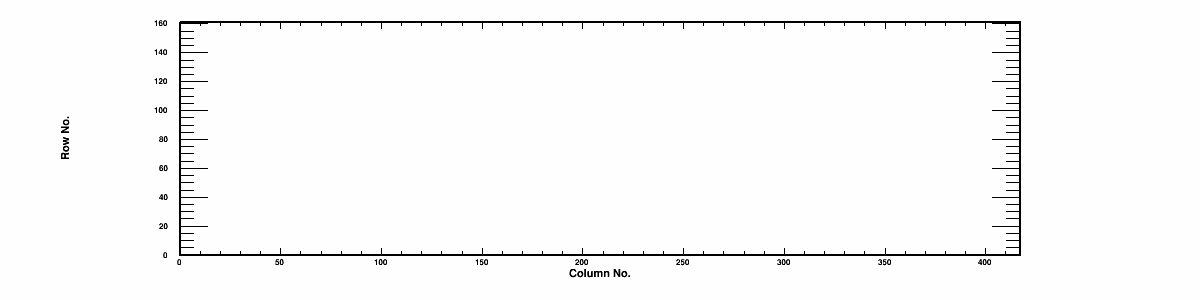

Masked Hot Pixels 150
Hot pixels 150
Masked Hot Pixels 50
Hot pixels 50

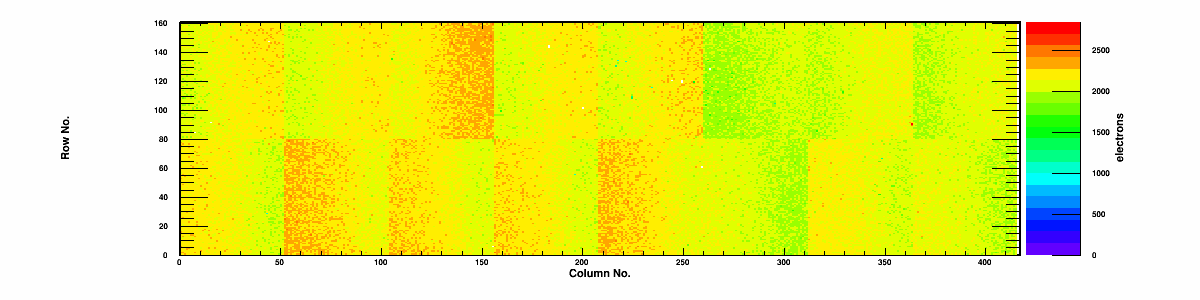

Threshold 100
Threshold distribution 100

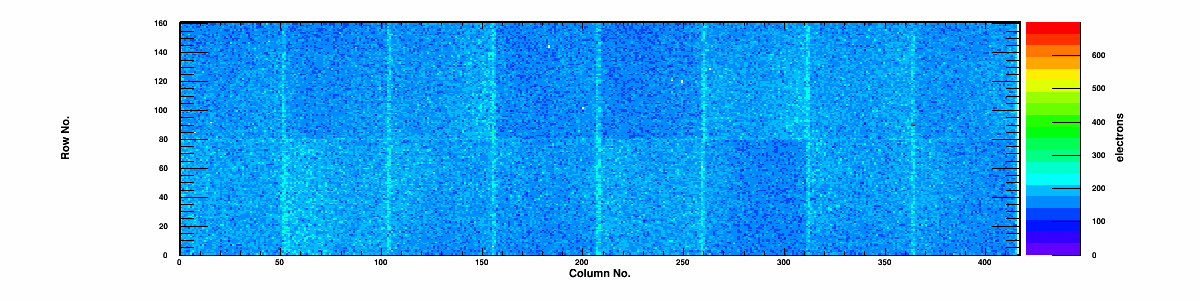

Noise 100
Noise distribution 100
Pixel Alive Map
Dead/inefficient pixels
HR Efficiency Map 50
Efficiency distribution 50
HR Efficiency Map 100
Efficiency distribution 100
HR Efficiency Map 150
Efficiency distribution 150
HR Efficiency Map 200
Efficiency distribution 200
Errors
nCriticals # Criticals 2
nErrors # Errors 73
nWarnings # Warnings 121
channel_0_count Channel 0 97
channel_1_count Channel 1 97
channel_2_count Channel 2 0
channel_3_count Channel 3 0
message_tokenchain_count Token Chain Length 38
message_eventid_count Event ID mismatch 16
message_readback_count Readback start marker 121
message_notokenpass_count has NoTokenPass 19
message_datasize_count Data size criticals 1
message_missingevents_count Missing Event criticals 1
message_usbtimeout_count USB criticals 0
message_deser400_count DESER400 failure 0
message_daqerror_count DAQ error 0
